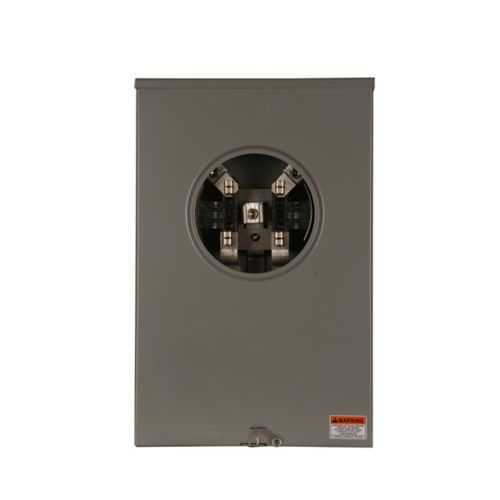

Eaton meter socket UTRS2138BCH - Industrial UL Listed
Part Number: UTRS2138BCH
Quick Summary
Eaton meter socket UTRS2138BCH provides 200A, single-phase residential service for metering installations. Contractors often wrestle with enclosure space constraints and hub tolerances, risking delays when fittings don’t align. This model addresses those challenges with a 3-5/16 in hub opening, four-jaw termination, and ringless construction for safer, faster installs. UL Listed safety certification and TX Oncor utility approval support code compliance and grid integration in TX and beyond. For installers and procurement teams, the combination of robust construction and flexible feed options translates to consistent performance, easier sourcing, and reduced project risk across residential service equipment portfolios.
Product Information
Extended Description
UTRS2138BCH Eaton: Eaton meter socket, 1-pos resi service, 200A, Over/under, 3-5/16 inch hub open, #8-350 kcmil, 4-jaw, 1-ph, (2) #8-250 MCM, Horn bypass, Gnd conn (#14-#2 Cu), Triplex, 3-wire, Ringless, 600 Vac
Product Name
Eaton meter socket
Catalog Number
UTRS2138BCH
UPC
782113684048
Product Length/Depth
4.94 in
Product Height
20 in
Product Width
13 in
Product Weight
22 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Type
Single-position residential service
Amperage Rating
200A
Feed type
Top/bottom
Number of jaws
Four-jaw
Phase
Single-phase
Utility approvals
TX : Oncor
Line
#8-350 kcmil
Load
(2) #8-250 MCM
Number of wires
Three-wire
Hub type
3-5/16 in hub opening
Security
Ringless
Voltage rating
600 V
Bypass
Horn
Number of sockets
1
Residential and Light Commercial, Metering Products, Volume 1 Tab 4
Eaton Specification Sheet - UTRS2138BCH
The UTRS2138BCH is a 200A, single-phase meter socket designed for residential service. This capability supports heavy home loads and light commercial applications with dependable performance, reducing the likelihood of nuisance trips during peak demand. Installers benefit from standard residential service equipment that aligns with common code requirements, improving bid reliability and project timelines. Precision hub and termination design: with a 3-5/16 in hub opening and four-jaw configuration, terminations are secure and repeatable. The ringless interface enhances safety by eliminating exposed rings during installation, which translates to faster service connections and lower install risk in crowded meter bays. Flexible feed options: top/bottom feed, 600 V rating, and three-wire configuration provide installation versatility for varied panel layouts. This adaptability reduces field modifications, accelerates commissioning, and supports compliance with utility and local electrical codes across residential and light commercial projects. Maintenance and reliability features: horn bypass enables safe meter changes or bypass scenarios without de-energizing downstream circuits, minimizing downtime and service interruptions. The rugged construction supports long service life in demanding environments, lowering lifecycle cost for building owners and operators. Utility and certification compatibility: UL Listed ensures recognized safety standards, while TX Oncor approval confirms grid compatibility in Texas; together they simplify procurement and enable smoother utility tie-ins. The unit accepts large conductors: line terminals rated to #8-350 kcmil and load conductors up to two runs of #8-250 MCM, enabling robust feeder design for varied loads. Form factor and dimensions: 4.94 in depth, 20 in height, 13 in width, and a 22 lb weight. These specs fit standard meter sockets in common enclosure footprints, reducing the need for custom fabrication and supporting faster site readiness.
Get a Quick Quote for a Eaton UTRS2138BCH
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTRS2138BCH?
Enquire Now
FAQs
UTRS2138BCH is designed for typical residential service enclosures with top or bottom feed, a 3-5/16 in hub opening, and a four-jaw, ringless termination. It supports three-wire service and 600 V, enabling straightforward integration into common metering bays and retrofit projects without custom fabrication.
Key specs include 200A amperage, 600 V voltage rating, single-phase operation, four-jaw termination, top/bottom feed, three-wire configuration, hub opening of 3-5/16 in, ringless security, and a single socket. Line conductors accept #8-350 kcmil while load conductors accommodate (2) #8-250 MCM, enabling robust feeder design.
Yes. The UTRS2138BCH carries TX Oncor utility approval, in addition to UL Listed certification, signaling compatibility with Texas interconnection requirements and helping streamline utility approvals during metering projects in Oncor service territory.
The meter socket is UL Listed, confirming compliance with recognized safety standards for electrical equipment. This certification reduces compliance risk, supports installer and inspector confidence, and aligns with utility and code requirements for residential service equipment installations.
Horn bypass facilitates meter changes or bypass scenarios without de-energizing downstream circuits, minimizing outage time. Ringless construction improves safety and speeds connections. Together, these features reduce maintenance downtime, shorten project timelines, and lower lifecycle costs for building owners and operators.
