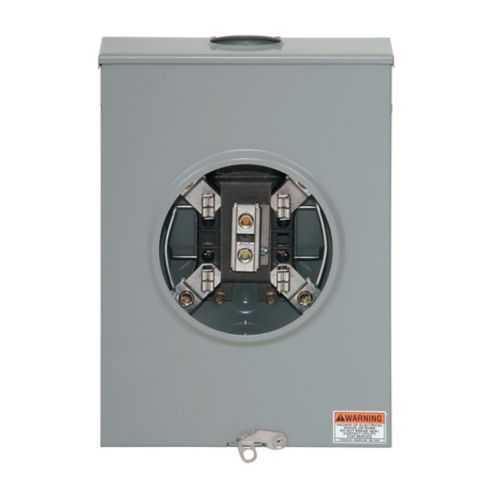

Eaton UTRS213ACH Meter Socket - 600V UL Listed, 200A
Part Number: UTRS213ACH
Quick Summary
Eaton UTRS213ACH meter socket provides a robust residential service connection for 200A, 3-wire systems. Sourcing metering equipment can cause installation delays and compatibility gaps; this unit reduces risk with bottom-feed access, a four-jaw design, and a ringless, solid-top hub. UL Listed certification underpins electrical safety, and utility approvals for Central Maine Power, Empire District Electric, and Omaha Public Power District support site acceptance across multiple service territories. The meter socket is designed for 600 V operation and compatible with #8-350 kcmil conductors, enabling simple, reliable terminations. For contractors and utilities, this translates to faster installations, fewer field errors, and a solid foundation for residential metering programs and light commercial deployments.
Product Information
Extended Description
UTRS213ACH Eaton: Eaton meter socket, 1-pos resi service, 200A, Under, Solid top, #6-350 kcmil, 4-jaw, 1-ph, #8-350 kcmil, Gnd conn (#14-#2 Cu), Triplex, 3-wire, Ringless, 600 Vac
Product Name
Eaton meter socket
Catalog Number
UTRS213ACH
UPC
782113684680
Product Length/Depth
4.36 in
Product Height
15 in
Product Width
11 in
Product Weight
22 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Type
Single-position residential service
Amperage Rating
200A
Feed type
Bottom
Number of jaws
Four-jaw
Phase
Single-phase
Utility approvals
ME : Central Maine Power MO : Empire District Electric OK : Empire District Electric NE : Omaha Public Power District
Line
#8-350 kcmil
Load
#8-350 kcmil
Number of wires
Three-wire
Hub type
Solid top
Security
Ringless
Voltage rating
600 V
Number of sockets
1
Residential and Light Commercial, Metering Products, Volume 1 Tab 4
Eaton Specification Sheet - UTRS213ACH
Feature: 200A, single-phase meter socket with bottom-feed configuration. Benefit: supports heavy residential service capacity while simplifying conductor routing and terminations, reducing delays during panel upgrades or new-build metering. Application: ideal for single-family homes and light commercial upgrades where reliable 200A service is required. Feature: Four-jaw connection compatible with #8-350 kcmil conductors. Benefit: versatile, secure terminations that minimize re-termination work and stocking of multiple interfaces. Application: streamlines field install in metering centers and service entrances where conductor diversity exists. Feature: Ringless design with a solid-top hub. Benefit: reduces corrosion exposure and simplifies installation in tight spaces, improving long-term reliability. Application: residential metering in compact installations and retrofit projects. Feature: UL Listed with regional utility approvals. Benefit: demonstrates safety compliance and field acceptance across multiple utility territories, lowering procurement risk. Application: preferred for projects in Maine, Empire District Electric regions, and Omaha Public Power District areas. Feature: Bottom-feed, 600 V rating, three-wire, triplex-ready configuration. Benefit: supports efficient, code-compliant service connections with proven performance for residential metering. Application: meets standard metering practices for 600 V single-phase services with solid grounding options.
Get a Quick Quote for a Eaton UTRS213ACH
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTRS213ACH?
Enquire Now
FAQs
The UTRS213ACH employs a bottom-feed design with four jaws and a ringless, solid-top hub, supporting #8-350 kcmil conductors. It is a 200A, single-phase, 3-wire meter socket rated for 600 V, intended for residential service entrances. Ensure alignment with local utility approvals and follow UL Listed safety guidelines during termination and grounding (#14-#2 Cu ground). Verify space in the meter base and confirm compatibility with service entrance equipment in the target jurisdiction.
Key specs include a 200A amperage rating, 600 V voltage rating, single-phase and three-wire configuration, four jaws, bottom-feed, and a solid-top hub. The device supports line/load conductors in the #8-350 kcmil range and uses a ringless design for easier maintenance. It is UL Listed and designed for residential metering with a 1-socket configuration, suitable for standard metering needs in home installations.
Yes. The UTRS213ACH is designed for three-wire, single-phase service with a triplex configuration, supporting bottom-feed and four-jaw connections. Its grounding options include copper conductors in the #14-#2 range, and the ringless, solid-top design facilitates easier installation and maintenance in typical residential metering enclosures.
The meter socket is UL Listed, providing recognized safety compliance for electrical installations. It also carries regional utility approvals (for example Central Maine Power, Empire District Electric, and Omaha Public Power District) that facilitate site acceptance across multiple service territories, improving procurement confidence and reducing commissioning delays.
By combining a robust 200A capacity, 600 V rating, and a four-jaw bottom-feed design, the UTRS213ACH minimizes installation time and field rework. UL Listed with broad utility approvals reduces compliance risk, while its compact, ringless construction lowers space costs. The result is faster installations, fewer outages due to improper terminations, and a lower total cost of ownership for residential metering programs.
