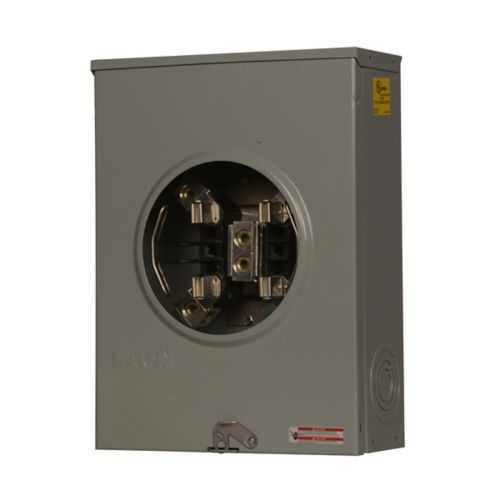

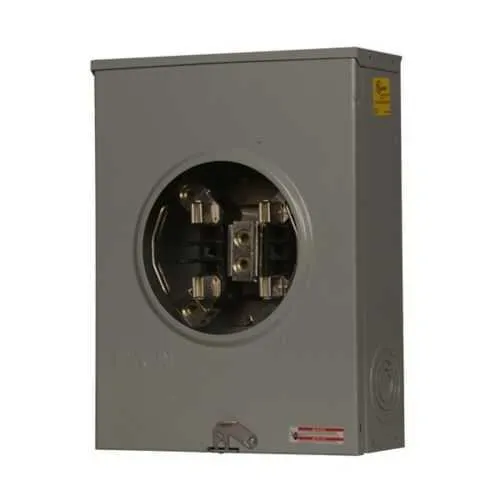

Eaton UTRS213AE Meter Socket - 200A, 600V, UL Listed
Part Number: UTRS213AE
Quick Summary
UTRS213AE meter socket provides a reliable service point for 200A residential and light-commercial power distribution. Installers often face compatibility, safety, and field-fit challenges when selecting meter enclosures. This Eaton unit is UL Listed and designed for single-phase, 3-wire service with top or bottom feed, supporting easy utility coordination. Its utility approvals across several regions help streamline site acceptance, while the solid top, four-jaw design reduces installation complexity. The ringless interface and #6-350 kcmil conductor compatibility deliver a safer, more maintainable connection with a robust 600 V rating, delivering real business value through faster installs and fewer field adjustments.
Product Information
Extended Description
UTRS213AE Eaton: Eaton meter socket, 1-pos resi service, 200A, Over/under, Solid top, #6-350 kcmil, 4-jaw, 1-ph, #6-350 kcmil, Gnd conn (#14-#2 Cu), Triplex, 3-wire, Ringless, 600 Vac
Product Name
Eaton meter socket
Catalog Number
UTRS213AE
UPC
786685326597
Product Length/Depth
4.48 in
Product Height
15.11 in
Product Width
11.22 in
Product Weight
30 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Type
Single-position residential service
Amperage Rating
200A
Feed type
Top/bottom
Number of jaws
Four-jaw
Phase
Single-phase
Utility approvals
ME : Central Maine Power MI : DTE Energy (Detroit Edison) MO : Empire District Electric OK : Empire District Electric NM : Public Service Company of New Mexico (PNM)
Line
#6-350 kcmil
Load
#6-350 kcmil
Number of wires
Three-wire
Hub type
Solid top
Security
Ringless
Voltage rating
600 V
Number of sockets
1
Eaton Specification Sheet - UTRS213AE
Selling Policy 25-000 - Distribution and Control Products and Services
Feature: 200A amperage rating → Business Impact: Supports typical residential and light-commercial service levels with headroom for demand growth, enabling safer, code-compliant interconnection. Application: Ideal for single-field deployments where utilities require structured load connections. Long-tail keywords: 200A meter socket, residential service, single-phase. Feature: 600V voltage rating → Business Impact: Ensures compatibility with building electrical systems and motor loads while maintaining safety margins under peak demand. Application: Suitable for service entrances and small commercial feeders. Feature: Four-jaw, three-wire, single-phase design → Business Impact: Provides a secure, compliant connection with easier torque control and reduced arc risk during installation. Application: Standard for residential meters with 3-wire configuration. Feature: Top/bottom feed and solid top hub → Business Impact: Installation flexibility minimizes cabinet modifications and retrofit costs. Application: Retrofit projects and new builds requiring flexible feeder routing. Feature: Ringless construction → Business Impact: Simplifiesfield wiring and enhances safety by eliminating ring connections. Application: Safer meter installations in compact enclosures. Feature: #6-350 kcmil line/load conductor range → Business Impact: Supports a wide range of feeders without field splicing, lowering labor and parts cost. Application: Large-diameter conductors for service feeders. Feature: Ground connection #14-#2 Cu → Business Impact: Ensures reliable grounding and safety compliance. Application: Critical for protective Earth continuity in service equipment. Feature: UL Listed certification → Business Impact: Accelerates procurement and utility acceptance with recognized safety standards. Application: North American installations and code compliance. Feature: Utility approvals ME/MI/MO/OK/NM → Business Impact: Streamlines site acceptance and reduces scheduling friction with multiple utility endorsements. Application: Deployment across varied utility territories and programs. Feature: Compact, ringless, four-jaw design → Business Impact: Reduces enclosure footprint and simplifies maintenance, lowering total installed cost. Application: Space-constrained installations in modern electrical rooms.
Get a Quick Quote for a Eaton UTRS213AE
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTRS213AE?
Enquire Now
FAQs
Yes. The UTRS213AE supports top or bottom feed in a single-position residential service with four-jaw connections, allowing flexible wiring approaches. It is designed for 200A service and 600V operation, accommodating #6-350 kcmil conductors. This makes retrofits and new installations straightforward while meeting standard utility requirements.
Key specs include a 200A amperage rating, 600V voltage rating, three-wire single-phase configuration, four-jaw terminals, and #6-350 kcmil line/load conductors. Grounding is facilitated with Cu ranges #14-#2. This combination supports robust performance for residential and light commercial services while ensuring safe, code-compliant interconnection.
Yes. In addition to UL Listed certification, the meter socket carries utility approvals for multiple programs, including ME, MI, MO, OK, and NM. This broad endorsement supports deployment across various utility territories, reducing project coordination time and enabling smoother site acceptance processes.
The UTRS213AE is UL Listed, reflecting compliance with recognized safety standards for electrical equipment. This certification helps ensure safe operation, facilitates procurement, and supports regulatory acceptance in North American markets, aligning with typical utility and building code requirements for meter installations.
Maintenance is straightforward given its solid-top, ringless design and durable four-jaw construction, reducing field adjustments over time. The unit’s compatibility with large conductors minimizes splicing needs, lowering labor costs. A reliable UL Listed product with broad utility approvals helps reduce commissioning delays and supports long-term total cost of ownership improvements.
