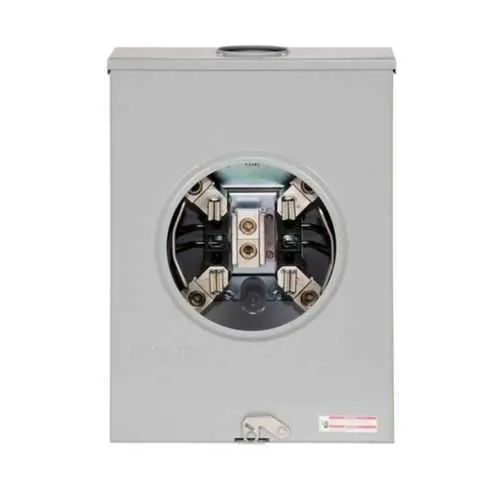

Eaton UTRS213BE Meter Socket - 200A Single-Phase, UL Listed
Part Number: UTRS213BE
Quick Summary
The Eaton UTRS213BE meter socket provides a 200 A, single‑phase residential service for reliable metering installations. It addresses field pain points by delivering a rugged four‑jaw, ringless design that accepts #6–350 kcmil conductors and features a 3‑5/16 in hub opening for versatile terminations. This UL Listed unit supports top/bottom feed and ensures dependable connections in both new construction and service upgrades. Utilities and contractors benefit from consistent jaw alignment, straightforward wiring, and a clearly documented warranty that reduces claim cycles. By combining Eaton build quality with utility approvals and industry standards, this meter socket delivers safety, compliance, and predictable performance. Secondary benefits include easier sourcing, documented installation practices, and reduced field rework.
Product Information
Extended Description
UTRS213BE Eaton: Eaton meter socket, 1-pos resi service, 200 A, Over/under, 3-5/16 inch hub open, #6-350 kcmil, 4-jaw, 1-ph, #6-350 kcmil, Gnd conn (#14-#2 Cu), Triplex, 3-wire, Ringless, 600 Vac
Product Name
Eaton meter socket
Catalog Number
UTRS213BE
UPC
786685217758
Product Length/Depth
4.48 in
Product Height
15.11 in
Product Width
11.22 in
Product Weight
14 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Type
Single-position residential service
Amperage Rating
200A
Feed type
Top/bottom
Number of jaws
Four-jaw
Phase
Single-phase
Utility approvals
ME : Central Maine Power MI : DTE Energy (Detroit Edison) MO : Empire District Electric OK : Empire District Electric AR : Entergy LA : Entergy MS : Entergy TX : Entergy TN : Knoxville Utility Board (KUB) TX : Oncor NM : Public Service Company of New Mexico (PNM) CT : United Illuminating (UI) SC : South Carolina Electric and Gas (SCE&G) NM : Texas-New Mexico Power (TNMP) TX : Texas-New Mexico Power (TNMP)
Line
#6-350 kcmil
Load
#6-350 kcmil
Number of wires
Three-wire
Hub type
3-5/16 in hub opening
Security
Ringless
Voltage rating
600 V
Number of sockets
1
Residential and Light Commercial, Metering Products, Volume 1 Tab 4
Eaton Specification Sheet - UTRS213BE
Selling Policy 25-000 - Distribution and Control Products and Services
Feature: 200 A single‑phase design and rugged enclosure support a safe, high-capacity residential service. Business Impact: minimizes overload risk and provides a clear path for future expansion while meeting code requirements. Application: ideal for new homes and service upgrades where reliable metering is critical. Feature: Top/bottom feed and 3‑5/16 in hub opening offer flexible cable routing. Business Impact: simplifies installation in tight spaces and facilitates retrofits across varied layouts. Application: metering in compact utility rooms and during service upgrades. Feature: Ringless four‑jaw design accepts #6–350 kcmil conductors. Business Impact: ensures secure, low‑resistance connections and reduces rework due to misalignment. Application: large feeder connections in residential or light commercial settings. Feature: 600 V rating with three‑wire, single‑phase configuration. Business Impact: supports safe operation within standard utility voltages and aligns with common service layouts. Application: typical residential service installations and upgrades. Feature: UL Listed certification with documented warranty and utility approvals. Business Impact: enhances compliance, reduces risk, and streamlines procurement for spec-driven projects. Application: projects requiring formal safety certification and reliable vendor support.
Get a Quick Quote for a Eaton UTRS213BE
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTRS213BE?
Enquire Now
FAQs
Yes. The UTRS213BE is a 200A, single‑phase meter socket designed for residential service and supports three‑wire configurations. It accepts conductors in the range of #6 to 350 kcmil, with top or bottom feed and a four‑jaw, ringless design for secure, code‑compliant terminations. This combination is ideal for new builds, service upgrades, and metering retrofits where reliability matters.
The unit features a 3‑5/16 in hub opening and a four‑jaw ringless configuration, which simplifies cable routing and jaw alignment. Installation benefits include faster conductor termination, reduced chance of misalignment, and cleaner field connections. Ensure conductors are within the #6–350 kcmil range and comply with local utility requirements during retrofit or new installation.
The UTRS213BE is well suited for new residential builds, service upgrades, and metering retrofits where reliability and quick installation are priorities. Its UL Listed status and utility approvals support compliance with standard metering practices, while top/bottom feed and hub compatibility facilitate versatile routing in restricted spaces or retrofit scenarios.
Eaton backs the UTRS213BE with UL Listed certification, a one‑year warranty from installation or eighteen months from shipment, whichever comes first, and documented selling policies. Additional utility approvals in the spec help ensure alignment with common regulatory frameworks. This combination reduces risk and supports efficient project handoffs and warranty processing.
The meter socket’s robust four‑jaw design, solid grounding path, and reliable top/bottom feed help reduce field rework and miswiring costs, delivering faster installations and fewer call‑backs. Over time, utilities and contractors benefit from predictable performance, streamlined procurement, and improved first‑pass installation quality, contributing to lower total cost of ownership.
