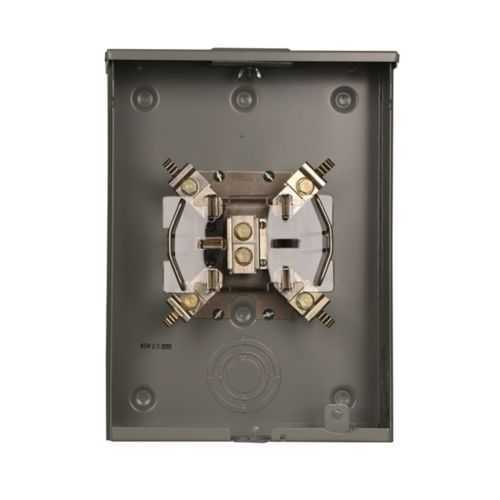

Eaton UTRS213CEPSEG Meter Socket - 200A UL Listed
Part Number: UTRS213CEPSEG
Quick Summary
The Eaton UTRS213CEPSEG meter socket is a reliable single‑phase service point designed for residential and light commercial installations. When wiring and mounting are done incorrectly, energy delivery can be delayed, code compliance becomes uncertain, and service reliability suffers. UL Listed and PSE&G approved provide confidence for inspectors and utilities, while the 200A rating supports future load growth. This solution also aligns with top/bottom feed, four‑jaw connections, and a ringless, 600 VAC design to streamline installation and minimize field adjustments. Engineers appreciate clear labeling and compatibility with common conductors (#6-350 kcmil, #8-350 kcmil) and grounding options. For procurement teams, the 16 by 12 by 5.5 inch footprint fits typical meter bases, reducing retrofit time and enabling faster commissioning.
Product Information
Extended Description
UTRS213CEPSEG Eaton: Eaton meter socket, 1-pos resi service, 200A, Over/under, 3-5/16 inch hub cover plate, #6-350 kcmil, 5-jaw, 1-ph, #8-350 kcmil, Horn bypass, Gnd conn (#14-#2 Cu), Triplex, 3-wire, Ringless, 600 Vac
Product Name
Eaton meter socket
Catalog Number
UTRS213CEPSEG
UPC
786685018294
Product Length/Depth
16 in
Product Height
5.5 in
Product Width
12 in
Product Weight
15 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Catalog Notes
PSE&G approved
Type
Single-position residential service
Amperage Rating
200A
Feed type
Top/bottom
Number of jaws
Four-jaw
Phase
Single-phase
Line
#8-350 kcmil
Load
#8-350 kcmil
Number of wires
Three-wire
Hub type
3-5/16 in hub cover plate
Security
Ringless
Voltage rating
600 V
Number of sockets
1
Feature: Single-position residential service design enables a compact meter connection that minimizes enclosure space and simplifies field routing. Business Impact: Reduces cabinet footprint and crew time on retrofit projects, improving overall project timelines. Application: Ideal for new homes and light commercial panels where a straightforward, one-meter interface is required. Feature: 200A rating with 600 VAC operation provides headroom for demanding loads and future expansion. Business Impact: Supports HVAC, electric water heating, and other high‑demand loads while maintaining code compliance. Application: Suitable for main service entrances feeding diverse loads in residential and small commercial settings. Feature: Four-jaw connection for large conductors (#8-350 kcmil and #6-350 kcmil). Business Impact: Delivers a secure, low‑impedance connection that resists loosening during vibration and cycling. Application: Triplex or standard residential service feeders with three‑wire configurations. Feature: Top/bottom feed compatibility offers installation flexibility in tight enclosures. Business Impact: Reduces routing constraints, speeds up installation, and lowers labor costs. Application: Works in a variety of meter bases and panel arrangements. Feature: Ringless design with a 3-5/16 inch hub cover plate streamlines meter exchanges and minimizes field modifications. Business Impact: Improves service mobility and reduces downtime during maintenance. Application: Utility and contractor environments where fast meter swaps are common. Feature: Grounding and bypass options including horn bypass and #14-#2 Cu ground connection enhance safety and reliability. Business Impact: Improves fault clearance and grounding integrity for 600 VAC systems. Application: Essential for regulated installations and dependable service in harsh environments. Feature: Certifications and approvals such as UL Listed and PSE&G approved reinforce code compliance and smoother approvals. Business Impact: Reduces install risk and accelerates project approvals. Application: Required for regulated, utility-managed deployments and new builds.
Get a Quick Quote for a Eaton UTRS213CEPSEG
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTRS213CEPSEG?
Enquire Now
FAQs
The UTRS213CEPSEG is designed for single‑phase residential service entrances and light commercial applications. It supports top/bottom feed, a four‑jaw connection for large conductors, and a ringless design for quick meter exchanges, making it ideal for new builds and retrofit projects where space and labor efficiency matter.
Key specs include a 200A amperage rating, 600 VAC maximum voltage, 3‑wire service, and four‑jaw connections suitable for #6-350 kcmil line and load conductors, with grounding options in the #14-#2 Cu range. This combination supports reliable service delivery and future load growth.
Yes. The meter socket is UL Listed and PSE&G approved, providing recognized quality and utility compliance. These certifications help streamline inspections and utility approvals, reducing project delays and ensuring alignment with code requirements.
It supports a three‑wire configuration with top/bottom feed and a ground connection suitable for #14-#2 Cu. The four‑jaw design accommodates large conductors up to #6-350 kcmil on line and load, enabling robust, low‑impedance connections for safe operation.
The ringless design and standardized hub plate simplify meter exchanges and reduce field modification time, lowering maintenance labor. Its compact footprint and UL/PSE&G certifications also help accelerate project approvals, potentially shortening installation cycles and delivering faster return on investment.
