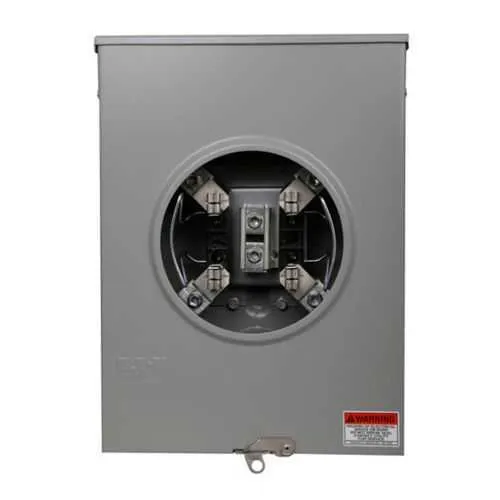

Eaton UTRS213CFLCH Meter Socket - UL Listed
Part Number: UTRS213CFLCH
Quick Summary
Eaton UTRS213CFLCH meter socket enables a reliable, single-position residential service connection for metering equipment. Contractors often struggle with misalignment, limited compatibility, and safety concerns that lead to rework and project delays. UL Listed and MEG utility approvals across multiple states demonstrate compliance, reliability, and field performance. This unit is engineered for 200 A, 600 V, three-wire systems with top/bottom feed and a four-jaw, ringless design, simplifying installation and maintenance. For utilities and builders, it supports faster procurement, consistent field wiring, and reduced lifecycle costs while delivering a robust metering solution for residential applications. Its rugged build and standard hub compatibility align with typical meter stacks, helping projects stay on schedule.
Product Information
Extended Description
UTRS213CFLCH Eaton: Eaton meter socket, 1-pos resi service, 200 A, Over/under, 3-5/16 inch hub cover plate, #6-350 kcmil, 4-jaw, 1-ph, #8-350 kcmil, Gnd conn (#14-#2 Cu), Triplex, 3-wire, Ringless, 600 Vac
Product Name
Eaton meter socket
Catalog Number
UTRS213CFLCH
UPC
782116128303
Product Length/Depth
4.37 in
Product Height
15 in
Product Width
11 in
Product Weight
15 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Type
Single-position residential service
Amperage Rating
200A
Feed type
Top/bottom
Number of jaws
Four-jaw
Phase
Single-phase
Utility approvals
FL : MEG (Duke Energy, Florida Power, Tampa Electric, Gulf Power, Oklahoma Gas and Electric) IN : MEG (Duke Energy, Florida Power, Tampa Electric, Gulf Power, Oklahoma Gas and Electric) KY : MEG (Duke Energy, Florida Power, Tampa Electric, Gulf Power, Oklahoma Gas and Electric) NC : MEG (Duke Energy, Florida Power, Tampa Electric, Gulf Power, Oklahoma Gas and Electric) OH : MEG (Duke Energy, Florida Power, Tampa Electric, Gulf Power, Oklahoma Gas and Electric) SC : MEG (Duke Energy, Florida Power, Tampa Electric, Gulf Power, Oklahoma Gas and Electric) FL : Tallahassee City Electric
Line
#8-350 kcmil
Load
#8-350 kcmil
Number of wires
Three-wire
Hub type
3-5/16 in cover plate
Security
Ringless
Voltage rating
600 V
Number of sockets
1
Residential and Light Commercial, Metering Products, Volume 1 Tab 4
Eaton Specification Sheet - UTRS213CFLCH
Feature: 200A, 600V single‑phase service with four jaws. Business Impact: Delivers a secure, high‑capacity connection that reduces rework and ensures reliable metering under peak loads. Application: Ideal for residential meter installations and light commercial services. Feature: Ringless design paired with a 3‑5/16 in hub cover plate. Business Impact: Improves tamper resistance and simplifies inspection and maintenance, speeding on-site activity. Application: Suitable for retrofit and new installs in standard meter stacks. Feature: Top/bottom feed and three‑wire configuration. Business Impact: Provides flexible routing to align with existing feeders and panel layouts, reducing installation time. Application: Common in residential service entries with triplex, ringless meters. Feature: Line and load conductors rated #8‑350 kcmil; ground connection (#14‑#2 Cu). Business Impact: Expands conductor compatibility, minimizes inventory, and supports larger service feeders while maintaining safety. Application: Enables robust connections for large residential services. Feature: UL Listed certification and MEG utility approvals across multiple states. Business Impact: Improves project acceptance, lowers risk, and streamlines utility coordination. Application: Fits MEG programs in Florida and elsewhere for residential meters. Feature: Compact dimensions and 15 lb weight. Business Impact: Facilitates easier handling, shipping, and field mounting. Application: Compatible with standard meter rooms and stacks.
Get a Quick Quote for a Eaton UTRS213CFLCH
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTRS213CFLCH?
Enquire Now
FAQs
To install the Eaton UTRS213CFLCH meter socket, verify a 200 A, 600 V rating and a three-wire configuration. Use the top/bottom feed with the four-jaw ringless design to secure conductors and establish a proper ground connection (#14-#2 Cu). Follow local codes and UL Listed guidelines, ensuring MEG utility approvals where applicable. Safely fasten the unit to the mounting surface and route conductors per utility program requirements.
This meter socket supports line and load conductors in the range of #8-350 kcmil copper, with a ground path for copper #14-#2. It is a three-wire configuration designed for single-phase residential service. Always confirm conductor sizing with the utility program and applicable electrical codes before installation to ensure full compliance.
Yes. The UTRS213CFLCH carries UL Listed certification and MEG utility approvals across multiple states, including programs managed by Duke Energy and Florida utilities. When planning a project, verify MEG participation with the local utility and ensure the meter socket installation aligns with their specific wiring and labeling requirements.
The meter socket is covered by Eaton’s policy 25-000, offering a one-year warranty from the date of installation or up to eighteen months from shipment, whichever occurs first. This warranty supports manufacturing defects and ensures long-term reliability when used as intended in residential service installations.
The unit measures 15 inches in height, 11 inches in width, and 4.37 inches in depth, with an approximate weight of 15 pounds. The compact footprint facilitates installation in standard meter rooms and stacks, while providing ample space for #8-350 kcmil conductors and copper grounding connections.
