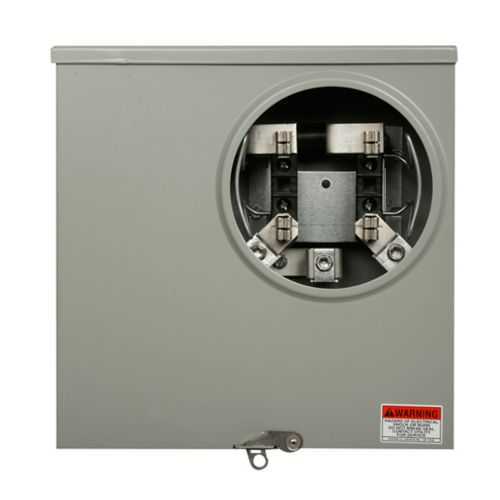

Eaton UTRS223ACH Meter Socket 200A Single-Phase UL Listed
Part Number: UTRS223ACH
Quick Summary
Eaton meter socket is a robust 200 A residential service solution for meter installations in multifamily and light-commercial settings. Field teams benefit from a bottom-feed, four-jaw configuration that simplifies wiring while maintaining a compact footprint. The product is UL Listed, supporting compliance with recognized safety standards, and it carries a 600 V rating suitable for typical utility environments. While CE or IP ratings are not listed for this variant, the ringless, side-wired design minimizes contact points and reduces tampering risk. This model delivers reliable, code-compliant performance with Eaton’s warranty and support, making it a strong fit for project teams seeking durable, easy-to-install metering hardware alongside proven service-life value.
Product Information
Extended Description
UTRS223ACH Eaton: Eaton meter socket, 1-pos resi service, 200 A, Under, Solid top, #6-350 kcmil, 4-jaw, 1-ph, #8-350 kcmil, Gnd conn (#14-#2 Cu), Triplex, Side-wired, 3-wire, Ringless, 600 Vac
Product Name
Eaton meter socket
Catalog Number
UTRS223ACH
UPC
782114103524
Product Length/Depth
4.94 in
Product Height
13 in
Product Width
13 in
Product Weight
13 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Type
Single-position residential service
Amperage Rating
200A
Feed type
Bottom
Number of jaws
Four-jaw
Phase
Single-phase
Utility approvals
ME : Central Maine Power NM : El Paso Electric TX : El Paso Electric AR : Entergy LA : Entergy MS : Entergy TX : Entergy GA : Georgia Power TN : Knoxville Utility Board (KUB) TN : Middle Tennessee EMC NM : Texas-New Mexico Power (TNMP) TX : Texas-New Mexico Power (TNMP) SC : South Carolina Electric and Gas (SCE&G)
Line
#8-350 kcmil
Load
#8-350 kcmil
Number of wires
Three-wire
Hub type
Solid top
Security
Ringless
Voltage rating
600 V
Number of sockets
1
Residential and Light Commercial, Metering Products, Volume 1 Tab 4
Eaton Specification Sheet - UTRS223ACH
Feature → Business Impact → Application: The 200 A single-position residential service rating aligns with common utility and building code requirements, enabling installers to confidently serve standard homes and light commercial spaces without overprovisioning or under-sizing. This translates to precise cost control and predictable performance in everyday metering projects. Feature → Business Impact → Application: The four-jaw, bottom-feed design provides a secure, easy-to-wire connection that minimizes contact resistance and reduces risk of arcing, improving reliability and lowering maintenance checks during commissioning. Application: Ideal for retrofit and new-build meter centers where fast, dependable socket integrity matters. Feature → Business Impact → Application: Ringless, side-wired configuration simplifies field installation and inspection, reducing labor time and aligning with common electrical inspector expectations in residential service upgrades. Application: Suitable for multi-tenant or single-dwelling installations requiring clean aesthetics and straightforward wiring. Feature → Business Impact → Application: A 600 V rating with #8-350 kcmil line/load capability allows flexible conductor sizing, supporting diverse feeder configurations and future-proofing for evolving load profiles. Application: Useful in both utility-connected homes and light commercial service entrances. Feature → Business Impact → Application: UL Listed certification provides documented safety compliance, facilitating code approvals and insurance acceptance. Application: Critical for job-site compliance and risk reduction in regulated markets. Feature → Business Impact → Application: Solid footprint (4.94 in depth, 13 in height, 13 in width) and a 13 lb weight support manageable handling, shipping, and enclosure fit within standard meter centers. Application: Streamlines logistics and field deployment for contractor teams.
Get a Quick Quote for a Eaton UTRS223ACH
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTRS223ACH?
Enquire Now
FAQs
The UTRS223ACH is designed for single-position residential service installations with bottom-feed conductors and a four-jaw configuration. It supports three-wire, ringless connections and accommodates #8-350 kcmil feeders. Its 600 V rating aligns with typical utility and building standards, enabling reliable service connections in homes and light commercial projects.
Key specifications include 200 A amperage rating, single-phase operation, bottom feed, four-jaw design, 1 socket, voltage rating of 600 V, and conductor range #8-350 kcmil for both line and load. It uses a three-wire configuration with ground conductors sized #14-#2 Cu and a solid-top, ringless housing for straightforward wiring.
Yes. The 200 A capacity and single-position residential service configuration make it appropriate for individual homes and small multi-dwelling setups. Its compact dimensions, bottom-feed design, and four-jaw connection optimize installation in meter centers and shared utility spaces, while UL Listed certification supports code compliance across typical residential portfolios.
The UTRS223ACH is UL Listed, confirming conformity with recognized safety standards for electrical equipment. While no CE, SIL, or IP ratings are listed in the provided data, UL Listing serves as the primary certification for safety and reliability in many North American markets.
Eaton backs this meter socket with its warranty policy 25-000, offering one year from the date of installation or eighteen months from shipment, whichever occurs first. In addition to warranty coverage, Eaton provides standard product support and access to specification sheets and installation guidance to assist with commissioning and ongoing maintenance.
