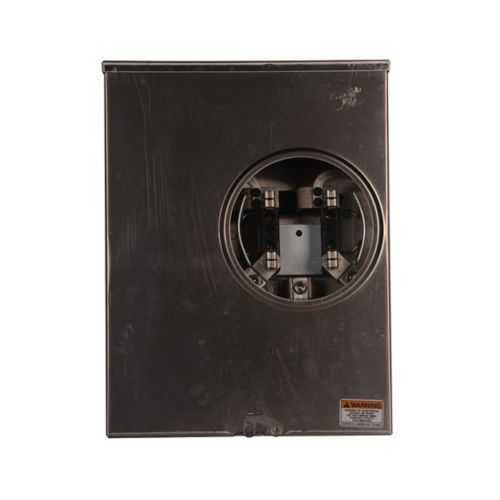

Eaton UTRS232CCH Meter Socket - UL Listed, 600V, 200A
Part Number: UTRS232CCH
Quick Summary
Eaton meter socket for residential service provides a reliable, code-compliant connection to utility metering networks, supporting fast turnarounds on new builds and retrofits. Field installations frequently face ingress location constraints and top/bottom entry challenges; this unit offers an offset design with lugs facing downward for bottom-service cable entry, speeding wiring and reducing labor. Certified UL Listed and rated for 600 V, 200 A, the four-jaw, single-phase, 3-wire configuration ensures secure, compliant connections across common service setups. As part of Eaton's metering portfolio, it integrates with standard meter sockets, supports efficient power management, and enables scalable upgrades for new or existing panels. Designed for procurement and field installation, it pairs with Eaton warranty policies to minimize risk and streamline maintenance.
Product Information
Extended Description
UTRS232CCH Eaton: Eaton meter socket, 1-pos resi service, 200A, Over/under, 3-5/16 inch hub cover plate, #8-250 kcmil, Four-jaw, 1-phase, #8-250 kcmil, Gnd conn (#14-#2 Cu), Triplex, 3-wire, Ringless, 600 Vac
Product Name
Eaton meter socket
Catalog Number
UTRS232CCH
UPC
782116002085
Product Length/Depth
4.93 in
Product Height
17.12 in
Product Width
13 in
Product Weight
13 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Catalog Notes
Offset design with lugs facing downward for bottom service cable entry only
Type
Single-position residential service
Amperage Rating
200A
Feed type
Top/bottom
Number of jaws
Four-jaw
Phase
Single-phase
Line
#8-250 kcmil
Load
#8-250 kcmil
Number of wires
Three-wire
Hub type
3-5/16 in hub cover plate
Security
Ringless
Voltage rating
600 V
Number of sockets
1
Residential and Light Commercial, Metering Products, Volume 1 Tab 4
Eaton Specification Sheet - UTRS232CCH
Selling Policy 25-000 - Distribution and Control Products and Services
UL Listed with a 600 V, 200 A rating establishes baseline code compliance and long-term reliability, reducing field rework and callbacks. This specification supports safe, consistent connections in residential metering applications. Offset design with downward lugs for bottom-entry entry improves wiring ease in tight spaces, speeding installations and reducing labor costs for retrofit projects. Four-jaw, single-phase, 3-wire construction ensures a secure connection for typical residential service feeders and minimizes the chance of loose connections in field conditions. Top/bottom feed capability and the 3-5/16 in hub cover plate improve conduit compatibility, simplifying site routing and compliance with common electrical codes. Eaton's metering portfolio alignment provides streamlined procurement, predictable lead times, and robust warranty support, lowering total cost of ownership. Grounding is designed to be ringless, reducing grounding conductor complexity while maintaining safety and reliability.
Get a Quick Quote for a Eaton UTRS232CCH
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTRS232CCH?
Enquire Now
FAQs
The UTRS232CCH is designed for residential service with top/bottom feed and a 3-5/16 in hub cover plate, supporting #8-250 kcmil conductors. Ensure correct downward-lug orientation for bottom-entry cabling and verify UL Listed compliance before energizing. Proper torque on the four jaws is essential to maintain a secure connection.
UL Listed certification confirms adherence to safety and performance standards for metering equipment. The unit is rated for 600 V and 200 A, with a four-jaw, single-phase, three-wire configuration, ensuring compliant operation in common residential service environments and reducing the risk of overheating or loose connections.
Yes. The UTRS232CCH supports top and bottom feed configurations and features an offset design with downward lugs for easy bottom-entry installation. It accepts #8-250 kcmil line/load conductors and uses a 3-5/16 inch hub cover plate to align with standard conduit layouts, simplifying retrofits and new builds.
Detailed specifications and datasheets are available from Eaton, including the UTRS232CCH datasheet and the sales policy. The product carries a one-year warranty from installation or 18 months from shipment, whichever occurs first, and UL Listed certification for safety and reliability.
Choosing the UTRS232CCH delivers predictable lead times, reduced field labor due to the offset downward-lug design, and a robust safety profile with UL Listed certification. It supports reliable residential metering, lowers maintenance risk, and aligns with Eaton’s metering product family for streamlined procurement and service continuity.
