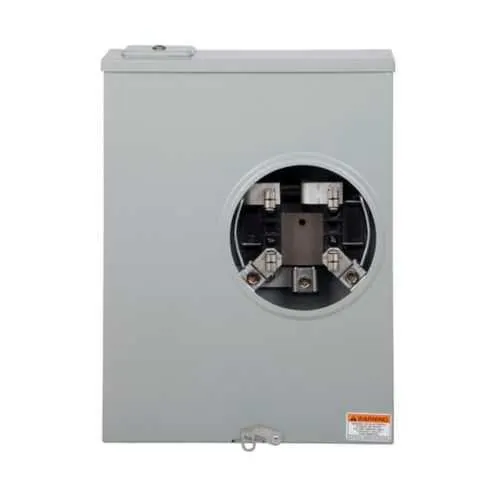

Eaton UTRS233CCH Meter Socket, 200A, 600V, UL Listed
Part Number: UTRS233CCH
Quick Summary
The Eaton UTRS233CCH meter socket is a single-position residential service device used to connect 200A utility feeds. Installing or upgrading metering equipment often encounters delays, compatibility gaps, or regulatory compliance risk. UL Listed certification, a 600 V rating, and a four-jaw design reinforce safety and reliability across standard residential and light commercial applications. As a trusted Eaton solution, it complements top/bottom fed, three-wire systems and reduces project risk while enabling quick, compliant metering. Designed for field reliability, it integrates with standard meter canopies and existing service entrances, reducing field time and rework. Procurement teams benefit from predictable lead times, straightforward warranty terms, and a proven track record with utility-approved configurations.
Product Information
Extended Description
UTRS233CCH Eaton: Eaton meter socket, 1-pos resi service, 200A, Over/under, 3-5/16 inch hub cover plate, #8-350 kcmil, 4-jaw, 1-ph, #8-350 kcmil, Gnd conn (#14-#2 Cu), Triplex, 3-wire, Ringless, 600 Vac
Product Name
Eaton meter socket
Catalog Number
UTRS233CCH
UPC
782116124039
Product Length/Depth
4.94 in
Product Height
17.13 in
Product Width
13 in
Product Weight
18 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Type
Single-position residential service
Amperage Rating
200A
Feed type
Top/bottom
Number of jaws
Four-jaw
Phase
Single-phase
Utility approvals
MO : Empire District Electric OK : Empire District Electric AR : Entergy LA : Entergy MS : Entergy TX : Entergy GA : Georgia Power
Line
#8-350 kcmil
Load
#8-350 kcmil
Number of wires
Three-wire
Hub type
3-5/16 in hub cover plate
Security
Ringless
Voltage rating
600 V
Number of sockets
1
Residential and Light Commercial, Metering Products, Volume 1 Tab 4
Eaton Specification Sheet - UTRS233CCH
Feature: 200A amperage rating provides the capacity needed for typical residential service without oversizing systems. Business impact: supports safe, code-compliant service connections while minimizing upgrade costs and future rework. Application: ideal for single-phase, 3-wire residential metering in new builds or remodels where versatility and reliability matter. Feature: Top/bottom feed design simplifies installation in varied meter bases and cabinet configurations. Business impact: reduces field time and potential miswiring, speeding project completion. Application: retrofit projects and new installations where space and access vary. Feature: Four-jaw, ringless construction enhances secure conductor gripping and tamper resistance. Business impact: improves safety, reduces maintenance calls, and lowers lifecycle costs. Application: high-reliability metering in urban and suburban electrical distributions. Feature: Large conductor capacity with line/load ratings of #8-350 kcmil and ground connection (#14-#2 Cu). Business impact: accommodates high-kcmil feeders and ensures solid grounding, easing code compliance. Application: service entrances with demanding load profiles or upgrade paths. Feature: 600 VAC voltage rating and UL Listed certification deliver validated electrical safety. Business impact: minimizes compliance risk and simplifies approvals with utilities and inspectors. Application: residential metering in mixed-voltage environments and light commercial installations. Feature: Hub cover plate size 3-5/16 in and 1-ph, 3-wire configuration optimizes compatibility with common meter bases. Business impact: streamlines procurement and reduces part mismatch. Application: standard meter socket installations across multiple jurisdictions.
Get a Quick Quote for a Eaton UTRS233CCH
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTRS233CCH?
Enquire Now
FAQs
Yes. The UTRS233CCH is designed for common residential meter bases with top/bottom feed configurations, 3-wire service, and a 3-5/16 inch hub cover plate. Its ringless, four-jaw construction provides robust conductor gripping while reducing field handling complexity, helping installers avoid reworks and ensure a solid, compliant connection in new or retrofit projects.
Key specs include a 200A amperage rating, 600 V voltage rating, single-phase, three-wire configuration, four-jaw design, and a 3-5/16 inch hub cover plate. It supports conductors from #8 to 350 kcmil for both line and load, with grounding through #14-#2 Cu, ensuring robust performance across typical residential service scenarios.
This meter socket is ideal for residential service installations and light commercial metering that require a reliable, UL Listed device. Its 200A capacity, ringless security, and top/bottom feed compatibility suit new builds, remodels, and utility-approved retrofit projects where space is constrained and contractor efficiency is valued.
Yes. The UTRS233CCH carries UL Listed certification, confirming adherence to established electrical safety standards. Its 600 VAC rating supports compliance with common utility and jurisdictional requirements, while its documented specifications align with typical residential and light commercial metering projects, reducing review time with inspectors and utility partners.
The unit’s sturdy four-jaw ringless design, large conductor capacity, and UL Listed certification contribute to longer service life with fewer field maintenance interventions. While installation costs are mitigated by top/bottom feed compatibility and reduced rework, overall lifecycle value includes faster project completion, predictable warranties, and robust grounding, yielding lower total cost of ownership over time.
