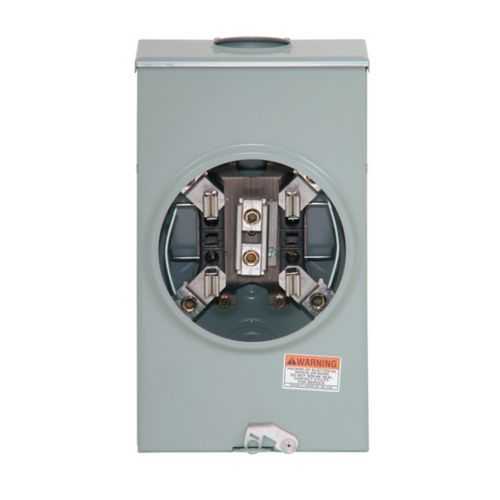

Eaton UTRS502BCH Meter Socket - UL Listed 600V Ringless
Part Number: UTRS502BCH
Quick Summary
An Eaton meter socket, UTRS502BCH, provides a reliable service interface for 150 A residential installations. Engineered to minimize installation delays, it supports overhead feeds, 3-wire configurations, and a 3-5/16 in hub opening for quick, code-compliant connections. UL Listed and suitable for 600 V systems, the unit helps utilities and contractors meet safety standards across service upgrades and new builds. For engineers and field crews, the compact 4-jaw, ringless design reduces tamper risk and simplifies meter swaps, while the 10 lb chassis aids handling in confined spaces. This model’s rugged construction and Eaton backing support predictable performance, dependable warranty terms, and straightforward maintenance planning.
Product Information
Extended Description
UTRS502BCH Eaton: Eaton meter socket, 1-pos resi service, 150A, Over, 3-5/16 inch hub open, #8-250 kcmil, 4-jaw, 1-ph, #8-250 kcmil, Gnd conn (#14-#2 Cu), Triplex, 3-wire, Ringless, 600 Vac
Product Name
Eaton meter socket
Catalog Number
UTRS502BCH
UPC
782113684024
Product Length/Depth
4.38 in
Product Height
14 in
Product Width
8 in
Product Weight
10 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Type
Single-position residential service
Amperage Rating
150A
Feed type
Overhead
Number of jaws
Four-jaw
Phase
Single-phase
Utility approvals
ME : Central Maine Power AL : Huntsville Utilities TN : Knoxville Utility Board (KUB) TX : Oncor TX : Pedernales Electric Cooperative
Line
#8-250 kcmil
Load
#8-250 kcmil
Number of wires
Three-wire
Hub type
3-5/16 in hub opening
Security
Ringless
Voltage rating
600 V
Number of sockets
1
Residential and Light Commercial, Metering Products, Volume 1 Tab 4
Eaton Specification Sheet - UTRS502BCH
Feature: 150 A, 600 V rating provides headroom for modern home and light commercial loads while meeting code requirements. This capability translates into fewer service upgrades and smoother utility coordination, reducing project risk during new builds or upgrades. Feature: 3-5/16 in hub opening ensures compatible meter tails and overhead conduits without excessive adapters. The 4-jaw design provides a robust, repeatable connection that minimizes field call-backs due to loose terminations. Feature: Ringless security reduces tampering opportunities and simplifies meter replacement in the field, supporting compliance with utility standards and faster service restoration. Feature: Overhead feed and three-wire configuration align with common residential service models, enabling straightforward integration with existing utility drops and NEC-compliant wiring practices. Feature: Compact 14 in x 8 in x 4.38 in footprint and 10 lb weight improve handling and installation in tight spaces, reducing labor time and site coordination. Feature: Conductors up to #8-250 kcmil on line and load, plus a copper ground connection (#14-#2 Cu), deliver robust, high-capacity terminations with dependable electrical performance. Feature: UL Listed with Eaton warranty support provides confidence in long-term reliability, maintenance planning, and supplier responsiveness for field service.
Get a Quick Quote for a Eaton UTRS502BCH
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTRS502BCH?
Enquire Now
FAQs
To install the UTRS502BCH, prepare the overhead service conductors and ensure a clean, labeled connection path. Use the 3-5/16 in hub opening to route line and load conductors (#8-250 kcmil) into the four-jaw, ringless meter socket. Connect the ground conductor (Cu #14-#2) to the grounding point, secure all terminations, and verify 600 V compatibility and proper alignment with the utility drop. Adhere to NEC guidelines and utility requirements for a compliant, safe install.
Yes. The UTRS502BCH is designed for overhead single-phase, three-wire residential service with a 150 A rating and a 600 V operating voltage. Its ringless, four-jaw construction simplifies meter swaps and reduces tamper risk, while the 3-5/16 inch hub opening accommodates common overhead feeds and meter tails for efficient upgrades and replacements.
The UTRS502BCH is UL Listed, providing recognized safety certification for electrical products used in residential and light commercial service. This listing indicates adherence to established safety and performance standards, supporting compliance with NEC requirements and utility acceptance during installation, inspection, and ongoing maintenance.
The meter socket measures 14 inches in height, 8 inches in width, and 4.38 inches in depth, with a weight of 10 pounds. These dimensions facilitate installation in tight spaces and ease handling during sitework, contributing to faster install times and reduced labor costs.
Eaton provides a warranty under policy 25-000: one year from the date of installation or 18 months from shipment, whichever occurs first. This coverage supports return-to-service reliability, while Eaton’s technical support helps with field issues, replacements, and maintenance planning for long-term lifecycle management.
