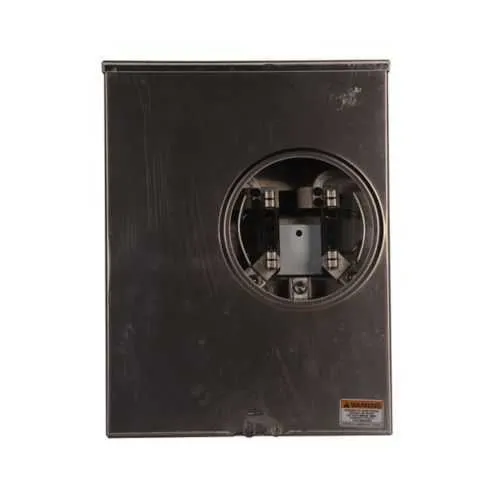

Eaton UTRS502CCH Meter Socket - UL Listed
Part Number: UTRS502CCH
Quick Summary
Eaton meter socket is a reliable 150A single-position residential service device designed for overhead metering applications. It addresses common installation challenges such as space constraints, wiring complexity, and regulatory compliance by delivering a compact, 4-jaw, ringless design that simplifies terminations. This unit carries UL Listed certification and Iowa Rural approval, with additional utility validation from Central Maine Power, helping ensure code adherence in typical residential feeder installations. For contractors and utilities, the combination of robust electrical ratings and straightforward mounting translates to faster projects, reduced callbacks, and improved metering reliability in new-build and retrofit scenarios.
Product Information
Extended Description
UTRS502CCH Eaton: Eaton meter socket, 1-pos resi service, 150A, Over, 3-5/16 inch hub cover plate, #8-250 kcmil, 4-jaw, 1-ph, #8-250 kcmil, Gnd conn (#14-#2 Cu), Triplex, 3-wire, Ringless, 600 Vac
Product Name
Eaton meter socket
Catalog Number
UTRS502CCH
UPC
782113729732
Product Length/Depth
4.36 in
Product Height
14 in
Product Width
8 in
Product Weight
17 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Catalog Notes
Iowa, Rural approved
Type
Single-position residential service
Amperage Rating
150A
Feed type
Overhead
Number of jaws
Four-jaw
Phase
Single-phase
Utility approvals
ME : Central Maine Power
Line
#8-250 kcmil
Load
#8-250 kcmil
Number of wires
Three-wire
Hub type
3-5/16 in hub cover plate
Security
Ringless
Voltage rating
600 V
Number of sockets
1
Residential and Light Commercial, Metering Products, Volume 1 Tab 4
Eaton Specification Sheet - UTRS502CCH
Feature 1: 150A amperage rating with 600V voltage capability → Business impact: supports standard residential and light commercial loads while maintaining a generous safety margin; Application: overhead feed connections in single-phase service installations. Feature 2: Four-jaw, three-wire, ringless design → Business impact: simplifies secure conductor termination and reduces rotary wear or damage to the cover; Application: quick, clean field terminations in small service enclosures. Feature 3: Hub cover plate 3-5/16 in and #8-250 kcmil line/load capability → Business impact: enables flexible wiring choices and easier retrofits in common meter sockets; Application: compatibility with a wide range of conductors in residential feeders. Feature 4: Ground connection rated #14-#2 Cu and ringless security → Business impact: enhances safety and tamper-resistance while complying with grounding practices; Application: metering connections in new builds and service upgrades. Feature 5: UL Listed and Iowa Rural approved → Business impact: provides regulatory confidence and utility acceptance; Application: deployment across rural and municipal projects with established approval pathways. Feature 6: Warranty and support → Business impact: reduces ownership risk with policy coverage; Application: project budgeting and long-term maintenance planning for metering assets.
Get a Quick Quote for a Eaton UTRS502CCH
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTRS502CCH?
Enquire Now
FAQs
Install the UTRS502CCH by aligning the 3-5/16 in hub cover plate with the enclosure opening, securing the four-jaw housing to the service conduit, and terminating the line/load conductors within the #8-250 kcmil range. Use the three-wire configuration and connect the ground (Cu) per code. The unit’s ringless design aids a clean finish and reduces retrofit complexity, while UL Listed status confirms compliance with safety standards.
This meter socket supports 150A, 600V operation, single-phase, with four jaws and one socket. It accommodates #8-250 kcmil conductors for both line and load, uses a three-wire configuration, and includes a ground connection suitable for copper conductors. The assembly is designed for overhead feed installations and is ringless for easier installation.
Yes. The unit carries Iowa Rural approval and ME: Central Maine Power utility validation, making it suitable for rural and municipal metering projects. Its combination of UL Listed certification, compact form factor, and conventional residential service rating ensures compatibility with many rural distribution setups and standard metering practices.
The UTRS502CCH is UL Listed and Iowa Rural approved, with utility validation from Central Maine Power. While not specified for SIL or CE, these certifications collectively validate safety, reliability, and suitability for residential metering in approved regions, helping installers meet local code and utility interconnection requirements.
Eaton backs this meter socket with a warranty under policy 25-000, offering one year from installation or eighteen months from shipment, whichever occurs first. This coverage supports commissioning confidence, reduces maintenance costs, and provides a defined framework for addressing manufacturing defects during initial operation.
