Eaton UTS614E19P Plastic Waterproof Connector - IP68/69K
Part Number: UTS614E19P
Quick Summary
The Eaton UTS614E19P plastic waterproof IP68/69K connector for 19-pin solder-contact connectivity in rugged industrial and outdoor equipment. Moisture ingress, vibration, and harsh service conditions challenge many assemblies; this plug provides sealed reliability and simpler field installation. Its IP68/69K protection, UL 1977 and IEC 61984 certifications, and RoHS exemption underpin regulatory readiness across global markets. With a compact 34 mm footprint, bayonet coupling, and gold-plated contacts, it reduces assembly time while preserving signal quality. Designed for long-life performance, the UTS614E19P supports up to 250 mating cycles and operates from -40 °C to 105 °C, helping reduce maintenance costs in demanding environments.
Product Information
Extended Description

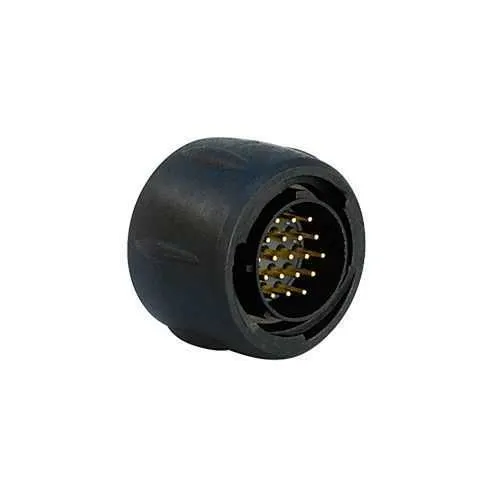

UTS614E19P Eaton: Plastic plug, without backshell, with 19 male solder contacts, IP68/69K in unmated conditions; UTS614E19P
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS614E19P
Product Length/Depth
23.6 mm
Product Height
34.4 mm
Product Width
34.6 mm
Product Weight
23 g
Compliances
CSA-C22.2 No.182.3 (please contact us for more details) UL 1977 (please contact us for more details) IEC 61984 (please contact us for more details) ROHS exemption 6.c
Current rating
5 A IEC 4 A UL
Environmental conditions
Flammability rating UL94 HB REACH RoHS
Environmental resistance
Resistant against oil Resistant against basic bath Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against gasoline UV resistant, no degradation after 5 years of exposure in natural environment Resistant against mineral oil Resistant against acid bath
Test current
4 A CSA 5 A IEC 4 A UL
Test voltage
32 V IEC 250 V CSA 250 V UL
Connector accessory option
Not delivered, to be ordered separately
Connector orientation
N
Connector type
Plug
Contact delivery
Loaded
Contact gender
Pin (Male)
Contact plating
Gold
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Neoprene
Layout
19
Plug type
Straight Plug
Shell material
Plastic
Shell size
14
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
19
Number of cavity #20
19
Salt spray
500 hour
Feature: 19-pin solder-contact arrangement with gold plating. Benefit: ensures low contact resistance, corrosion resistance, and reliable signal integrity across service intervals. Application: automation controllers, sensors, and actuators in exposed industrial deployments. Feature: IP68/69K rating in unmated conditions. Benefit: protects internal conductors from dust, water and wash-down, minimizing downtime in outdoor and wet environments. Application: outdoor machinery, water treatment, agricultural equipment. Feature: 1/3 bayonet coupling. Benefit: quick, secure mating with reduced risk of misalignment; simplifies field servicing. Application: panel-to-cable connections subject to frequent disconnections. Feature: Operating temperature range of -40 °C to 105 °C. Benefit: supports operation in extreme climates without performance loss. Application: heavy equipment used in arctic and desert environments. Feature: Mating cycles rated at 250. Benefit: long service life and predictable maintenance cycles, lowering lifecycle costs. Application: high-use industrial installations. Feature: Neoprene insert and plastic shell. Benefit: enhanced seal integrity and impact resistance while keeping weight and cost favorable. Application: rugged automation and connectivity in harsh surroundings. Certificate and compliance considerations: UL 1977, IEC 61984, CSA-C22.2 No.182.3 with RoHS exemption 6.c. Benefit: simplifies procurement and regulatory approval.
