Eaton UTS614E19PY Plastic Waterproof Connector - IP68/69K
Part Number: UTS614E19PY
Quick Summary
Eaton UTS614E19PY plastic waterproof connector is a rugged solution for sensor and actuator wiring in harsh industrial environments. In the field, sealing, vibration, and temperature swings can drive field failures, so consistent mating reliability is critical. This product carries UL 1977 and CSA-C22.2 No.182.3, IEC 61984 approvals and RoHS exemption 6.c, reinforcing compliance for global equipment and service supply. With IP68 protection, 19 contacts, and gold-plated solder cups, it delivers reliable connectivity, reduces spare-parts costs, and supports straightforward sourcing for automation panels, outdoor gear, and mobile machinery.
Product Information
Extended Description

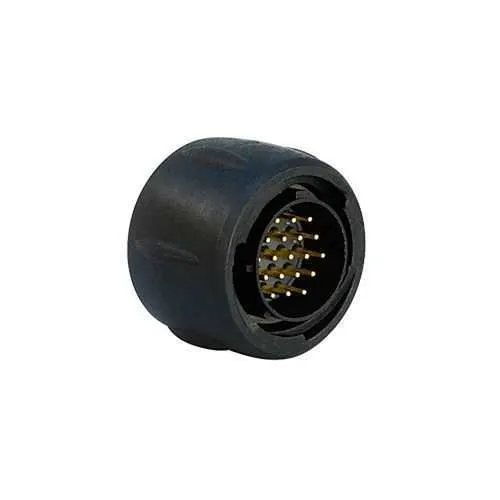

UTS614E19PY Eaton: Plastic plug, without backshell, with 19 male solder contacts, IP68/69K in unmated conditions, keying Y; UTS614E19PY
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS614E19PY
Product Length/Depth
23.6 mm
Product Height
34.4 mm
Product Width
34.6 mm
Product Weight
23 g
Compliances
CSA-C22.2 No.182.3 (please contact us for more details) UL 1977 (please contact us for more details) IEC 61984 (please contact us for more details) ROHS exemption 6.c
Current rating
4 A UL 5 A IEC
Environmental conditions
RoHS Flammability rating UL94 HB REACH
Environmental resistance
Resistant against gasoline Resistant against mineral oil Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz UV resistant, no degradation after 5 years of exposure in natural environment Resistant against basic bath Resistant against acid bath Resistant against oil
Test current
5 A IEC 4 A UL 4 A CSA
Test voltage
32 V IEC 250 V CSA 250 V UL
Connector accessory option
Not delivered, to be ordered separately
Connector orientation
Y
Connector type
Plug
Contact delivery
Loaded
Contact gender
Pin (Male)
Contact plating
Gold
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Neoprene
Layout
19
Plug type
Straight Plug
Shell material
Plastic
Shell size
14
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
19
Number of cavity #20
19
Salt spray
500 hour
Feature: IP68/IP69K sealing and a Neoprene insert in a plastic shell provide robust ingress protection. Business Impact: Prevents water, dust, and wash-down exposure from compromising signal integrity and lifecycle costs. Application: Outdoor automation equipment, wash-down zones, and mobile machinery where environmental exposure is routine. Feature: 19-contact, gold-plated solder cup contacts deliver low contact resistance and reliable conductivity. Business Impact: Improves electrical performance, reduces maintenance, and supports longer intervals between service. Application: Control systems and power circuits within industrial panels and equipment housings. Feature: 1/3 Bayonet coupling enables fast mating and secure retention under vibration. Business Impact: Speeds assembly and reduces downtime during maintenance or field upgrades. Application: Panel connections in crowded or hard-to-reach installations. Feature: Wide operating temperature range (-40 °C to 105 °C) and resistant materials. Business Impact: Expands deployment across cold climates and hot environments without special enclosures. Application: Outdoor machinery, agriculture equipment, and remote installations. Feature: 250 mating cycles and Neoprene insert show lifecycle durability and environmental resilience. Business Impact: Lowers replacement costs and ensures dependable long-term performance. Application: High-cycle automation interfaces and robotics where frequent disconnects occur. Feature: Compliance with UL, CSA, IEC standards and RoHS exemption 6.c. Business Impact: Facilitates regulatory approvals, supplier qualification, and global sourcing. Application: OEMs serving regulated industries and multi-region deployments.
