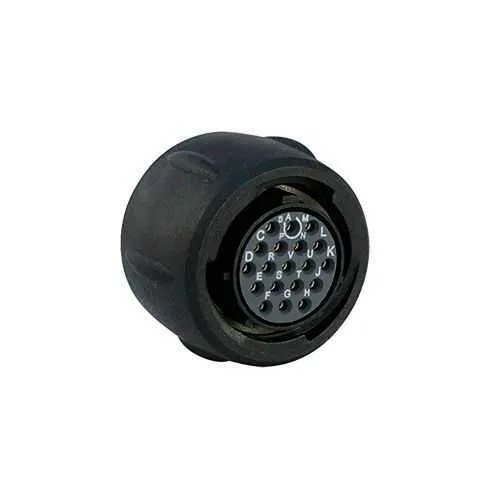

Eaton UTS614E19S Plastic Waterproof Connector - IP68/69K
Part Number: UTS614E19S
Quick Summary
The Eaton Souriau UTS614E19S is a plastic waterproof IP68/69K connector for rugged outdoor and wet-environment control systems. Engineers struggle with sealing, vibration resistance, and reliability on harsh sites, especially when interfaces must meet exact standards. This part complies with IEC 61984, CSA-C22.2 No.182.3, and UL 1977, while delivering IP68 sealing and 19 contacts. Its 19-way layout, 1/3 bayonet coupling, and gold-plated solder contacts support durable automation connectivity, reducing maintenance calls and lowering total cost of ownership. In automation and robotics applications, it plugs into Souriau UTS series ecosystems, enhancing compatibility and streamlining procurement and stocking for panel builders and integrators.
Product Information
Extended Description
UTS614E19S Eaton: Plastic plug, without backshell, with 19 female solder contacts, IP68/69K in unmated conditions; UTS614E19S
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS614E19S
Product Length/Depth
23.6 mm
Product Height
34.4 mm
Product Width
34.6 mm
Product Weight
25.2 g
Compliances
IEC 61984 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details) UL 1977 (please contact us for more details) ROHS exemption 6.c
Current rating
5 A IEC 4 A UL
Environmental conditions
RoHS Flammability rating UL94 HB REACH
Environmental resistance
Resistant against acid bath Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against basic bath Resistant against oil UV resistant, no degradation after 5 years of exposure in natural environment Resistant against gasoline Resistant against mineral oil
Test current
4 A UL 4 A CSA 5 A IEC
Test voltage
250 V UL 32 V IEC 250 V CSA
Connector accessory option
Not delivered, to be ordered separately
Connector orientation
N
Connector type
Plug
Contact delivery
Loaded
Contact gender
Socket (Female)
Contact plating
Gold
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Neoprene
Layout
19
Plug type
Straight Plug
Shell material
Plastic
Shell size
14
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
19
Number of cavity #20
19
Salt spray
500 hour
IP68/IP69K protection with a 19-position straight plug and 1/3 bayonet coupling delivers robust ingress protection and secure mating in unmated and mated states. This translates to fewer seal-related failures and easier field maintenance, ideal for conveyors, wind turbines, and outdoor automation panels. Current rating of 5 A IEC (4 A UL/CSA) and a 250 V test voltage ensure safe operation under automation loads, supporting servo drives, sensors, and field devices while aligning with common industrial standards. Gold-plated Solder Cup contacts paired with a Neoprene insert and a plastic shell deliver low contact resistance and corrosion resistance, enabling reliable connections in dense cable routes and high-vibration environments, with 19 ways increasing channel density and scalability. Durability is reinforced by a -40 to 105 °C operating range, UV resistance, and resilience to oil and basic/acid baths, ensuring long life in harsh industrial settings and washdown areas. Compatibility with the Souriau UTS series accelerates procurement and installation for panel builders, while the 250 mating cycles support ongoing production line maintenance and uptime. Orientation N and a straight plug design simplify panel integration, enabling quick field replacements without significant rewiring or layout changes.
