Eaton UTS614E19SX Plastic Connector - IP68/69K
Part Number: UTS614E19SX
Quick Summary
The Eaton UTS614E19SX plastic connector provides rugged waterproof sensing and control wiring for harsh industrial environments. This design addresses frequent ingress, moisture, and corrosion that drive costly downtime. It meets IP68/IP69K sealing and is compliant with UL 1977, IEC 61984, and CSA-C22.2 No.182.3, with RoHS considerations for electronics. For manufacturers and integrators, this means reliable field installation, extended service life, and reduced maintenance costs, while enabling easy compatibility with standard UTS accessories and 1/3 bayonet coupling. With 19 gold-plated solder contacts and a compact 23.6 mm depth, it fits into tight enclosures and simplifies wiring harness design for automation plants.
Product Information
Extended Description

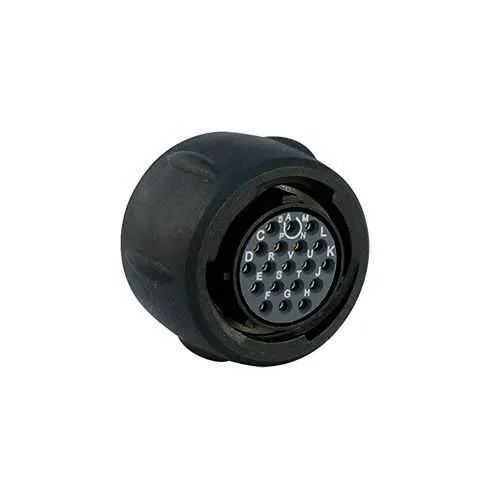

UTS614E19SX Eaton: Plastic plug, without backshell, with 19 female solder contacts, IP68/69K in unmated conditions, keying X; UTS614E19SX
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS614E19SX
Product Length/Depth
23.6 mm
Product Height
34.4 mm
Product Width
34.6 mm
Product Weight
25.2 g
Compliances
ROHS exemption 6.c UL 1977 (please contact us for more details) IEC 61984 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details)
Current rating
5 A IEC 4 A UL
Environmental conditions
REACH Flammability rating UL94 HB RoHS
Environmental resistance
Resistant against gasoline Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against oil Resistant against mineral oil Resistant against acid bath Resistant against basic bath UV resistant, no degradation after 5 years of exposure in natural environment
Test current
4 A CSA 5 A IEC 4 A UL
Test voltage
250 V CSA 32 V IEC 250 V UL
Connector accessory option
Not delivered, to be ordered separately
Connector orientation
X
Connector type
Plug
Contact delivery
Loaded
Contact gender
Socket (Female)
Contact plating
Gold
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Neoprene
Layout
19
Plug type
Straight Plug
Shell material
Plastic
Shell size
14
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
19
Number of cavity #20
19
Salt spray
500 hour
Feature: IP68/IP69K sealing and 1/3 bayonet coupling ensure robust ingress protection in wet and vibratory environments. Business Impact: Reduces downtime and maintenance costs by protecting sensitive sensor and control wiring. Application: Outdoor equipment, mining, and mobile machinery that operate in rain, dust, or washdown cycles. Feature: 19-position layout with gold-plated solder cups and a straight plug design. Business Impact: Reliable signal integrity, corrosion resistance, and straightforward installation. Application: Industrial automation, conveyors, and robotic arms where compact, high-density connections are required. Feature: 5 A current rating (IEC) and 4 A test current with up to 250 mating cycles. Business Impact: Long service life and predictable electrical performance under repetitive connect/disconnect cycles. Application: Harsh-duty equipment with frequent maintenance intervals. Feature: Neoprene insert and plastic shell provide durable environmental sealing. Business Impact: Extended product life in chemical or oil-containing environments with UV resistance. Application: Outdoor control panels and heavy machinery. Feature: Compliance with UL 1977, IEC 61984, and CSA-C22.2 No.182.3 and RoHS exemption. Business Impact: Regulatory compliance, safer operation, and simplified supplier qualification. Application: Industrial automation projects requiring certified, safe components with RoHS considerations.
