Eaton UTS614E19SY IP68K Connector - IP68/69K Waterproof
Part Number: UTS614E19SY
Quick Summary
UTS614E19SY is a plastic waterproof IP68/69K connector for harsh industrial environments. Moisture ingress and rugged field conditions can drive downtime and expensive maintenance. This Eaton Souriau assembly meets CSA-C22.2 No.182.3, UL 1977, and IEC 61984 with ROHS exemption 6.c, supporting regulatory compliance. Featuring 19 gold-plated solder cup contacts and a 1/3 bayonet coupling, it delivers reliable mating even in vibration. Its compact footprint and plastic shell simplify installation, enable inventory consolidation, and improve serviceability for automation and equipment builders. The Y-keying orientation prevents mis-mating during harness assembly, enhancing reliability in multi-cable systems.
Product Information
Extended Description

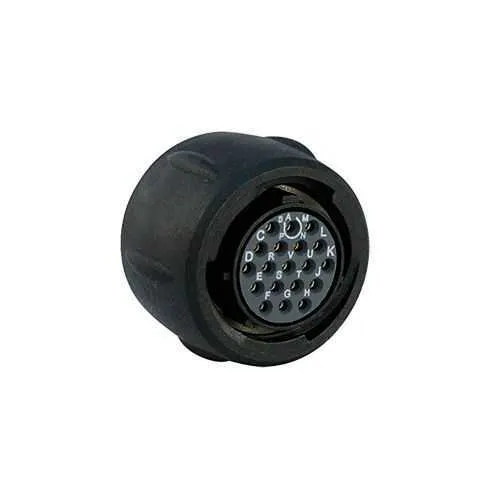

UTS614E19SY Eaton: Plastic plug, without backshell, with 19 female solder contacts, IP68/69K in unmated conditions, keying Y; UTS614E19SY
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS614E19SY
Product Length/Depth
23.6 mm
Product Height
34.4 mm
Product Width
34.6 mm
Product Weight
25.2 g
Compliances
CSA-C22.2 No.182.3 (please contact us for more details) ROHS exemption 6.c UL 1977 (please contact us for more details) IEC 61984 (please contact us for more details)
Current rating
4 A UL 5 A IEC
Environmental conditions
RoHS Flammability rating UL94 HB REACH
Environmental resistance
Resistant against gasoline Resistant against acid bath Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against basic bath Resistant against oil Resistant against mineral oil UV resistant, no degradation after 5 years of exposure in natural environment
Test current
4 A UL 5 A IEC 4 A CSA
Test voltage
32 V IEC 250 V CSA 250 V UL
Connector accessory option
Not delivered, to be ordered separately
Connector orientation
Y
Connector type
Plug
Contact delivery
Loaded
Contact gender
Socket (Female)
Contact plating
Gold
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Neoprene
Layout
19
Plug type
Straight Plug
Shell material
Plastic
Shell size
14
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
19
Number of cavity #20
19
Salt spray
500 hour
IP68/69K sealing translates to durability in washdown, outdoor, and damp factory environments, reducing field failures and maintenance costs. The corrosion- and UV-resistant plastic shell plus gasoline, acid, basic and mineral oil resistance extend service life in harsh conditions. Electrically, the 4 A UL / 5 A IEC current rating and 32 V IEC / 250 V CSA/UL voltage support reliable power and signal integrity across automation equipment, with 19 gold-plated solder cup contacts enhancing conductivity. Mechanically, the 1/3 bayonet coupling enables quick, secure mating, while the Y-key orientation prevents misalignment during harness assembly, reducing rework. The connector supports up to 250 mating cycles, delivering predictable lifecycle costs for robotics and machinery. Compatibility with standard 19‑way interfaces and the option to order backshell accessories separately offer installation flexibility and inventory optimization. Industry insight shows these features align with common automation platforms, enabling cross‑vendor integration and easier spare parts planning.
Get a Quick Quote for a Eaton UTS614E19SY
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS614E19SY?
Enquire Now
FAQs
When installing the UTS614E19SY, plan for a straight plug mating orientation with the Y-keying to ensure proper alignment in harness assemblies. The connector is a plastic plug without backshell, so order the appropriate backshell accessory separately if needed. It supports loaded contact delivery and requires a compatible mate and housing to maintain IP68/69K sealing in washdown or outdoor environments. Ensure mating cycles are within the 250‑cycle life and protect against over‑torquing the 1/3 bayonet coupling to preserve seal integrity.
The UTS614E19SY provides a current rating of 4 A UL / 5 A IEC and a test current of 4 A across 32 V IEC and 250 V CSA/UL. This makes it suitable for low‑to‑medium power signals and control lines in industrial equipment. The gold‑plated solder cups offer reliable contact resistance, while the 19‑contact layout supports dense wiring without compromising insulation or safety margins in typical automation panels.
Yes. The connector is rated IP68 and IP69K in unmated conditions, designed for high‑humidity, washdown, and outdoor exposure. Its neoprene insert material, UV resistance, and resistance to oils, fuels, and mineral oils help maintain performance in harsh environments. The combination of robust sealing and long‑life mating cycles supports reliable operation in robotics, conveyors, and outdoor automation stations.
The UTS614E19SY aligns with CSA‑C22.2 No.182.3, UL 1977, and IEC 61984, with ROHS exemption 6.c. These certifications attest to safety, electrical performance, and environmental compliance, reducing regulatory risk for industrial equipment manufacturers. Meeting these standards helps with end‑customer approvals, supplier approvals, and international deployment in diverse markets.
Adopting the UTS614E19SY can lower maintenance costs through longer service life, fewer field repairs, and reduced downtime due to reliable IP68/69K sealing and high mating durability (250 cycles). Gold‑plated contacts minimize signal degradation, while the compact form factor simplifies assembly and inventory management. Overall, a rugged, compliant connector like this can improve uptime and lower lifecycle expenses in automation and machinery environments.
