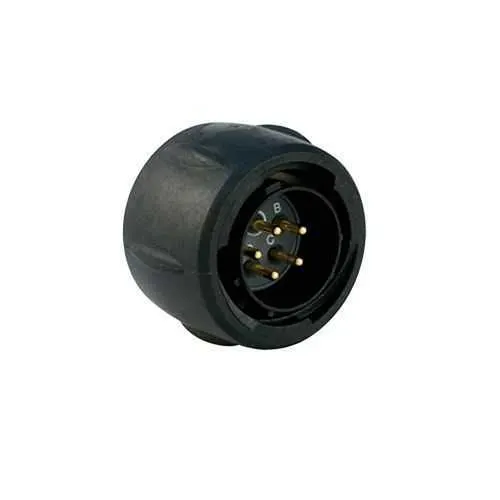

Eaton UTS614E5P Plastic Waterproof IP68/69K Plug Connector
Part Number: UTS614E5P
Quick Summary
The Eaton UTS614E5P plastic waterproof IP68/69K plug connector is designed to deliver sealed, reliable electrical connections for harsh industrial environments. In demanding machinery, moisture, dust, and vibration can drive downtime and maintenance costs; this connector helps mitigate those risks with a robust IP rating and rugged materials. Compliant with UL 1977, IEC 61984, and CSA-C22.2 No. 182.3, plus ROHS exemption 6.c, it provides cross-border regulatory confidence. For engineers and buyers, the combination of a 5-position solder cup interface and field-ready installation translates to faster wiring, fewer repairs, and improved lifecycle value in automation applications. This makes it a practical choice for motor control, sensors, and fieldbus connections in tough environments.
Product Information
Extended Description
UTS614E5P Eaton: Plastic plug, without backshell, with 5 male solder contacts, IP68/69K in unmated conditions; UTS614E5P
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS614E5P
Product Length/Depth
23.6 mm
Product Height
34.4 mm
Product Width
34.6 mm
Product Weight
20.4 g
Compliances
CSA-C22.2 No.182.3 (please contact us for more details) IEC 61984 (please contact us for more details) ROHS exemption 6.c UL 1977 (please contact us for more details)
Current rating
16 A IEC 12 A UL
Environmental conditions
RoHS REACH Flammability rating UL94 HB
Environmental resistance
Resistant against gasoline Resistant against oil UV resistant, no degradation after 5 years of exposure in natural environment Resistant against acid bath Resistant against basic bath Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against mineral oil
Test current
12 A CSA 12 A UL 16 A IEC
Test voltage
150 V IEC 600 V CSA 600 V UL
Connector accessory option
Not delivered, to be ordered separately
Connector orientation
N
Connector type
Plug
Contact delivery
Loaded
Contact gender
Pin (Male)
Contact plating
Gold
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Neoprene
Layout
5
Plug type
Straight Plug
Shell material
Plastic
Shell size
14
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
5
Number of cavity #16
5
Salt spray
500 hour
Feature → Business Impact → Application: The IP68/69K-rated plastic shell and neoprene insert create a robust seal that dramatically reduces ingress risk in washdowns and outdoor settings, lowering failure rates and maintenance costs across automated lines and outdoor machinery. This enables more reliable uptime and simplifies compliance during QA checks. Application: rugged automation equipment and field wiring in manufacturing floors where moisture and dust are prevalent. Feature → Business Impact → Application: Five-position 5-contact layout with gold-plated solder cups provides low contact resistance and corrosion resistance, delivering stable signal and power transfer even in challenging conditions. Application: sensors, actuators, and control circuits requiring clean, repeatable electrical performance. Feature → Business Impact → Application: 1/3 bayonet coupling and straight plug orientation enable fast, tool-free mating and secure retention, reducing installation time by a measurable margin while maintaining vibration resistance. Application: compact assemblies in tight enclosures or panel-mitted equipment. Feature → Business Impact → Application: Operating temperature range from -40 °C to 105 °C and UV-resistant materials ensure reliability across cold starts and sun-exposed equipment, minimizing climate-related failures on outdoor machinery. Application: conveyors, outdoor robotics, and wind/solar farm equipment. Feature → Business Impact → Application: Mating cycles rated at 250 cycles provide predictable lifecycle performance, aligning with preventive maintenance intervals and total cost of ownership targets. Application: frequently mated connectors in packaging lines and assembly cells. Feature → Business Impact → Application: Comprehensive compliance (UL 1977, IEC 61984, CSA-C22.2 No. 182.3) plus ROHS exemption confirms regulatory readiness for international deployments, reducing certification delays. Application: global deployments in automotive, automation, and industrial equipment. Additional compatibility notes: 5-pin arrangement, gold-plated contacts, and Souriau UTS-series compatibility ensure easy integration with existing Souriau components and common harnesses, delivering a smoother procurement process and lower total installed cost.
