Eaton UTS614E5PW Plastic Waterproof Connector - IP68/69K
Part Number: UTS614E5PW
Quick Summary
The Eaton UTS614E5PW plastic waterproof IP68/69K connector provides sealed, reliable interconnects for rugged industrial environments. Manufacturers and maintenance teams often struggle with moisture ingress, dust, and corrosion that lead to unexpected downtime; this design helps reduce field failures and costly rework. Compliant with IEC 61984 and UL 1977, with RoHS exemption 6.c and CSA-C22.2 No.182.3, it meets global safety and environmental requirements for diverse projects. Designed for easy installation and long service life, it aligns with Souriau UTS series wiring practices while delivering predictable performance in harsh conditions. With unmated IP68 sealing and 250 mating cycles, it supports scalable automation deployments and lower total cost of ownership.
Product Information
Extended Description

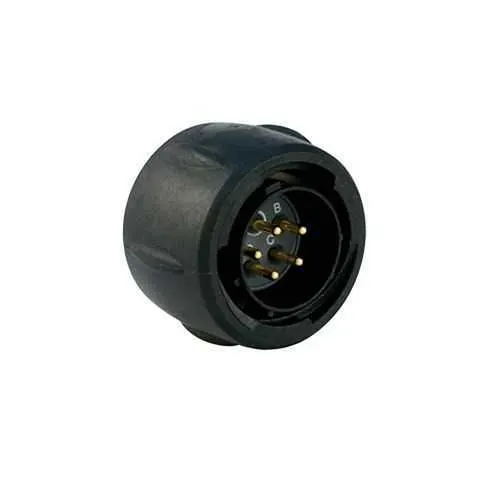

UTS614E5PW Eaton: Plastic plug, without backshell, with 5 male solder contacts, IP68/69K in unmated conditions, keying W; UTS614E5PW
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS614E5PW
Product Length/Depth
23.6 mm
Product Height
34.4 mm
Product Width
34.6 mm
Product Weight
20.4 g
Compliances
IEC 61984 (please contact us for more details) UL 1977 (please contact us for more details) ROHS exemption 6.c CSA-C22.2 No.182.3 (please contact us for more details)
Current rating
12 A UL 16 A IEC
Environmental conditions
Flammability rating UL94 HB REACH RoHS
Environmental resistance
Resistant against acid bath Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against basic bath Resistant against oil Resistant against mineral oil Resistant against gasoline UV resistant, no degradation after 5 years of exposure in natural environment
Test current
12 A CSA 12 A UL 16 A IEC
Test voltage
150 V IEC 600 V UL 600 V CSA
Connector accessory option
Not delivered, to be ordered separately
Connector orientation
W
Connector type
Plug
Contact delivery
Loaded
Contact gender
Pin (Male)
Contact plating
Gold
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Neoprene
Layout
5
Plug type
Straight Plug
Shell material
Plastic
Shell size
14
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
5
Number of cavity #16
5
Salt spray
500 hour
Feature: 5-position, gold-plated solder cup contacts provide robust electrical fidelity. Business Impact: Ensures low contact resistance and reliable signaling with reduced maintenance. Application: Sensors, actuators, and small power feeds in automation systems. Feature: IP68/69K rating with environmental resistance protects against water, dust, and chemical exposure. Business Impact: Extends service life in washdown environments and outdoor installations, lowering replacement costs. Application: Outdoor machinery, food & beverage equipment, and outdoor cranes. Feature: 1/3 Bayonet coupling offers fast, secure mating and easy field servicing. Business Impact: Shorter installation times and fewer tool-driven delays, improving project timelines. Application: Panel-to-cable harness connections in busy production lines. Feature: Operating temperature range from -40 °C to 105 °C supports high-temperature tolerance. Business Impact: Maintains performance in extreme environments, reducing risk of thermal failure. Application: Automation controllers near heat sources and outdoor equipment. Feature: 250 mating cycles demonstrate durable lifecycle performance. Business Impact: Lower lifecycle replacement costs and predictable maintenance planning. Application: Industrial control panels and machinery wiring with frequent disconnection. Feature: Plastic shell with neoprene insert delivers lightweight, chemical-resistant construction. Business Impact: Easier handling, corrosion resistance, and compatibility with diverse cable assemblies. Application: Harsh environments including oils and solvents, with long-term stability.
