Eaton UTS614E5PX Waterproof Plastic Connector - IP68/69K
Part Number: UTS614E5PX
Quick Summary
The Eaton UTS614E5PX is a waterproof plastic connector for reliable sensor interconnections in harsh industrial environments. A common pain point is moisture ingress and seal failure in washdown or outdoor sites, causing costly downtime. It provides IP68/IP69K protection, UL 1977 and IEC 61984 compliance, RoHS exemption 6.c, and CSA-C22.2 No.182.3 listings, aligning with regulatory and safety requirements. Coupled with a 5-pin layout and 1/3 bayonet coupling, it supports fast, field-friendly installation and scalable integration into control panels and equipment for growing automation needs.
Product Information
Extended Description

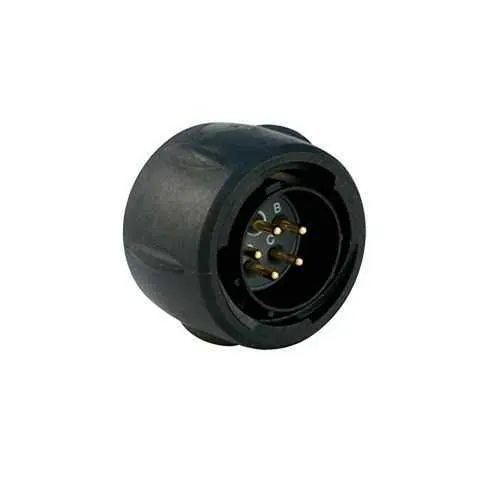

UTS614E5PX Eaton: Plastic plug, without backshell, with 5 male solder contacts, IP68/69K in unmated conditions, keying X; UTS614E5PX
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS614E5PX
Product Length/Depth
23.6 mm
Product Height
34.4 mm
Product Width
34.6 mm
Product Weight
20.4 g
Compliances
ROHS exemption 6.c CSA-C22.2 No.182.3 (please contact us for more details) UL 1977 (please contact us for more details) IEC 61984 (please contact us for more details)
Current rating
12 A UL 16 A IEC
Environmental conditions
Flammability rating UL94 HB RoHS REACH
Environmental resistance
Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against gasoline UV resistant, no degradation after 5 years of exposure in natural environment Resistant against mineral oil Resistant against acid bath Resistant against oil Resistant against basic bath
Test current
12 A UL 16 A IEC 12 A CSA
Test voltage
150 V IEC 600 V UL 600 V CSA
Connector accessory option
Not delivered, to be ordered separately
Connector orientation
X
Connector type
Plug
Contact delivery
Loaded
Contact gender
Pin (Male)
Contact plating
Gold
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Neoprene
Layout
5
Plug type
Straight Plug
Shell material
Plastic
Shell size
14
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
5
Number of cavity #16
5
Salt spray
500 hour
IP68/69K rated performance in unmated conditions protects against water, dust and aggressive washdown environments, reducing maintenance cycles and downtime in outdoor and harsh indoor applications. This translates to improved equipment availability and lower total cost of ownership for automation projects through robust sealing and long-term reliability. The connector’s 5-pin solder cup contacts with gold plating deliver low contact resistance and durable signal/power transfer in sensor and actuator networks, enhancing dependable device integration in factory floors and process lines. With a current rating of 12 A (UL) and 16 A (IEC), plus 12 A (CSA) test current and up to 600 V voltage rating, engineers can design panels with predictable performance for upper-level automation systems while maintaining compliance. Operating from -40 °C to 105 °C and featuring Neoprene insert material, UV resistance and salt spray endurance, the UTS614E5PX supports outdoor and washdown environments without sacrificing reliability or speed of installation. The 14 shell size and 5-position layout under a straight plug with 1/3 bayonet coupling simplify harness design and field terminations, enabling rapid assembly in panel and device interconnects. Note that plug accessories are not delivered and must be ordered separately, making it straightforward to tailor the coupling and protection to the specific installation while ensuring compatibility with the Souriau UTS series ecosystem. This combination of rugged performance and practical installation advantages addresses common objections about cost, complexity, and regulatory readiness in industrial automation projects.
