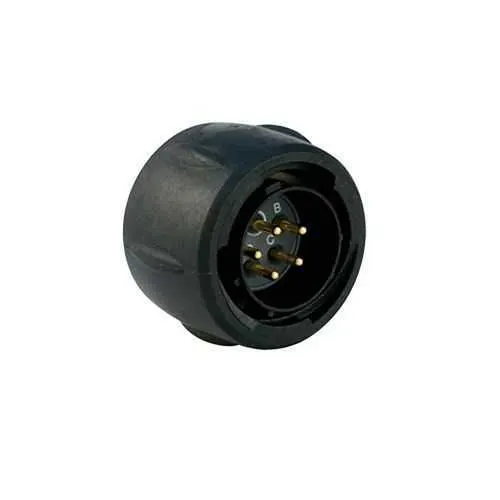

Eaton UTS614E5PY Plastic Waterproof Connector - IP68/69K
Part Number: UTS614E5PY
Quick Summary
The Eaton UTS614E5PY plastic waterproof connector delivers reliable IP68/69K sealing for harsh industrial environments. If your equipment operates in washdown areas, under oil exposure, or in dusty production lines, a brittle connection can cause unexpected downtime. This part complies with UL 1977, CSA-C22.2 No.182.3, and IEC 61984, with ROHS exemption 6.c, underscoring safety and regulatory alignment. Built for Souriau UTS compatibility, the 5-position plug offers durable gold-plated contacts and a 1/3 bayonet coupling to simplify field servicing. By combining rugged materials with proven performance, this connector supports higher line uptime and lower maintenance costs across automation, packaging, and material handling applications.
Product Information
Extended Description
UTS614E5PY Eaton: Plastic plug, without backshell, with 5 male solder contacts, IP68/69K in unmated conditions, keying Y; UTS614E5PY
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS614E5PY
Product Length/Depth
23.6 mm
Product Height
34.4 mm
Product Width
34.6 mm
Product Weight
20.4 g
Compliances
CSA-C22.2 No.182.3 (please contact us for more details) UL 1977 (please contact us for more details) IEC 61984 (please contact us for more details) ROHS exemption 6.c
Current rating
12 A UL 16 A IEC
Environmental conditions
Flammability rating UL94 HB REACH RoHS
Environmental resistance
Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against acid bath Resistant against mineral oil Resistant against oil UV resistant, no degradation after 5 years of exposure in natural environment Resistant against basic bath Resistant against gasoline
Test current
16 A IEC 12 A UL 12 A CSA
Test voltage
600 V CSA 150 V IEC 600 V UL
Connector accessory option
Not delivered, to be ordered separately
Connector orientation
Y
Connector type
Plug
Contact delivery
Loaded
Contact gender
Pin (Male)
Contact plating
Gold
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Neoprene
Layout
5
Plug type
Straight Plug
Shell material
Plastic
Shell size
14
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
5
Number of cavity #16
5
Salt spray
500 hour
The UTS614E5PY delivers robust IP68/69K sealing with a plastic shell to resist washdown environments, reducing ingress risk and equipment downtime in food, beverage, and outdoor machinery. Feature → Business Impact → Application: The 5-position male solder contacts with gold plating ensure low contact resistance and reliable signal transmission, which translates to improved control accuracy and fewer field failures in robotics and conveyor systems. The 1/3 bayonet coupling provides quick, tool-free mating, accelerating assembly and reducing commissioning time on production lines. Compatibility with the Souriau UTS series and a compact 14-shell size supports tight enclosures and easier retrofits. The plug is designed for 250 mating cycles, offering long-term durability and lower lifecycle costs in automation equipment. Operating from -40 °C to 105 °C supports diverse site conditions and reduces temperature-related maintenance.
Get a Quick Quote for a Eaton UTS614E5PY
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS614E5PY?
Enquire Now
FAQs
The UTS614E5PY is designed as a straight plug in the UTS series with a Y orientation and 1/3 Bayonet coupling. Backshells are not included and must be ordered separately; ensure the chosen backshell matches the UTS platform and the 14 shell size. For retrofit projects, verify mating connectors in the UTS family and confirm the adapter or backshell part numbers before purchase to maintain IP68/69K integrity.
The connector supports a current rating of 12 A (UL) and 16 A (IEC), with a tested current of 16 A IEC and 12 A CSA. Voltage ratings include 600 V (CSA) and 150 V (IEC) or UL equivalents. When designing, ensure your load current stays within these limits and consider derating in high-temperature environments to preserve long-term reliability.
With IP68/69K sealing, 5-position solder-cup contacts, and resistance to vibrations and oils, this connector is well-suited to robotics, conveyors, outdoor machinery, and washdown environments in manufacturing. Its compact plastic shell and Y-oriented, straight-plug design support tight enclosures and rapid field maintenance, reducing downtime in demanding automation setups.
The UTS614E5PY complies with UL 1977, IEC 61984, and CSA-C22.2 No.182.3, with ROHS exemption 6.c. These certifications support safety, electrical integrity, and environmental compliance in regulated industrial markets, enabling easier integration into certified equipment and end-user auditing processes.
Key value drivers include a 250 mating cycle rating, durable IP68/69K sealing, and gold-plated contacts that minimize contact resistance and corrosion. These features translate to lower maintenance frequency, reduced field failures, and longer service life in harsh environments, delivering lower total cost of ownership for automated lines and equipment fleets.
