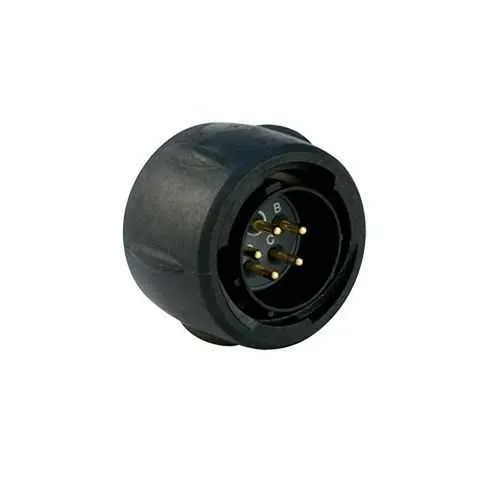

Eaton UTS614E5PZ Waterproof Plug - IP68/69K Rating
Part Number: UTS614E5PZ
Quick Summary
The Eaton Souriau UTS614E5PZ is a plastic waterproof IP68/69K plug connector for harsh industrial environments. Engineers frequently battle moisture ingress, difficult field wiring, and frequent maintenance with unreliable interfaces. This solution aligns with UL 1977 and IEC 61984 certifications while delivering RoHS exemption 6.c and robust IP68 sealing, supporting up to 250 mating cycles. Designed for quick installation and dependable operation, it enables secure, field-ready connectivity in outdoor panels and tough machinery, while keeping costs down and uptime high through reliable performance and straightforward compatibility with the UTS series.
Product Information
Extended Description
UTS614E5PZ Eaton: Plastic plug, without backshell, with 5 male solder contacts, IP68/69K in unmated conditions, keying Z; UTS614E5PZ
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS614E5PZ
Product Length/Depth
23.6 mm
Product Height
34.4 mm
Product Width
34.6 mm
Product Weight
20.4 g
Compliances
CSA-C22.2 No.182.3 (please contact us for more details) IEC 61984 (please contact us for more details) ROHS exemption 6.c UL 1977 (please contact us for more details)
Current rating
16 A IEC 12 A UL
Environmental conditions
RoHS Flammability rating UL94 HB REACH
Environmental resistance
Resistant against oil Resistant against gasoline Resistant against mineral oil Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against acid bath UV resistant, no degradation after 5 years of exposure in natural environment Resistant against basic bath
Test current
12 A CSA 16 A IEC 12 A UL
Test voltage
150 V IEC 600 V UL 600 V CSA
Connector accessory option
Not delivered, to be ordered separately
Connector orientation
Z
Connector type
Plug
Contact delivery
Loaded
Contact gender
Pin (Male)
Contact plating
Gold
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Neoprene
Layout
5
Plug type
Straight Plug
Shell material
Plastic
Shell size
14
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
5
Number of cavity #16
5
Salt spray
500 hour
Feature → The UTS614E5PZ uses a 5-position solder cup contact arrangement with gold plating to ensure low contact resistance and corrosion resistance. Business Impact → This translates to consistent electrical performance, reduced maintenance, and longer connector life in demanding environments. Application → Ideal for control panels and outdoor equipment where reliable five-pin connections are required in harsh conditions. Feature → 1/3 bayonet coupling with Z-key orientation provides fast, secure mating while preventing misalignment. Business Impact → Speedier assembly and fewer rework incidents on the line, improving installation efficiency and reducing downtime. Application → Suitable for field wiring on heavy machinery and automation cabinets. Feature → IP68 sealing and rugged plastic shell with neoprene insert delivers superior environmental resistance. Business Impact → Protects against water, dust, oil, and chemical exposure, lowering failure rates and extending service intervals. Application → Outdoor equipment, mining, and industrial automation in hazardous environments. Feature → Operating temperature range of -40 °C to 105 °C supports wide ambient conditions. Business Impact → Maintains reliable performance across seasons and hot work environments, reducing thermal-related outages. Application → Automotive, energy, and process industries with extreme temperature swings. Feature → 16 A IEC / 12 A UL current rating and 150 V IEC / 600 V UL/CSA test voltage ensure robust power delivery. Business Impact → Enables safe, standards-compliant power distribution and circuit integrity within heavy-duty systems. Application → Industrial controls, machine builders, and panel builders seeking proven electrical endurance. Feature → 250 mating cycles and 5 contacts with gold-plated copper provide long life and low maintenance costs. Business Impact → Predictable lifecycle costs, fewer replacements, and consistent performance across service intervals. Application → Replacement-worthy, high-cycle connectors for conveyors and packaging lines.
Get a Quick Quote for a Eaton UTS614E5PZ
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS614E5PZ?
Enquire Now
FAQs
The UTS614E5PZ uses a Z-keyed orientation and a 1/3 bayonet coupling. Align the keying, push the plug into the receptacle, then twist to engage the bayonet lock. Ensure the neoprene insert seats properly to achieve the IP68 seal and confirm gold-plated solder cups are clean before soldering.
This connector supports 16 A IEC and 12 A UL current ratings, with a test current of 12 A CSA/16 A IEC/12 A UL and a test voltage of 150 V IEC / 600 V UL / CSA. It has 5 contacts with gold plating and a solder cup contact type, suitable for robust control wiring.
Yes. The UTS614E5PZ is rated IP68, offering excellent sealing against water and dust. It is resistant to oil, gasoline, mineral oils, UV exposure, and chemical baths, making it well-suited for outdoor panels, mining equipment, and demanding industrial settings.
The connector complies with UL 1977 and IEC 61984, with RoHS exemption 6.c, and CSA-C22.2 No.182.3. These certifications support regulatory acceptance in North American and international markets and help ensure safe, compliant integration in engineered systems.
With up to 250 mating cycles, the UTS614E5PZ delivers predictable lifecycle performance, reducing replacement frequency and maintenance downtime. The gold-plated contacts minimize wear and corrosion, supporting longer service intervals and lower total cost of ownership in automation cabinets and field installations.
