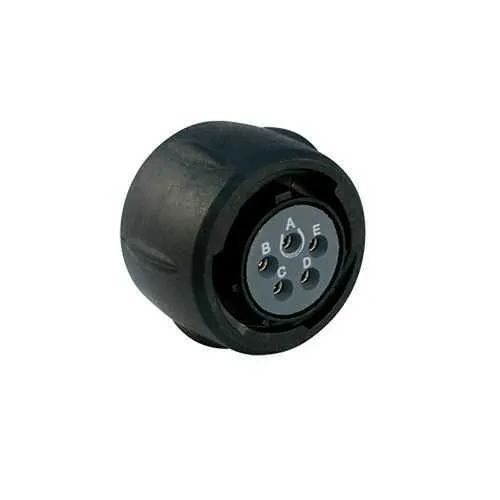

Eaton UTS614E5SW Plastic Waterproof Connector - IP68/69K
Part Number: UTS614E5SW
Quick Summary
The Eaton Souriau UTS614E5SW is a plastic waterproof IP68/69K connector designed for harsh environments in industrial equipment and machinery. When assemblies operate in wet, dusty, or washdown settings, ingress and corrosion can drive unplanned downtime and repair cost. It complies with IEC 61984, UL 1977, and CSA-C22.2 No.182.3, along with ROHS exemption 6.c, ensuring regulatory readiness for global projects. As part of the Souriau UTS family, this 5-contact plug features W-keying and a fast 1/3 bayonet coupling, delivering secure mating and quick field installation. This combination reduces installation time and lifecycle costs, while maintaining high reliability for automation, robotics, and outdoor machinery.
Product Information
Extended Description
UTS614E5SW Eaton: Plastic plug, without backshell, with 5 female solder contacts, IP68/69K in unmated conditions, keying W; UTS614E5SW
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS614E5SW
Product Length/Depth
23.6 mm
Product Height
34.4 mm
Product Width
34.6 mm
Product Weight
23 g
Compliances
IEC 61984 (please contact us for more details) UL 1977 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details) ROHS exemption 6.c
Current rating
16 A IEC 12 A UL
Environmental conditions
RoHS REACH Flammability rating UL94 HB
Environmental resistance
Resistant against basic bath Resistant against gasoline Resistant against acid bath Resistant against oil UV resistant, no degradation after 5 years of exposure in natural environment Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against mineral oil
Test current
16 A IEC 12 A CSA 12 A UL
Test voltage
600 V UL 600 V CSA 150 V IEC
Connector accessory option
Not delivered, to be ordered separately
Connector orientation
W
Connector type
Plug
Contact delivery
Loaded
Contact gender
Socket (Female)
Contact plating
Gold
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Neoprene
Layout
5
Plug type
Straight Plug
Shell material
Plastic
Shell size
14
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
5
Number of cavity #16
5
Salt spray
500 hour
IP68/69K protection provides robust ingress resistance in wet and dusty environments, while the compact 5-contact plug minimizes enclosure size and helps reduce overall system costs. This translates to lower downtime and fewer field service calls when machines operate in washdown zones, outdoor equipment, or rugged production lines. Gold-plated solder cup contacts deliver low contact resistance and stable performance across temperature swings, improving signal integrity and reducing maintenance cycles in corrosive or humid conditions. The 1/3 bayonet coupling with W-keying speeds mating and disassembly, cutting installation time and error rates, and integrates smoothly with the Souriau UTS series interfaces. The assembled unit handles vibration and chemical exposure thanks to a neoprene insert and plastic shell, supporting lightweight, cost-efficient designs. With a 16 A current rating and 600 V test voltage, it supports demanding automation and robotics applications, while a 250-mating-cycle life reduces replacement frequency and total cost of ownership.
Get a Quick Quote for a Eaton UTS614E5SW
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS614E5SW?
Enquire Now
FAQs
UTS614E5SW uses the Souriau UTS series interface with a 1/3 bayonet coupling and a W orientation for plug-to-socket mating. It is designed as a plug with 5 female solder contacts and does not include a backshell by default; backshell accessories can be ordered separately to extend protection and strain relief for field installations.
The connector is rated for 16 A (IEC) and 12 A (UL/CSA) with a test voltage of 600 V (UL/CSA) and 150 V (IEC). It uses gold-plated solder cup contacts and supports 5 positions, suitable for power or signal leads in demanding automation environments.
Yes. The UTS614E5SW provides IP68 protection in unmated conditions and is rated for operation from -40 °C to 105 °C, with UV and chemical resistance. It is designed for harsh environments such as washdown areas, outdoor equipment, and rugged manufacturing lines.
The connector supports up to 250 mating cycles, offering reliable performance for frequent connect/disconnect operations common in automation, robotics, and field maintenance scenarios.
Key compliances include IEC 61984, UL 1977, CSA-C22.2 No.182.3, and ROHS exemption 6.c. Refer to these when validating regulatory alignment for global deployments and supplier qualification.
