Eaton UTS614E5SX Plug - IP68/69K Waterproof Connector
Part Number: UTS614E5SX
Quick Summary
Eaton Souriau UTS614E5SX waterproof plug provides sealed electrical connectivity for harsh industrial environments. It addresses ingress, vibration, and maintenance headaches by delivering IP68/69K protection in unmated and mixed-duty systems. The design carries UL 1977, IEC 61984, and CSA-C22.2 No.182.3 certifications, with RoHS exemption 6.c, supporting global compliance. For engineers, field installation is streamlined thanks to ready-to-use solder-cup contacts and a compact footprint. The 5-position layout with 12 A current rating enables reliable power delivery in compact assemblies, reducing downtime and total cost of ownership in equipment exposed to dust, water, and temperature swings up to 105 °C.
Product Information
Extended Description

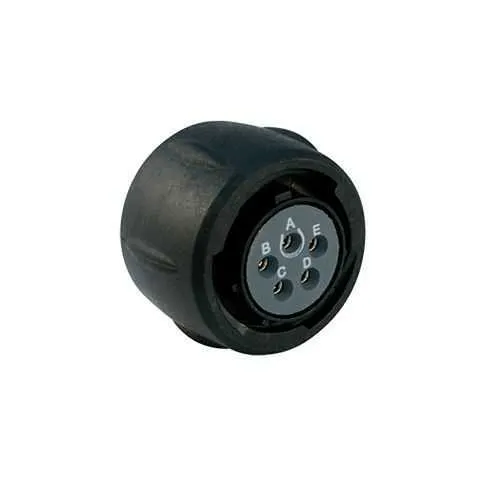

UTS614E5SX Eaton: Plastic plug, without backshell, with 5 female solder contacts, IP68/69K in unmated conditions, keying X; UTS614E5SX
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS614E5SX
Product Length/Depth
23.6 mm
Product Height
34.4 mm
Product Width
34.6 mm
Product Weight
23 g
Compliances
UL 1977 (please contact us for more details) IEC 61984 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details) ROHS exemption 6.c
Current rating
12 A UL 16 A IEC
Environmental conditions
RoHS Flammability rating UL94 HB REACH
Environmental resistance
Resistant against gasoline Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against acid bath Resistant against mineral oil Resistant against basic bath Resistant against oil UV resistant, no degradation after 5 years of exposure in natural environment
Test current
12 A CSA 12 A UL 16 A IEC
Test voltage
600 V UL 600 V CSA 150 V IEC
Connector accessory option
Not delivered, to be ordered separately
Connector orientation
X
Connector type
Plug
Contact delivery
Loaded
Contact gender
Socket (Female)
Contact plating
Gold
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Neoprene
Layout
5
Plug type
Straight Plug
Shell material
Plastic
Shell size
14
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
5
Number of cavity #16
5
Salt spray
500 hour
Feature → Business Impact → Application. The IP68/IP69K rating and robust environmental resistance protect against ingress and corrosion, reducing field failures and maintenance costs in outdoor and wash-down environments. This translates to higher uptime for conveyors, robotics, and mobile machinery operating under harsh conditions. The 5 solder-cup contacts with gold plating deliver reliable, low-resistance connections for power and signal, improving consistency in control panels and automated systems while supporting a compact 23.6 mm depth footprint. The 1/3 bayonet coupling enables quick mate/demate cycles, lowering service time during upgrades or repairs and minimizing downtime in production lines. With 12 A current and up to 600 V rating, it supports demanding automation loads without overdesign, enabling cost-effective scaling. Operating temperatures from -40 °C to 105 °C and UV- and oil-resistant materials ensure longevity in extreme environments, reducing replacement cycles. The molded plastic shell and neoprene insert provide durable housing that withstands vibration (10–2000 Hz) and exposure to mineral oil and gasoline, offering a resilient solution for mobile equipment and heavy-duty machinery. The connector is designed for field wiring with solder cup contacts, ensuring straightforward termination and reliable long-term performance in rugged environments.
