Eaton UTS61823PX Plastic Connector - IP68/69K
Part Number: UTS61823PX
Quick Summary
Eaton Souriau UTS61823PX is a plastic waterproof IP68/69K connector designed for rugged industrial environments. Field installations frequently struggle with moisture ingress, failed seals, and difficult mating in tight spaces. This connector carries IP68 sealing and complies with UL 1977 and IEC 61984, with CSA-C22.2 No.182.3 guidelines for added assurance. For OEMs and maintenance teams, the 23-contact crimp design, 1/3 bayonet coupling, and optional quick-release features translate into faster assembly, easier servicing, and lower total cost of ownership. Designed for wide temperature swings, operating from -40 °C to 105 °C, it supports harsh environments. It also features UV resistance and fire-and-smoke ratings to meet safety standards.
Product Information
Extended Description

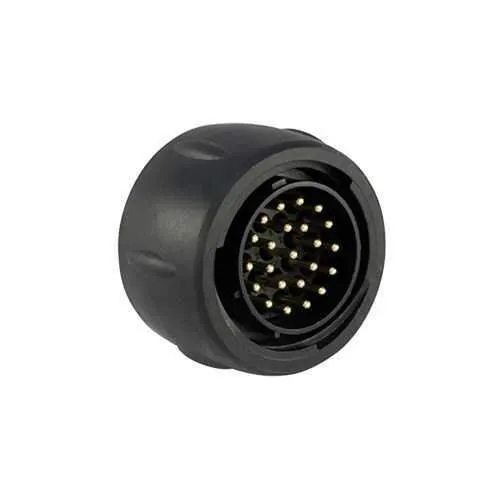

UTS61823PX Eaton: Plastic plug, without backshell, for 23 male contacts, IP68/69K, keying X; UTS61823PX
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS61823PX
Product Length/Depth
37 mm
Product Height
41.3 mm
Product Width
41.3 mm
Product Weight
26 g
Compliances
CSA-C22.2 No.182.3 (please contact us for more details) IEC 61984 (please contact us for more details) UL 1977 (please contact us for more details)
Current rating
9 A IEC 10 A UL
Fitted with:
Last mate first break capability(optional) First mate last break capability(optional)
Environmental conditions
Flammability rating UL94 V0 REACH RoHS Fire and smoke rating I2F3 according to NFF 16101 and NFF 16102 Fire & Smoke
Environmental resistance
Resistant against mineral oil Resistant against basic bath UV resistant, no degradation after 5 years of exposure in natural environment Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against gasoline Resistant against acid bath Resistant against oil
Test current
10 A UL 7 A CSA 9 A IEC
Test voltage
500 V UL 500 V CSA 63 V IEC
Connector accessory option
Not delivered, to be ordered separately
Connector orientation
X
Connector type
Plug
Contact delivery
Not delivered
Contact gender
Pin (Male)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Layout
23
Plug type
Straight Plug
Shell material
Plastic
Shell size
18
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
23
Number of cavity #16
23
Salt spray
500 hour
Feature: IP68/69K protection and 23-position polyamide insert; Business Impact: ensures reliable sealing and signal integrity in washdown areas and outdoors; Application: food processing lines, outdoor automation, and mining equipment. Feature: 1/3 bayonet coupling with a straight plug; Business Impact: faster mating and secure retention reduces downtime; Application: field installations and panel-to-harness connections. Feature: 23 pins with male crimp contacts; Business Impact: supports complex signal and control networks in a compact footprint; Application: industrial automation, machine builders, and control cabinets. Feature: Operating temp -40 to 105 C and UV resistance; Business Impact: broad temperature resilience reduces spare part variety and downtime; Application: outdoor installations, rail rolling stock, and automotive test rigs. Feature: Electrical ratings and test specs; Business Impact: IEC 9 A / UL 10 A current capability with 500 V testing supports safe, reliable power and signal transfer; Application: moderate-power sensors, actuators, and control lines. Feature: Compliance and accessories; Business Impact: regulatory alignment with UL 1977, IEC 61984, CSA-C22.2 No.182.3 reduces certification risk; Application: OEM assemblies and certified equipment builds. Feature: Accessory and installation notes; Business Impact: “Not delivered” backshells or connectors can be ordered separately to tailor harnesses; Application: modular procurement for custom harnessing.
