Eaton UTS61823SX Connector - IP68/69K Waterproof
Part Number: UTS61823SX
Quick Summary
Eaton UTS61823SX connector provides a rugged, IP68/69K rated interface for harsh outdoor and industrial equipment. Many teams struggle with moisture ingress and field failures in demanding environments; this plug is designed to minimize those risks through sealing, robust materials, and high mating cycles. It complies with IEC 61984, UL 1977, and CSA-C22.2 No.182.3, delivering reliable performance across harsh conditions while enabling scalable automation installs. With a 23-contact configuration and 1/3 bayonet coupling, it offers a practical balance of connectivity density and ease of assembly, helping OEMs and service teams reduce downtime and total cost of ownership.
Product Information
Extended Description

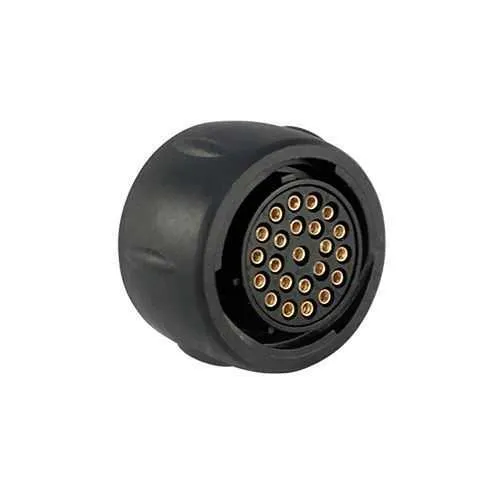

UTS61823SX Eaton: Plastic plug, without backshell, for 23 female contacts, IP68/69K, keying X; UTS61823SX
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS61823SX
Product Length/Depth
37 mm
Product Height
41.3 mm
Product Width
41.3 mm
Product Weight
26.2 g
Compliances
IEC 61984 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details) UL 1977 (please contact us for more details)
Current rating
9 A IEC 10 A UL
Fitted with:
First mate last break capability(optional) Last mate first break capability(optional)
Environmental conditions
Fire & Smoke Flammability rating UL94 V0 RoHS REACH Fire and smoke rating I2F3 according to NFF 16101 and NFF 16102
Environmental resistance
Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz UV resistant, no degradation after 5 years of exposure in natural environment Resistant against oil Resistant against mineral oil Resistant against basic bath Resistant against acid bath Resistant against gasoline
Test current
9 A IEC 10 A UL 7 A CSA
Test voltage
500 V UL 63 V IEC 500 V CSA
Connector accessory option
Not delivered, to be ordered separately
Connector orientation
X
Connector type
Plug
Contact delivery
Not delivered
Contact gender
Socket (Female)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Layout
23
Plug type
Straight Plug
Shell material
Plastic
Shell size
18
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
23
Number of cavity #16
23
Salt spray
500 hour
