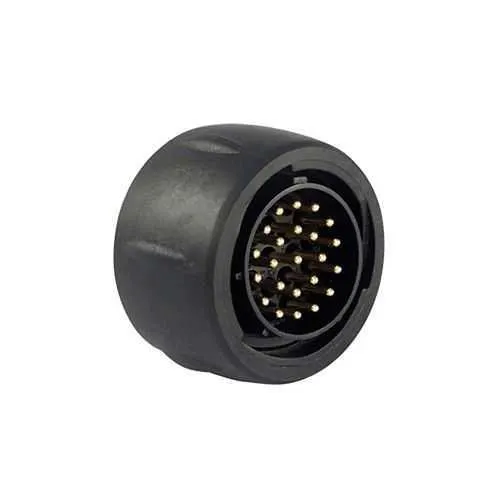

Eaton UTS61832P Connector - Waterproof Plug IP68/69K
Part Number: UTS61832P
Quick Summary
Eaton UTS61832P is a plastic waterproof IP68/69K connector for industrial machinery and outdoor equipment. Engineers often struggle with moisture ingress and unreliable connections in demanding mobile or outdoor setups. This series meets IEC 61984, UL 1977, and CSA-C22.2 No.182.3, with RoHS and REACH compliance to support global deployments. Its 32-position plug with a 1/3 bayonet coupling and robust polyamide insert delivers secure mating, while a compact footprint simplifies panel and harness design. By standardizing on UTS61832P, procurement and maintenance become more predictable, reducing spares and downtime while enabling scalable configurations across projects.
Product Information
Extended Description
UTS61832P Eaton: Plastic plug, without backshell, for 32 male contacts, IP68/69K; UTS61832P
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS61832P
Product Length/Depth
37 mm
Product Height
41.3 mm
Product Width
41.3 mm
Product Weight
26.8 g
Compliances
CSA-C22.2 No.182.3 (please contact us for more details) UL 1977 (please contact us for more details) IEC 61984 (please contact us for more details)
Current rating
4 A IEC 5 A UL
Environmental conditions
Fire & Smoke REACH Flammability rating UL94 V0 Fire and smoke rating I2F3 according to NFF 16101 and NFF 16102 RoHS
Environmental resistance
Resistant against mineral oil Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against oil Resistant against basic bath UV resistant, no degradation after 5 years of exposure in natural environment Resistant against gasoline Resistant against acid bath
Test current
4 A CSA 4 A IEC 5 A UL
Test voltage
32 V IEC 250 V UL 250 V CSA
Connector accessory option
Not delivered, to be ordered separately
Connector orientation
N
Connector type
Plug
Contact delivery
Not delivered
Contact gender
Pin (Male)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Layout
32
Plug type
Straight Plug
Shell material
Plastic
Shell size
18
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
32
Number of cavity #20
32
Salt spray
500 hour
Feature: IP68/69K protection and 32-contact layout; Business Impact: Protects against water, dust and contaminants in harsh environments, extending equipment life and reducing field failures; Application: Outdoor automation stations and washdown environments benefit from reliable power and signal integrity. Feature: 1/3 bayonet coupling; Business Impact: Quick, tool-free mating with strong vibration resistance, cutting installation time and maintenance costs; Application: Mobile machines and field devices where uptime matters. Feature: Polyamide insert with plastic shell; Business Impact: Lightweight, resilient housing with chemical resistance lowers wear and inventory weight while improving impact resistance; Application: Agricultural robotics and rugged control panels. Feature: 32 contacts with crimp contact delivery; Business Impact: Higher density wiring supports complex control and sensor networks without increasing footprint; Application: Multi-sensor arrays and servo-driven systems. Feature: Electrical ratings and safety; Business Impact: 4 A IEC and 5 A UL ratings with 32 V IEC and 250 V UL/CSA test voltages provide safe operation across regions, reducing regulatory risk; Application: Control circuits and signal lines in equipment operating at varied standards. Feature: Operating range and durability; Business Impact: -40 °C to 105 °C capability and 250 mating cycles deliver consistent performance in extreme climates; Application: Outdoor weather stations and marine or off-road equipment.
Get a Quick Quote for a Eaton UTS61832P
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS61832P?
Enquire Now
FAQs
Yes. The UTS61832P is a 32‑position straight plug within the UTS family and uses a 1/3 bayonet coupling for secure, fast mating. It employs crimp contacts and is designed for exchange within Souriau UTS system housings, simplifying field upgrades and panel harness integration while maintaining IP68/69K protection.
The connector provides 4 A current rating (IEC) and 5 A (UL) with test voltages of 32 V (IEC) and 250 V (UL/CSA). It accommodates 32 contacts in a 32‑cavity layout, suitable for control signals and low‑voltage power, while meeting safety and interoperability requirements across regions.
Yes. The UTS61832P carries IP68 protection (and 69K in relevant conditions), is UV and chemical resistant, and withstands mineral oils and basic baths. Its wide operating temperature range (-40 °C to 105 °C) makes it suitable for outdoor installations, mobile machinery, and washdown environments where reliability is critical.
The connector complies with IEC 61984, UL 1977, and CSA-C22.2 No.182.3, with RoHS and REACH declarations. These certifications support global deployment, regulatory compliance, and user safety for diverse automation projects.
With 250 mating cycles and a compact, lightweight design (26.8 g), the UTS61832P reduces downtime and inventory weight. The robust 32‑contact layout enables higher wiring density, lowering spares costs, and simplifying upgrades or replacements in complex control panels and field deployments.
