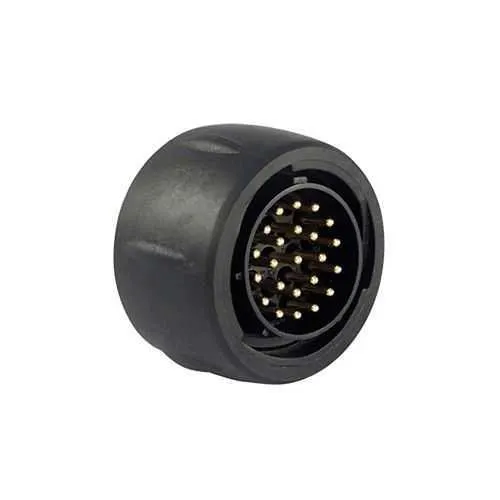

Eaton UTS61832PW IP68/69k Plastic Waterproof Plug IP68/69k
Part Number: UTS61832PW
Quick Summary
UTS61832PW is a plastic waterproof IP68/69k connector for rugged industrial wiring. Maintenance costs rise and downtime increase when connectors fail in oil, dust, or chemical exposure. It aligns with IEC 61984, UL 1977, and CSA-C22.2 No.182.3, ensuring electrical safety and regulatory compliance in harsh environments. As part of the Souriau UTS series, this 32-contact plug enables quick field assembly, robust vibration resistance, and reliable IP68 protection from -40 °C to 105 °C, supporting efficient installations and long-term reliability for OEMs and service teams.
Product Information
Extended Description
UTS61832PW Eaton: Plastic plug, without backshell, for 32 male contacts, IP68/69K, keying W; UTS61832PW
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS61832PW
Product Length/Depth
37 mm
Product Height
41.3 mm
Product Width
41.3 mm
Product Weight
26.8 g
Compliances
IEC 61984 (please contact us for more details) UL 1977 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details)
Current rating
4 A IEC 5 A UL
Environmental conditions
RoHS Fire & Smoke REACH Fire and smoke rating I2F3 according to NFF 16101 and NFF 16102 Flammability rating UL94 V0
Environmental resistance
Resistant against mineral oil Resistant against gasoline Resistant against basic bath Resistant against acid bath Resistant against oil UV resistant, no degradation after 5 years of exposure in natural environment Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz
Test current
4 A IEC 4 A CSA 5 A UL
Test voltage
250 V CSA 250 V UL 32 V IEC
Connector accessory option
Not delivered, to be ordered separately
Connector orientation
W
Connector type
Plug
Contact delivery
Not delivered
Contact gender
Pin (Male)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Layout
32
Plug type
Straight Plug
Shell material
Plastic
Shell size
18
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
32
Number of cavity #20
32
Salt spray
500 hour
IP68/69k sealing and environmental resistance provide near-waterproof performance, protecting equipment in harsh industrial settings and reducing field repair costs. This high-density 32-contact layout, combined with a 1/3 bayonet coupling and crimp contacts, enables tighter harnesses and faster assembly, decreasing installation time and labor costs in tight control panels and mobile machinery. Operating from -40 °C to 105 °C supports outdoor and underground applications, while proven UV resistance and mineral oil/gasoline resistance minimize degradation in harsh environments, lowering maintenance frequency. The polyamide insert and plastic shell deliver durable, lightweight construction with good chemical compatibility, contributing to lower total cost of ownership over the equipment lifecycle. Compliance with IEC 61984, UL 1977, and CSA-C22.2 No.182.3 ensures procurement consistency and regulatory confidence for OEMs. This plug interworks with the Souriau UTS family, enabling scalable, modular harness design for evolving machine architectures.
Get a Quick Quote for a Eaton UTS61832PW
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS61832PW?
Enquire Now
FAQs
UTS61832PW uses crimp contacts and a 1/3 bayonet coupling for quick, secure mating. Ensure correct W-key orientation, prepare 32 conductors with compatible crimp contacts, and verify that the mating side aligns with the Souriau UTS family. Use proper strain relief and sealing to maintain IP68 performance during service loops and vibration. For field repairs, keep spare backshell accessories available and follow standard industry practices for connector re-termination and harness routing to minimize moisture ingress and corrosion risk.
The UTS61832PW delivers IP68/69K sealing through robust plastic housing, heat-stable polyamide inserts, and tight mated interfaces. Its environmental resistance includes oil, gasoline, mineral oil, and UV exposure, while operating across -40 °C to 105 °C. This combination reduces water and dust ingress, extending connector life in outdoor equipment, heavy machinery, and marine-adjacent installations, lowering downtime and maintenance costs.
Yes. The UTS61832PW is part of the Souriau UTS family and uses standard 32-way configurations with compatible 1/3 bayonet coupling. When integrating into existing harnesses, verify mating orientation (W) and ensure terminal crimp contact compatibility. Using standard UTS components facilitates modular upgrades and scalable harness design for future projects without rework.
The connector adheres to IEC 61984, UL 1977, and CSA-C22.2 No.182.3, with RoHS and UL94 V0 flame rating supporting safety and environmental compliance. These certifications simplify supplier qualification, procurement, and regulatory audits for machinery within industrial, automation, and mobile equipment environments.
With 32 mating contacts and a listed 250 mating cycles, the UTS61832PW is designed for durable industrial use with predictable wear. The robust IP68/69K protection reduces ingress-related failures, leading to lower unplanned maintenance and longer intervals between field service actions. Compatibility with standard crimp processes further lowers termination costs and downtime during harness repairs or expansions.
