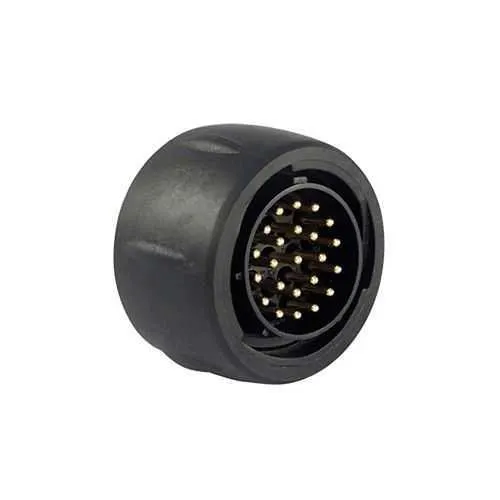

Eaton UTS61832PX Connector - IP68/69K Waterproof Plug
Part Number: UTS61832PX
Quick Summary
The Eaton Souriau UTS61832PX plastic waterproof connector is designed for rugged, IP68/69K-rated connections in harsh outdoor and wet environments. This helps operators avoid costly shutdowns caused by water ingress and corrosion in cabling assemblies. It supports IEC 61984, UL 1977, and CSA-C22.2 No.182.3 compliance, underscoring global safety and interchangeability. With 32 contacts, a compact 37 mm depth, and a 4 A IEC/5 A UL rating, it delivers reliable, field-installable connectivity for industrial automation, mobile equipment, and harsh-site installations. The UTS61832PX blends Souriau’s proven performance with ease of installation and long-term reliability, making it a practical choice for engineers seeking robust, scalable solutions.
Product Information
Extended Description
UTS61832PX Eaton: Plastic plug, without backshell, for 32 male contacts, IP68/69K, keying X; UTS61832PX
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS61832PX
Product Length/Depth
37 mm
Product Height
41.3 mm
Product Width
41.3 mm
Product Weight
26.8 g
Compliances
IEC 61984 (please contact us for more details) UL 1977 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details)
Current rating
4 A IEC 5 A UL
Environmental conditions
Flammability rating UL94 V0 Fire & Smoke Fire and smoke rating I2F3 according to NFF 16101 and NFF 16102 REACH RoHS
Environmental resistance
Resistant against gasoline Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against mineral oil UV resistant, no degradation after 5 years of exposure in natural environment Resistant against acid bath Resistant against basic bath Resistant against oil
Test current
4 A CSA 4 A IEC 5 A UL
Test voltage
32 V IEC 250 V UL 250 V CSA
Connector accessory option
Not delivered, to be ordered separately
Connector orientation
X
Connector type
Plug
Contact delivery
Not delivered
Contact gender
Pin (Male)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Layout
32
Plug type
Straight Plug
Shell material
Plastic
Shell size
18
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
32
Number of cavity #20
32
Salt spray
500 hour
Feature to Business Impact to Application: The 32-position layout consolidates multiple signals into a single plug, reducing assembly complexity and harness length while improving system integrity for industrial automation projects. This translates to lower wiring errors, faster installation, and measurable maintenance savings on complex equipment used in outdoor environments. Feature to Business Impact to Application: IP68/69K waterproof rating protects against water, dust, and high-pressure washdowns, delivering uptime in manufacturing floors, outdoor equipment, and mobile machinery where exposure is common. This reduces unexpected downtime and extends service intervals in critical automation lines. Feature to Business Impact to Application: 1/3 bayonet coupling enables quick mating and unmating, speeding field servicing and diagnostics without tools, ideal for service teams supporting offshore, mining, or agricultural equipment. Feature to Business Impact to Application: Polyamide insert and plastic shell offer resistance to chemicals and UV exposure, improving longevity in corrosive or sun-heavy environments typical of outdoor control cabinets. Feature to Business Impact to Application: Operating range from -40 °C to 105 °C ensures reliable performance across harsh climates and equipment racks, boosting system resilience in automation, packaging, and rail applications. Feature to Business Impact to Application: 250 mating cycles indicate durability for frequent maintenance scenarios, supporting lifecycle cost reduction and predictable component replacement in critical control systems. Additionally, crimp contact delivery, straight plug configuration, and 32 V/250 V voltage ratings simplify procurement, installation, and integration with existing Eaton Souriau IP68 connectors in complex industrial networks.
Get a Quick Quote for a Eaton UTS61832PX
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS61832PX?
Enquire Now
FAQs
To install the UTS61832PX, align the 32-pin plug with the mating receptacle, engage the 1/3 bayonet coupling with a simple twist until it seats, and verify the keying X orientation. Use crimp contacts as specified for the harness, ensure the integrity of the polyamide insert, and secure the assembly with appropriate sealing where IP68/69K protection is required. This approach minimizes ingress paths and accelerates field mounting.
The UTS61832PX supports 4 A IEC and 5 A UL current ratings, with test current matching at 4 A IEC/CSA and 5 A UL. It is rated for voltages up to 32 V IEC and 250 V UL/CSA, and operates from -40 °C to 105 °C. These specs enable reliable performance in automotive, industrial automation, and outdoor equipment applications.
Yes. The connector is designed for IP68/69K protection, offering robust ingress protection against water, dust, and severe washdown conditions. Its plastic shell, polyamide insert, and seal provisions are optimized for harsh environments typical of outdoor automation, mining, and heavy equipment, ensuring long-term reliability in demanding industrial settings.
Compliance includes IEC 61984, UL 1977, and CSA-C22.2 No.182.3, reflecting alignment with international electrical safety and interconnect standards. When designing systems for global markets, these certifications support safer, interoperable connections while facilitating supplierQualification and installation approvals in various regions.
The UTS61832PX provides up to 250 mating cycles, indicating solid longevity for serviceable systems. For maintenance, ensure correct mating alignment, verify seal integrity after exposure to harsh environments, and replace any damaged components promptly. Regular inspection of the crimp contacts and plug housing helps sustain low resistance and consistent performance over the equipment life.
