Eaton UTS61832S Plastic Waterproof Connector IP68/69k
Part Number: UTS61832S
Quick Summary
UTS61832S from Eaton is a rugged plastic waterproof connector designed for harsh industrial environments. Engineers often struggle with ingress protection, moisture-related downtime, and field reliability in wet or oily plants. This solution delivers robust IP68/69k sealing and is compliant with IEC 61984, UL 1977, and CSA-C22.2 No.182.3, enabling safe, certified installation across global operations. The design also supports a 32‑position interface and 1/3 bayonet coupling, reducing wiring complexity and accelerating panel integrations. By coupling high durability with straightforward installation, it translates to lower maintenance costs and improved asset uptime for automated equipment in harsh conditions.
Product Information
Extended Description

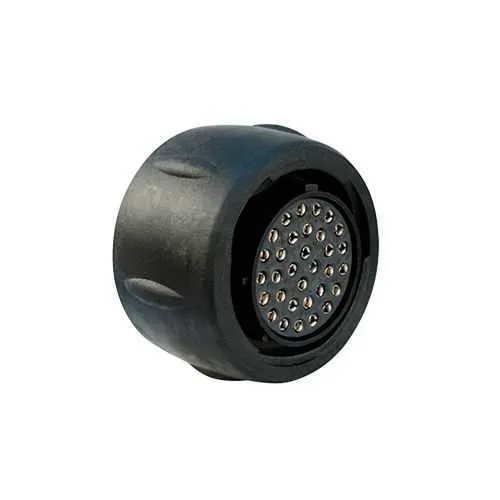

UTS61832S Eaton: Plastic plug, without backshell, for 32 female contacts, IP68/69K; UTS61832S
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS61832S
Product Length/Depth
37 mm
Product Height
41.3 mm
Product Width
41.3 mm
Product Weight
26.6 g
Compliances
CSA-C22.2 No.182.3 (please contact us for more details) IEC 61984 (please contact us for more details) UL 1977 (please contact us for more details)
Current rating
5 A UL 4 A IEC
Environmental conditions
Fire & Smoke REACH Flammability rating UL94 V0 Fire and smoke rating I2F3 according to NFF 16101 and NFF 16102 RoHS
Environmental resistance
Resistant against mineral oil Resistant against oil Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz UV resistant, no degradation after 5 years of exposure in natural environment Resistant against gasoline Resistant against basic bath Resistant against acid bath
Test current
4 A CSA 5 A UL 4 A IEC
Test voltage
250 V UL 32 V IEC 250 V CSA
Connector accessory option
Not delivered, to be ordered separately
Connector orientation
N
Connector type
Plug
Contact delivery
Not delivered
Contact gender
Socket (Female)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Layout
32
Plug type
Straight Plug
Shell material
Plastic
Shell size
18
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
32
Number of cavity #20
32
Salt spray
500 hour
Feature → Business Impact → Application: The UTS61832S uses a plastic shell with a polyamide insert and an IP68 rating, delivering superior ingress protection that minimizes moisture-related failures in outdoor or damp environments. This reduces unplanned downtime and extends the service life of critical automation cables in mining, agricultural, and construction equipment. Feature → Business Impact → Application: With 32 contact positions and a straight plug design, the connector enables compact, scalable harness layouts that simplify wiring diagrams and improve assembly speed on production lines. The 1/3 bayonet coupling provides quick, tool-free mating, boosting field service efficiency while maintaining reliable retention in vibration-heavy machinery. Feature → Business Impact → Application: The crimp contact system paired with 5 A UL and 4 A IEC ratings ensures predictable electrical performance, supporting safe operation in control panels and remote sensing arrays across industrial plants. Feature → Business Impact → Application: The UTS61832S withstands -40 to 105 °C and is salt spray tested, UV resistant, and RoHS compliant, delivering long-term reliability in outdoor automation, oil stations, or municipal equipment with minimal environmental compromise. Feature → Business Impact → Application: 250 mating cycles and resistance to mineral oil, gasoline, and basic/acid baths help reduce replacement cycles and maintenance spend, enabling cost-effective servicing of fleets and mobile machinery.
Get a Quick Quote for a Eaton UTS61832S
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS61832S?
Enquire Now
FAQs
When wiring the UTS61832S, note the 32‑position layout, straight plug face, and 1/3 bayonet coupling that enables fast, tool-free mating. Use crimp contacts and ensure the connector orientation aligns with the socket (female) mating interface. Back shells are not included by default and accessories must be ordered separately to complete the IP68/69k seal.
The UTS61832S supports IEC 61984 and UL 1977, and is compliant with CSA-C22.2 No.182.3. It also carries IP68 sealing, RoHS compliance, and a UV/stable construction, making it suitable for global installations in outdoor and harsh environments.
Heavy machinery, outdoor automation, construction equipment, and energy/water infrastructure benefit from the 32‑way layout, bayonet coupling for quick field mating, and robust sealing. Its compact form and reliable 5 A UL/4 A IEC rating support multi-sensor harnesses, control networks, and remote I/O in demanding environments.
Electrical limits include 5 A UL, 4 A IEC current ratings, and 250 V test voltage (UL/CSA) with 4 A CSA test current. Operating temperature spans -40 to 105 °C. The product is salt spray tested for 500 hours, UV resistant, and RoHS compliant, ensuring stable performance in outdoor, oily, or dusty settings.
With 250 mating cycles, rugged oil/gasoline resistance, and a quick-mating bayonet interface, maintenance cycles are extended and servicing times reduced. The 32‑way configuration simplifies wiring, lowers assembly time, and improves overall equipment uptime, delivering tangible ROI in fleets of mobile equipment and stationary automation assets.
