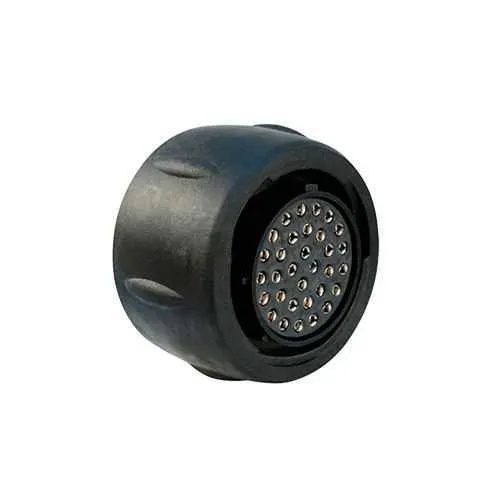

Eaton UTS61832SW IP68/69K Connector - 32 Contacts
Part Number: UTS61832SW
Quick Summary
Eaton UTS61832SW IP68/69K connector is a rugged 32‑position plug designed for harsh industrial environments. It addresses the daily challenge of maintaining reliable connections in wet, dusty, and vibration-prone settings commonly found on outdoor equipment and mobile machinery. This Souriau UTS series part delivers IEC 61984, UL 1977, and CSA-C22.2 No.182.3 certifications to support compliance and risk management. With a compact 37 mm length and a 41.3 mm footprint, it minimizes panel space while maximizing contact density. The combination of IP68/69K protection, UV resistance, and RoHS compliance offers a clear path to lower maintenance costs, shorter downtime, and safer, more dependable automation installations.
Product Information
Extended Description
UTS61832SW Eaton: Plastic plug, without backshell, for 32 female contacts, IP68/69K, keying W; UTS61832SW
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS61832SW
Product Length/Depth
37 mm
Product Height
41.3 mm
Product Width
41.3 mm
Product Weight
26.6 g
Compliances
CSA-C22.2 No.182.3 (please contact us for more details) IEC 61984 (please contact us for more details) UL 1977 (please contact us for more details)
Current rating
4 A IEC 5 A UL
Environmental conditions
REACH Fire and smoke rating I2F3 according to NFF 16101 and NFF 16102 Flammability rating UL94 V0 RoHS Fire & Smoke
Environmental resistance
Resistant against mineral oil Resistant against oil UV resistant, no degradation after 5 years of exposure in natural environment Resistant against basic bath Resistant against acid bath Resistant against gasoline Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz
Test current
4 A IEC 4 A CSA 5 A UL
Test voltage
250 V CSA 32 V IEC 250 V UL
Connector accessory option
Not delivered, to be ordered separately
Connector orientation
W
Connector type
Plug
Contact delivery
Not delivered
Contact gender
Socket (Female)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Layout
32
Plug type
Straight Plug
Shell material
Plastic
Shell size
18
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
32
Number of cavity #20
32
Salt spray
500 hour
The UTS61832SW uses IP68/69K sealing to prevent water, dust, and oil ingress, which translates into reduced failure rates in harsh environments and longer service life in outdoor and mobile equipment. This directly improves uptime and lowers maintenance costs in industrial automation and field deployments. The 32‑position, 4 A IEC (5 A UL) rated plug supports reliable power and signal distribution, enabling denser harness designs and simpler wiring schemes, while meeting stringent voltage requirements up to 250 V. Its 1/3 Bayonet coupling and W orientation deliver fast, tool-free assembly and secure mating in tight spaces, reducing labor time during installation and servicing. With a polyamide insert and plastic shell, it resists UV exposure, fuels, and minerals, ensuring ongoing performance in challenging environments. The connector is compatible with Souriau UTS accessories and crimp contact methods for flexible design integration. Durability, compact form, and wide operating temperature of -40 °C to 105 °C support automation in temperature-extreme locations and help ensure reliability across seasons.
Get a Quick Quote for a Eaton UTS61832SW
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS61832SW?
Enquire Now
FAQs
To install, align the straight plug with its mating socket in the correct W orientation, then rotate to lock using the 1/3 bayonet coupling. Ensure the 32 crimp contacts are properly seated and the seals engage fully for IP68 protection. Note that contacts and backshell are not delivered and must be ordered separately; follow the manufacturer’s crimping spec for reliable connections.
The unit provides a 4 A current rating per IEC and 5 A per UL, with a test voltage of 250 V CSA/UL and 32 V IEC. Operating temperature ranges from -40 °C to 105 °C. The 32‑position insert supports robust power and signal transmission, making it suitable for demanding automation applications while maintaining voltage and current safety margins.
Yes. The connector complies with IEC 61984, UL 1977, and CSA‑C22.2 No.182.3, and carries IP68 sealing for immersion protection. It also meets RoHS and UL94 V0 flammability standards, supporting safety and environmental requirements in industrial and outdoor installations.
IP68/69K sealing, UV resistance, and oil/chemical tolerance make it ideal for harsh locations. The 32‑position polyamide insert and plastic shell withstand mineral oils, UV exposure, and temperature extremes. With salt spray resistance and a rugged vibration spec, it maintains performance across outdoor, marine, or industrial sites where reliability is critical.
Backshells and certain connectors are not included with the UTS61832SW and must be ordered separately. The unit is designed for crimp contacts and Souriau UTS accessories, enabling tailored harness designs and mounting options. Verify compatibility with your system's enclosure, cable harness, and sealing requirements to ensure a complete, reliable installation.
