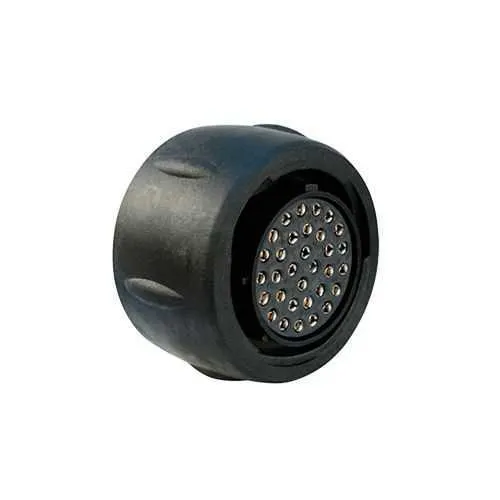

Eaton UTS61832SX Plug Connector 32-Contact IP68/69K
Part Number: UTS61832SX
Quick Summary
Eaton UTS61832SX is a plastic waterproof IP68/69K plug connector designed for 32 female contacts in harsh environments. Engineers often struggle with reliable connections under vibration, exposure to moisture, and temperature swings; this part provides a robust solution with proven sealing and mating performance. It carries IEC 61984, CSA-C22.2 No.182.3, and UL 1977 certifications, underscoring compatibility and safety across markets. By combining a compact 37 mm length with a 41.3 mm width and 41.3 mm height, this connector supports compact, rugged assemblies while ensuring regulatory compliance, reduced maintenance, and predictable lifecycle costs for industrial automation and outdoor equipment.
Product Information
Extended Description
UTS61832SX Eaton: Plastic plug, without backshell, for 32 female contacts, IP68/69K, keying X; UTS61832SX
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS61832SX
Product Length/Depth
37 mm
Product Height
41.3 mm
Product Width
41.3 mm
Product Weight
26.6 g
Compliances
IEC 61984 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details) UL 1977 (please contact us for more details)
Current rating
5 A UL 4 A IEC
Environmental conditions
Fire & Smoke Fire and smoke rating I2F3 according to NFF 16101 and NFF 16102 Flammability rating UL94 V0 RoHS REACH
Environmental resistance
Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz UV resistant, no degradation after 5 years of exposure in natural environment Resistant against acid bath Resistant against gasoline Resistant against oil Resistant against mineral oil Resistant against basic bath
Test current
4 A CSA 4 A IEC 5 A UL
Test voltage
250 V CSA 250 V UL 32 V IEC
Connector accessory option
Not delivered, to be ordered separately
Connector orientation
X
Connector type
Plug
Contact delivery
Not delivered
Contact gender
Socket (Female)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Layout
32
Plug type
Straight Plug
Shell material
Plastic
Shell size
18
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
32
Number of cavity #20
32
Salt spray
500 hour
Feature → Business Impact → Application: IP68/69K ingress protection delivers superior reliability in dusty, wet, and wash-down environments, reducing unplanned downtime and maintenance costs; ideal for mobile machinery and outdoor installations. 32-position layout enables complex sensor/actuator networks with minimal footprint, accelerating wiring diagrams and saving panel space. 1/3 Bayonet coupling provides quick, vibration-resistant mating, cutting installation time by minutes per connection and improving field service efficiency. Operating temperature range from -40 °C to 105 °C supports diverse climates and equipment, mitigating performance risk in cold starts or high-heat zones. With 250 mating cycles, the connector supports frequent maintenance cycles without compromising seal integrity, lowering total cost of ownership. Crimp contact delivery supports fast, reliable assembly in high-volume production environments, while polyamide shell and plastic housing offer low weight and corrosion resistance. The straight plug design simplifies routing in tight enclosures and enhances compatibility with standard Souriau UTS mating interfaces. The combination of IP rating, mechanical robustness, and RoHS/REACH compliance aligns with industry standards and customer expectations, delivering measurable gains in uptime and quality.
Get a Quick Quote for a Eaton UTS61832SX
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS61832SX?
Enquire Now
FAQs
The UTS61832SX is a 32-position plug with a 1/3 bayonet coupling designed to mate with Souriau UTS receptacles. It accepts crimp contacts and does not include a backshell by default; accessories must be ordered separately. This approach keeps the connection compact while enabling quick field assembly and reliable sealing in IP68/69K environments.
Key specs include a current rating of 5 A UL and 4 A IEC, operating temperature range from -40 °C to 105 °C, and a test current of up to 5 A UL/4 A CSA/IEC. It is rated for 250 V in CSA/UL configurations and 32 V IEC, ensuring safe operation across typical industrial control systems.
Yes. The connector features IP68 protection with a straight plug design and polyamide shell, making it well-suited for outdoor equipment, marine domains, and wash-down-ready machinery. Its UV resistance, chemical resistance, and RoHS/REACH compliance further support long-term outdoor reliability and low maintenance in demanding settings.
The UTS61832SX complies with IEC 61984, CSA-C22.2 No.182.3, and UL 1977, providing a clear path for regulatory approvals in North America and international markets. These certifications help streamline procurement, reduce validation time, and support safety and reliability claims in certifications and system approvals.
With 250 mating cycles and robust sealing, the UTS61832SX offers predictable lifecycle performance in repetitive assembly and maintenance scenarios. The IP68/69K rating minimizes ingress-related failures, reducing downtime and service costs. Lightweight polyamide housing also lowers weight in large-scale installations, contributing to overall system efficiency and ROI.
