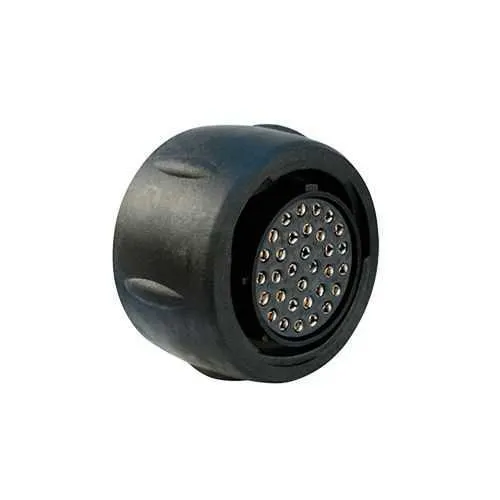

Eaton UTS61832SY Waterproof Plug - IP68/69K, 32‑Way
Part Number: UTS61832SY
Quick Summary
Eaton Souriau UTS61832SY is a rugged plastic waterproof connector for demanding industrial applications. Moisture, dust, and vibration can derail projects, so reliable seals and durable contacts matter. It carries IP68/IP69K sealing and complies with IEC 61984, UL 1977, and CSA-C22.2 No.182.3 for safety and interoperability. The 32‑position straight plug uses crimp contacts, a 1/3 bayonet coupling, and compatibility with Souriau UTS accessories to simplify installation. With RoHS/REACH compliance and a wide operating range from -40 °C to 105 °C, it supports long life, lower maintenance, and predictable total cost of ownership for industrial equipment.
Product Information
Extended Description
UTS61832SY Eaton: Plastic plug, without backshell, for 32 female contacts, IP68/69K, keying Y; UTS61832SY
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS61832SY
Product Length/Depth
37 mm
Product Height
41.3 mm
Product Width
41.3 mm
Product Weight
26.6 g
Compliances
CSA-C22.2 No.182.3 (please contact us for more details) IEC 61984 (please contact us for more details) UL 1977 (please contact us for more details)
Current rating
4 A IEC 5 A UL
Environmental conditions
RoHS REACH Fire and smoke rating I2F3 according to NFF 16101 and NFF 16102 Flammability rating UL94 V0 Fire & Smoke
Environmental resistance
Resistant against gasoline Resistant against oil Resistant against basic bath Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against acid bath Resistant against mineral oil UV resistant, no degradation after 5 years of exposure in natural environment
Test current
4 A IEC 5 A UL 4 A CSA
Test voltage
250 V UL 250 V CSA 32 V IEC
Connector accessory option
Not delivered, to be ordered separately
Connector orientation
Y
Connector type
Plug
Contact delivery
Not delivered
Contact gender
Socket (Female)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Layout
32
Plug type
Straight Plug
Shell material
Plastic
Shell size
18
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
32
Number of cavity #20
32
Salt spray
500 hour
Feature: IP68/IP69K sealing and 32‑position plastic housing → Business Impact: Enables reliable operation in harsh wash-down and dusty environments, reducing downtime and warranty costs → Application: Outdoor equipment, mobile machinery, and rugged automation panels. Feature: 4 A IEC / 5 A UL current rating with 250 mA test capability and 32 contacts → Business Impact: Supports robust power or signal transmission without frequent replacements, cutting energy loss and maintenance cycles → Application: Heavy-industrial control circuits and multi-sensor assemblies. Feature: 1/3 bayonet coupling with straight plug and 32‑way crimp contacts → Business Impact: Faster field assembly and secure mating, lowering installation time and error rates → Application: Field warehouses, construction sites, and on-site panel builds. Feature: -40 °C to 105 °C operating range and UV-resistant, flame-retardant polyamide insert → Business Impact: Ensures reliability in extreme temperatures and outdoor exposure, reducing service visits → Application: Outdoor robotics, agricultural machinery, and mining equipment. Feature: Salt spray tolerance (500 hours) and high vibration endurance (10–2000 Hz) → Business Impact: Prolongs lifecycle in corrosive or high-vibration environments, improving uptime and return on investment → Application: Marine-adjacent facilities, wind turbines, and heavy vehicles. Customer-focused note: Connector accessory options are not included and must be ordered separately, ensuring you tailor the system to your exact harness needs and installation constraints.
Get a Quick Quote for a Eaton UTS61832SY
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS61832SY?
Enquire Now
FAQs
UTS61832SY uses a 1/3 bayonet coupling and crimp contacts, designed to mate with Souriau UTS series harnesses. The device ships without a backshell, so plan for the appropriate backshell accessory and cable assembly to ensure strain relief and environmental protection in your installation. Verify connector orientation (Y) and the 32‑cavity layout to guarantee correct harness compatibility.
The connector is rated for 4 A IEC and 5 A UL (test current 4 A IEC / 5 A UL; 250 V UL/CSA, 32 V IEC) across its 32 contacts. This makes it suitable for mixed power and signal applications in rugged equipment, while maintaining safe operating voltages within specified standards.
Yes. The assembly carries IP68/IP69K sealing, is UV resistant, and operates from -40 °C to 105 °C, with salt spray resistance and vibration tolerance. These features enable reliable performance in outdoor environments, agricultural machinery, and mobile automation systems where exposure to moisture and dust is common.
UTS61832SY complies with IEC 61984 and UL 1977, and CSA-C22.2 No.182.3, with IP68 protection. RoHS and REACH environmental compliance are supported, ensuring global interoperability and regulatory alignment for industrial deployments.
The connector supports up to 250 mating cycles, which informs replacement planning in high‑cycle applications. Consider stocking spare crimp contacts and backshells, and schedule periodic inspections for seals in wash-down or outdoor environments to maintain IP68 integrity and performance over the system’s life.
