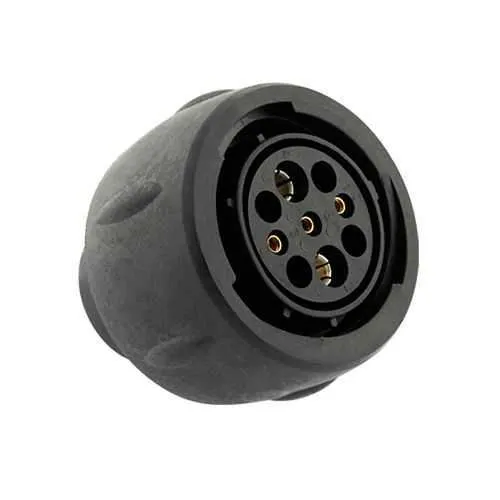

Eaton UTS618X2M3S Plastic Connector - IP68/69K
Part Number: UTS618X2M3S
Quick Summary
Eaton UTS618X2M3S is a plastic waterproof IP68/69K connector designed for rugged outdoor and harsh industrial environments. Engineers and procurement teams often struggle with ensuring reliable sealing while performing quick field replacements in wet or dusty conditions. This model complies with IEC 61984, UL 1977, and CSA-C22.2 No.182.3, reinforcing safety, interoperability, and supply-chain traceability. Designed for automation panels and demanding equipment, it integrates with the Souriau UTS series ecosystem. By combining robust sealing with durable materials and flexible mating options, it delivers uptime, reduced maintenance, and lower lifecycle costs for your electrical harnessing needs.
Product Information
Extended Description
UTS618X2M3S Eaton: Plastic plug, without backshell, for 5 female contacts, IP68/69K; UTS618X2M3S
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS618X2M3S
Product Length/Depth
37 mm
Product Height
41.3 mm
Product Width
41.3 mm
Product Weight
26.6 g
Compliances
CSA-C22.2 No.182.3 (please contact us for more details) IEC 61984 (please contact us for more details) UL 1977 (please contact us for more details)
Current rating
44 A UL 32 A IEC
Fitted with:
Last mate first break capability(optional) First mate last break capability(optional)
Environmental conditions
Fire and smoke rating I2F3 according to NFF 16101 and NFF 16102 Flammability rating UL94 V0 RoHS Fire & Smoke REACH
Environmental resistance
Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against acid bath Resistant against gasoline Resistant against basic bath UV resistant, no degradation after 5 years of exposure in natural environment Resistant against mineral oil Resistant against oil
Test current
34 A CSA 44 A UL 32 A IEC
Test voltage
600 V UL 600 V CSA 300 V IEC
Connector accessory option
Not delivered, to be ordered separately
Connector orientation
N
Connector type
Plug
Contact delivery
Not delivered
Contact gender
Socket (Female)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Layout
X2M3
Plug type
Straight Plug
Shell material
Plastic
Shell size
18
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
5
Number of cavity #16
3
Number of cavity #8 power
2
Salt spray
500 hour
Feature: IP68 / IP69K sealing and rugged plastic shell; Business impact: protects connections from water, dust, and immersion, reducing field failures and warranty costs; Application: outdoor conveyors, construction equipment, and marine auxiliary systems. Feature: Five-contact layout with three #16 cavities and two #8 power cavities; Business impact: enables compact, high-current power and control wiring in a single plug, shortening harnesses and simplifying assembly; Application: automation panels and mobile machinery. Feature: 1/3 Bayonet coupling; Business impact: fast, glove-friendly mating and unmating with minimal tools, lowering installation time and maintenance downtime; Application: production lines and remote equipment. Feature: Operating temperature range -40 °C to 105 °C; Business impact: reliable operation across temperature swings, reducing thermal failures and service calls; Application: outdoor plants and vehicles. Feature: Compliance with RoHS, UL94 V0, and fire & smoke ratings; Business impact: supports regulatory adherence and safer enclosures, easing audits; Application: regulated manufacturing environments and aerospace-adjacent equipment. Feature: Mating cycles of 250; Business impact: demonstrates longevity and durable lifecycle under repeated connect/disconnect cycles; Application: robotics, automation cells, and field-installed harnesses.
Get a Quick Quote for a Eaton UTS618X2M3S
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS618X2M3S?
Enquire Now
FAQs
Yes. The UTS618X2M3S is part of the Souriau UTS family and uses a 1/3 Bayonet coupling for fast, tool-free mating. It supports Last Mate First Break and First Mate Last Break variants as optional features, allowing maintenance flexibility. It is oriented as a plug with a female socket configuration and is designed to integrate with matching Souriau UTS interfaces for streamlined spares and service.
The connector provides five contacts (3 x #16 and 2 x #8 power), with a current rating of up to 44 A UL and 32 A IEC, and a voltage rating up to 600 V UL/CSA (300 V IEC). It withstands 250 mating cycles, making it suitable for repeated connect/disconnect cycles in automation and mobile equipment.
Ideal for automation panels, outdoor machinery, robotics, and mobile equipment, the UTS618X2M3S supports harsh environments due to IP68 sealing, UV resistance, and rugged insert materials. Its mixed 5-contact configuration is advantageous for integrated power and control wiring in compact harneses, reducing harness complexity in industrial plants and field installations.
Key standards include IEC 61984 for connectors, UL 1977 for interconnection in electrical equipment, and CSA-C22.2 No.182.3 for reliability. Fire and smoke performance is addressed by UL94 V0 and NFF 16101/16102 I2F3. RoHS compliance is supported, ensuring regulatory alignment for European and North American manufacturing environments.
The 1/3 Bayonet coupling enables rapid field mating, reducing downtime during maintenance. The 250 mating cycles and IP68/69K sealing cut failure rates and field-rework, improving uptime in outdoor and harsh environments. Overall, the combination of robust sealing, long lifecycle, and easy serviceability translates to lower maintenance costs and faster project ROI in automation deployments.
