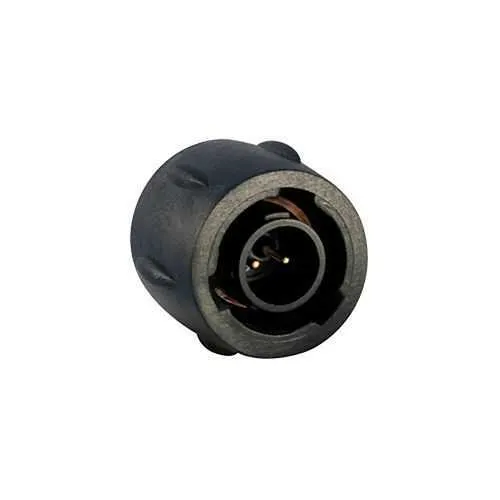

Eaton UTS68E2P Plastic Waterproof IP68/69k Connector - IP68/69k
Part Number: UTS68E2P
Quick Summary
The Eaton UTS68E2P connector is a plastic waterproof IP68/69k plug for rugged, field wiring in harsh industrial environments. It addresses moisture ingress, vibration, and unreliable field connections that slow maintenance and drive downtime. RoHS exemption 6.c, CSA-C22.2 No.182.3, IEC 61984, and UL 1977 certifications underlie global safety and reliability. Designed for 7 A circuits with 2 solder contacts, it reduces harness complexity while delivering durable, compliant performance. With a compact footprint and compatibility across the Souriau UTS family, it streamlines installation and supports cost-effective maintenance.
Product Information
Extended Description
UTS68E2P Eaton: Plastic plug, without backshell, with 2 male solder contacts, IP68/69K in unmated conditions; UTS68E2P
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS68E2P
Product Length/Depth
21.3 mm
Product Height
22.4 mm
Product Width
22.4 mm
Product Weight
6.4 g
Compliances
ROHS exemption 6.c CSA-C22.2 No.182.3 (please contact us for more details) IEC 61984 (please contact us for more details) UL 1977 (please contact us for more details)
Current rating
7 A IEC 7 A UL
Environmental conditions
RoHS Flammability rating UL94 HB REACH
Environmental resistance
Resistant against gasoline Resistant against mineral oil Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against oil UV resistant, no degradation after 5 years of exposure in natural environment Resistant against acid bath Resistant against basic bath
Test current
7 A UL 7 A CSA 7 A IEC
Test voltage
32 V IEC 250 V UL 250 V CSA
Connector accessory option
Not delivered, to be ordered separately
Connector orientation
N
Connector type
Plug
Contact delivery
Loaded
Contact gender
Pin (Male)
Contact plating
Gold
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Neoprene
Layout
2
Plug type
Straight Plug
Shell material
Plastic
Shell size
8
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
2
Number of cavity #20
2
Salt spray
500 hour
Waterproof IP68/69k protection provides reliable field connections in washdown and outdoor environments, reducing moisture-related failures and maintenance costs, while enabling safe operation in harsh settings. The 1/3 bayonet coupling delivers fast, secure mating with vibration resistance, cutting downtime during assembly and service. The 2-pin solder cup contacts with gold plating ensure low contact resistance and corrosion resistance for long-term signal integrity, which translates to fewer rework tasks and higher equipment uptime. A compact, plastic shell (Shell size 8) and Neoprene insert support easy harness routing and moisture sealing without requiring heavy backshell hardware, simplifying installation in tight spaces. The 7 A current rating and 32 V/250 V test voltages provide clear electrical limits for dependable machine wiring across automation panels. Certified to RoHS exemption 6.c, CSA, IEC 61984, and UL 1977, this connector meets global safety and regulatory expectations for industrial equipment. In practice, users gain improved reliability, predictable maintenance cycles, and smoother integration into Souriau UTS-based harnesses for diverse applications such as mobile machinery and outdoor automation.
Get a Quick Quote for a Eaton UTS68E2P
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS68E2P?
Enquire Now
FAQs
The UTS68E2P is supplied as a plug without a backshell; backshells must be ordered separately. It ships with two male solder contacts loaded in the connector, and is designed for direct use with Souriau UTS accessories to achieve robust sealing and harness protection in demanding environments.
The gold-plated solder cup contacts provide excellent corrosion resistance and stable contact performance, while the 1/3 bayonet coupling offers positive locking that resists loosening during vibration. With a mating cycle rating of 250, it supports repeated connect/disconnect cycles without compromising reliability.
Yes. The connector achieves IP68 in unmated conditions, is UV resistant, and demonstrates resistance to mineral oil and gasoline. Its operating temperature range from -40 °C to 105 °C and Neoprene insert deliver effective moisture sealing and chemical resistance for outdoor, agricultural, and industrial equipment.
The unit complies with RoHS exemption 6.c, CSA-C22.2 No.182.3, IEC 61984, and UL 1977, ensuring safety and regulatory alignment for North American and international markets, which helps streamline procurement and risk management in regulated industries.
By delivering a compact, IP68-rated waterproof connection with fast mating and 7 A rating, the UTS68E2P reduces installation time, minimizes field failures, and lowers maintenance costs. Its durability and high mating-cycle life translate to higher uptime and more predictable lifecycle costs in automation and mobile machinery.
