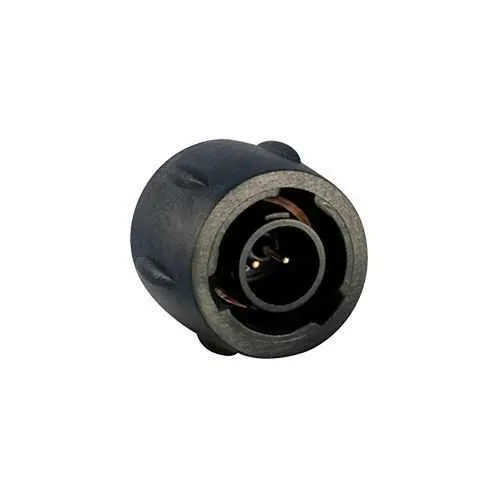

Eaton UTS68E2PX Plastic Waterproof IP68/69k Connector - IP68/69K
Part Number: UTS68E2PX
Quick Summary
The Eaton UTS68E2PX plastic waterproof IP68/69k connector is designed for rugged field connections in demanding industrial environments. Engineers often struggle with water ingress, dirt, and downtime when wiring sensors and actuators in outdoor or harsh factory settings. This unit carries IEC 61984 and UL 1977 approvals and IP68/69K sealing, with additional CSA-C22.2 No.182.3 and RoHS 6.c compliance to support safety and regulatory requirements. For panel builders and integrators, the Souriau UTS series delivers quick, reliable connections, 1/3 bayonet coupling, and gold-plated solder contacts, reducing maintenance and field errors while enabling robust installation in constrained spaces.
Product Information
Extended Description
UTS68E2PX Eaton: Plastic plug, without backshell, with 2 male solder contacts, IP68/69K in unmated conditions, keying X; UTS68E2PX
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS68E2PX
Product Length/Depth
21.3 mm
Product Height
22.4 mm
Product Width
22.4 mm
Product Weight
6.4 g
Compliances
CSA-C22.2 No.182.3 (please contact us for more details) IEC 61984 (please contact us for more details) UL 1977 (please contact us for more details) ROHS exemption 6.c
Current rating
7 A UL 7 A IEC
Environmental conditions
RoHS REACH Flammability rating UL94 HB
Environmental resistance
Resistant against gasoline Resistant against basic bath Resistant against acid bath Resistant against oil Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against mineral oil UV resistant, no degradation after 5 years of exposure in natural environment
Test current
7 A IEC 7 A UL 7 A CSA
Test voltage
32 V IEC 250 V UL 250 V CSA
Connector accessory option
Not delivered, to be ordered separately
Connector orientation
X
Connector type
Plug
Contact delivery
Loaded
Contact gender
Pin (Male)
Contact plating
Gold
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Neoprene
Layout
2
Plug type
Straight Plug
Shell material
Plastic
Shell size
8
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
2
Number of cavity #20
2
Salt spray
500 hour
IP68/69K sealing in unmated conditions provides a reliable barrier against water ingress and dust, reducing field rework and extending component life. This rugged protection translates into lower maintenance costs and higher uptime for critical lines and equipment exposed to wash-downs, rain, or vibration. The UTS68E2PX is well suited for outdoor machinery, conveyors, and sensor networks where ingress protection is essential. Gold-plated solder cup contacts deliver superior signal integrity and corrosion resistance in challenging environments. The result is fewer contact faults and more consistent performance in automation panels and field wiring. With 2 contacts loaded and a straight plug design, it supports compact, reliable connections in tight harnesses. 1/3 Bayonet coupling enables fast, tool-free mating and unmating, improving installation speed and reliability in constrained spaces. This reduces commissioning time and minimizes the risk of cross-threading or misalignment during field assembly. It's particularly advantageous for panel wiring and equipment that requires rapid field servicing. Operating temperature range -40 °C to 105 °C accommodates a broad range of climates and processes, lowering the risk of thermal-induced failures. This wide range supports outdoor, wash-down, and high-temperature applications while maintaining electrical performance. The combination of plastic shell and neoprene insert provides chemical and UV resistance for long service life. The device offers up to 250 mating cycles and a 2-contact configuration with gold-plated contacts, delivering long life under frequent connect/disconnect cycles. This translates into lower replacement costs and predictable maintenance planning for robotics, automation, and process instrumentation. Lightweight construction (6.4 g) and a practical 21.3 mm x 22.4 mm footprint simplify installation in space-constrained panels. The connectors are designed for compatibility with X-keying orientation and can be ordered with optional backshell accessories to meet specific harness and protection requirements.
Get a Quick Quote for a Eaton UTS68E2PX
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS68E2PX?
Enquire Now
FAQs
The UTS68E2PX is a straight plug with X-keying. Align the connector orientation correctly and mate with the corresponding counterpart. Note that a backshell is not included and must be ordered separately; ensure the mating interface uses the 1/3 bayonet coupling for a secure, quick connection. Use the gold-plated solder cups for a robust electrical connection in wet or contaminated environments.
The connector provides a 7 A current rating and supports 32 V IEC and 250 V UL/CSA voltage. This combination suits control circuits, sensors, and actuators in industrial automation while maintaining safe margins for short-term surges and environmental exposure.
Yes. It features IP68 sealing (IP68/69K) in unmated conditions, UV and chemical resistance, and an operating temperature range of -40 °C to 105 °C, making it suitable for outdoor equipment, wash-down areas, and high-temperature processes.
It complies with IEC 61984 and UL 1977, and CSA-C22.2 No.182.3, with RoHS exemption 6.c. These certifications support regulatory alignment and environmental standards for industrial connectors.
With up to 250 mating cycles and gold-plated contacts, the connector delivers long service life and stable performance, reducing replacement costs and downtime. Its lightweight plastic shell and 1/3 bayonet coupling also speed up installation and field servicing in constrained or rugged environments.
