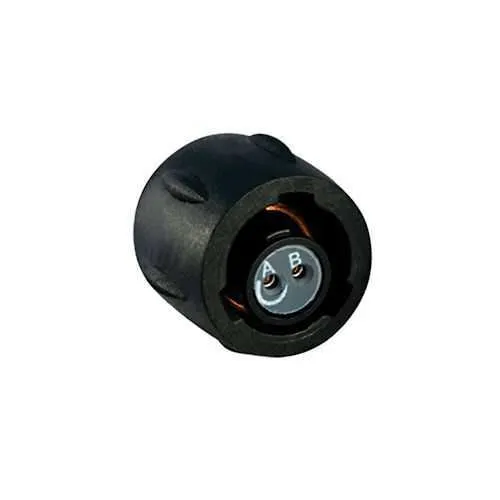

Eaton UTS68E2S Plastic Waterproof Connector - IP68/69K
Part Number: UTS68E2S
Quick Summary
Eaton UTS68E2S is a plastic waterproof IP68/69K connector designed for harsh outdoor and industrial environments. In field installations, moisture ingress, oils, and vibration can threaten connectivity and uptime. UL 1977 and IEC 61984 approvals support safety and reliability, with CSA-C22.2 No.182.3 and ROHS exemption 6.c validating regulatory compliance. Its compact 2-contact plug with gold-plated solder cups and a 1/3 bayonet coupling simplifies wiring, reduces maintenance, and improves long-term reliability in demanding automation, sensor, and machinery applications.
Product Information
Extended Description
UTS68E2S Eaton: Plastic plug, without backshell, with 2 female solder contacts, IP68/69K in unmated conditions; UTS68E2S
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS68E2S
Product Length/Depth
21.3 mm
Product Height
22.4 mm
Product Width
22.4 mm
Product Weight
6.9 g
Compliances
UL 1977 (please contact us for more details) IEC 61984 (please contact us for more details) ROHS exemption 6.c CSA-C22.2 No.182.3 (please contact us for more details)
Current rating
7 A IEC 7 A UL
Environmental conditions
Flammability rating UL94 HB REACH RoHS
Environmental resistance
Resistant against mineral oil UV resistant, no degradation after 5 years of exposure in natural environment Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against gasoline Resistant against oil Resistant against basic bath Resistant against acid bath
Test current
7 A IEC 7 A CSA 7 A UL
Test voltage
250 V CSA 250 V UL 32 V IEC
Connector accessory option
Not delivered, to be ordered separately
Connector orientation
N
Connector type
Plug
Contact delivery
Loaded
Contact gender
Socket (Female)
Contact plating
Gold
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Neoprene
Layout
2
Plug type
Straight Plug
Shell material
Plastic
Shell size
8
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
2
Number of cavity #20
2
Salt spray
500 hour
IP68/IP69K sealing and neoprene insert provide robust protection against water, dust, and oil exposure, enabling reliable operation in washdown environments and rugged installation sites, which lowers downtime and service costs. This translates to improved uptime for conveyors, outdoor equipment, and harsh-environment machinery where quick, secure mating is crucial. The 2-contact, solder cup (gold-plated) design ensures low contact resistance and corrosion resistance, delivering stable signal and power transmission for sensors and actuators in demanding automation networks. Operating from -40 °C to 105 °C supports extreme climates and high-temperature zones, reducing the need for alternative cooling or enclosure changes and increasing system resilience. A compact shell (shell size 8) at 6.9 g reduces overall equipment weight and frees enclosure space for other components, improving installation density. With 250 mating cycles, the plug remains reliable through routine maintenance, minimizing replacement costs. The 1/3 bayonet coupling offers quick, field-friendly mating while maintaining secure connections in vibration-prone environments, and the plastic shell enhances resistance to UV exposure and chemical baths. Overall, these features align with industry demands for rugged, compliant field wiring, enabling safer, more efficient automation deployments and outdoor equipment integration.
Get a Quick Quote for a Eaton UTS68E2S
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS68E2S?
Enquire Now
FAQs
The UTS68E2S uses a straight plug with a 1/3 bayonet coupling for fast, secure mating. Ensure the neoprene insert seats properly and that the plug aligns with the mating socket in the N orientation. The connector is designed for two gold-plated solder-contact cavities, enabling straightforward soldering of wires during field wiring while maintaining IP68 sealing once mated. This setup reduces installation time and improves reliability in harsh environments.
Plan for a 7 A current rating (IEC/UL), 250 V test voltage (UL/CSA) and an operating temperature range of -40 °C to 105 °C. The connector features IP68 sealing, resistance to mineral oil and UV, plus robust resistance to vibration per IEC 60512-4. With gold-plated solder cups and two contacts, you’ll achieve reliable power and signal transfer in challenging industrial settings, including outdoor automation and sensor wiring.
Yes. Its IP68/69K rating, UV and oil resistance, and Bayonet coupling make it ideal for outdoor automation, heavy machinery, and washdown environments. The compact 2-contact layout supports field wiring for sensors and actuators, while the 250 mating cycles ensure durability through regular maintenance without frequent part replacement. This connector is well-suited for space-constrained enclosures in automation projects.
The UTS68E2S carries UL 1977 and IEC 61984 approvals and CSA-C22.2 No.182.3. It also offers ROHS exemption 6.c. These certifications support safety, interoperability, and environmental compliance for industrial electronics, enabling easier integration into regulated automation systems and field deployments.
Use the optional backshell accessory (ordered separately) to maintain IP68 sealing and proper strain relief. The 250 mating cycles contribute to predictable maintenance intervals, reducing unexpected outages. The gold-plated contacts resist corrosion in oily or damp conditions, while the neoprene insert and plastic shell offer durable resistance to UV and chemical exposure, lowering replacement costs and extending equipment uptime in harsh environments.
