Eaton UTS68E33SW Connector Waterproof Industrial - IP68/69K
Part Number: UTS68E33SW
Quick Summary
Eaton Souriau UTS68E33SW plastic waterproof IP68/69K connector is a rugged solution for challenging automation environments. It delivers reliable sealing and electrical performance where ingress protection and vibration resistance matter most. This IP68/69K connector meets essential standards such as UL 1977, CSA-C22.2 No.182.3, and IEC 61984, ensuring compliance across global designs. With a compact 3-pin configuration and a focus on durability, it supports cost-effective, long-term installations while enabling faster maintenance and better uptime in harsh applications. For engineers evaluating high-reliability IP68 connectors, this option also aligns with RoHS considerations and robust installation workflows, delivering value alongside performance in mobile machinery and outdoor equipment.
Product Information
Extended Description

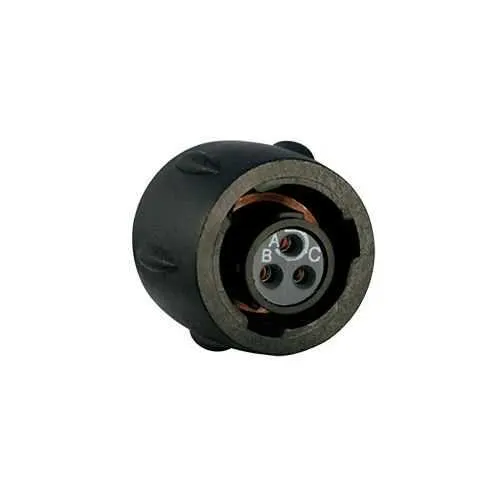

UTS68E33SW Eaton: Plastic plug, without backshell, with 3 female solder contacts, IP68/69K in unmated conditions, keying W; UTS68E33SW
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS68E33SW
Product Length/Depth
21.3 mm
Product Height
22.4 mm
Product Width
22.4 mm
Product Weight
7.2 g
Compliances
UL 1977 (please contact us for more details) ROHS exemption 6.c CSA-C22.2 No.182.3 (please contact us for more details) IEC 61984 (please contact us for more details)
Current rating
7 A UL 7 A IEC
Environmental conditions
RoHS REACH Flammability rating UL94 HB
Environmental resistance
Resistant against mineral oil Resistant against basic bath Resistant against oil UV resistant, no degradation after 5 years of exposure in natural environment Resistant against acid bath Resistant against gasoline Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz
Test current
7 A CSA 7 A UL 7 A IEC
Test voltage
250 V CSA 250 V UL 50 V IEC
Connector accessory option
Not delivered, to be ordered separately
Connector orientation
W
Connector type
Plug
Contact delivery
Loaded
Contact gender
Socket (Female)
Contact plating
Gold
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Neoprene
Layout
33
Plug type
Straight Plug
Shell material
Plastic
Shell size
8
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
3
Number of cavity #20
3
Salt spray
500 hour
The UTS68E33SW uses three gold-plated solder cup contacts with a 7 A current rating, delivering low contact resistance and dependable signal integrity in demanding environments. This translates to reduced downtime and fewer rework incidents during maintenance, making it ideal for automation panels and sensor networks. Its 1/3 bayonet coupling provides quick mating and reliable locking, speeding up field assemblies and service procedures without sacrificing safety. With a straight plug orientation and W keying, alignment during installation is straightforward, minimizing connector wear and extending service life in conveyors and mobile equipment. The neoprene insert and plastic shell deliver chemical and UV resistance, supporting long-term performance in oil, acid bath, and outdoor exposure. Mating cycles of up to 250 enable scalable production line deployments while preserving electrical integrity across shifts. The gold-plated contacts further guarantee corrosion resistance in harsh environments, supporting predictable performance where reliability is non-negotiable. Compatibility with standard Souriau UTS components is enhanced by clearly defined specifications and a compact footprint (shell size 8), reducing design changes and inventory complexity. Overall, the combination of IP68 sealing, rigorous mechanical design, and RoHS-compliant materials translates into measurable efficiency gains and lower total cost of ownership across industrial applications.
Get a Quick Quote for a Eaton UTS68E33SW
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS68E33SW?
Enquire Now
FAQs
The UTS68E33SW provides a three-contact, gold-plated solder cup arrangement in a W-keyed, straight-plug format with a 1/3 bayonet coupling. This design aligns with common Souriau UTS mating receptacles while delivering reliable UL/IEC compatibility for 3-pin configurations. The result is straightforward field integration with minimized rework and consistent electrical performance.
The 1/3 bayonet coupling on the UTS68E33SW is engineered for quick, guided mating with positive locking. Align the keying W orientation, bring the plug to the receptacle, and rotate to engage. This reduces mating torque and wear while maintaining sealing integrity. Ensure mating cycles and environmental exposure match the connector’s 250-cycle rating for best long-term results.
The UTS68E33SW complies with UL 1977, CSA-C22.2 No.182.3, and IEC 61984 (along with RoHS considerations). These certifications support compliance across North American and international machinery standards, simplifying approval for equipment used in diverse industries. When designing you can reference these marks to satisfy safety, performance, and environmental requirements in your bill of materials.
This connector is rated IP68 in unmated conditions and operates from -40 °C to 105 °C, with UV resistance and chemical resilience. It tolerates mineral oils, basic baths, acids, and gasoline exposure, making it suitable for outdoor control panels, mobile equipment, and rugged conveyors. Its Neoprene insert and plastic shell further support durability under vibration and harsh industrial conditions.
With a 7 A current rating, 3 contacts, and 250 mating cycles, the UTS68E33SW offers predictable longevity and reduced maintenance frequency. Gold-plated contacts ensure stable conductivity and corrosion resistance, lowering failure risk in challenging environments. Its quick-mating bayonet design reduces downtime during changeovers, contributing to higher line throughput and lower total cost of ownership over the equipment lifecycle.
