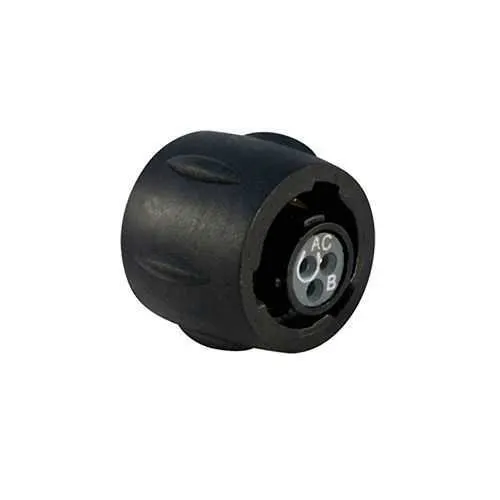

Eaton UTS68E3SX Plastic Waterproof Plug - IP68/69K
Part Number: UTS68E3SX
Quick Summary
The Eaton UTS68E3SX Plastic Waterproof Plug provides rugged, IP68/69K-rated connectivity for harsh-environment applications. In washdown or dusty industrial settings, moisture intrusion and vibration can threaten uptime and safety; this connector is designed to resist those challenges with a sealed, reliable interface. Compliant with IEC 61984, UL 1977, and CSA standards (RoHS exemptions noted), it supports safe installation across control panels and equipment. The 3-contact layout with gold-plated solder cups enables straightforward field servicing, while the 1/3 bayonet coupling simplifies mating and maintenance. Suitable for automation cells, outdoor conveyors, and other demanding systems, it combines compact form with proven performance to reduce downtime and sourcing complexity.
Product Information
Extended Description
UTS68E3SX Eaton: Plastic plug, without backshell, with 3 female solder contacts, IP68/69K in unmated conditions, keying X; UTS68E3SX
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS68E3SX
Product Length/Depth
21.3 mm
Product Height
22.4 mm
Product Width
22.4 mm
Product Weight
7.1 g
Compliances
IEC 61984 (please contact us for more details) ROHS exemption 6.c CSA-C22.2 No.182.3 (please contact us for more details) UL 1977 (please contact us for more details)
Current rating
7 A UL 7 A IEC
Environmental conditions
REACH RoHS Flammability rating UL94 HB
Environmental resistance
Resistant against basic bath Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against acid bath Resistant against oil Resistant against gasoline UV resistant, no degradation after 5 years of exposure in natural environment Resistant against mineral oil
Test current
7 A UL 7 A CSA 7 A IEC
Test voltage
32 V IEC 250 V CSA 250 V UL
Connector accessory option
Not delivered, to be ordered separately
Connector orientation
X
Connector type
Plug
Contact delivery
Loaded
Contact gender
Socket (Female)
Contact plating
Gold
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Neoprene
Layout
3
Plug type
Straight Plug
Shell material
Plastic
Shell size
8
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
3
Number of cavity #20
3
Salt spray
500 hour
Sealed IP68/69K housing and neoprene insert protect against water, dust, and aggressive environments, delivering lower maintenance costs and fewer ingress-related failures for critical control signals in washdown areas. The 3-position, 3-contact design with gold-plated solder cups enhances signal integrity and corrosion resistance, translating to longer life in vibration-prone machinery and higher uptime in automation lines. The 1/3 bayonet coupling enables quick, tool-free mating and disassembly, reducing installation time and field labor while improving fit-and-finish in panel assemblies. Operating from -40 °C to 105 °C, the connector withstands temperature swings and outdoor exposure, supporting reliable operation in cold starts, heat, and sunlit environments. With 250 mating cycles and a compact plastic shell, it suits dense control enclosures and lightweight robotics, delivering durable performance without adding bulk to harnesses. The combination of 7 A current rating and 32 V IEC / 250 V UL/CSA test voltages ensures consistent performance across standard control and signaling applications, while corrosion-resistant gold contacts maintain low contact resistance over the life of the installation. The product’s neoprene insert, plastic shell, and 8-shell size deliver a robust yet lightweight solution for aerospace-grade, industrial-grade, and outdoor equipment where space is at a premium.
Get a Quick Quote for a Eaton UTS68E3SX
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS68E3SX?
Enquire Now
FAQs
The UTS68E3SX is a 3-contact plug designed for Souriau UTS series mating receptacles with a 1/3 bayonet coupling. It uses solder cup contacts and a 3-position layout, compatible with standard IP68/IP69K sealing practices. It fits compact control panels and machinery harnesses that require a sealed, bayonet-mated connection in environments subject to moisture, dust, and vibration.
This plug is rated for 7 A (UL and IEC) with test voltages of 32 V IEC and 250 V CSA/UL. It features gold-plated solder cup contacts to maintain low contact resistance and reliable signaling across cycling and environmental stress, making it suitable for control signals and lightweight power paths in automation.
Yes. The connector carries IP68 rating and is UV resistant, with a neoprene insert and resistant to oil and acid baths. It is designed for harsh environments, including outdoor machinery, washdown zones, and chemical exposure, with an operating temperature range from -40 °C to 105 °C.
The UTS68E3SX complies with IEC 61984, UL 1977, and CSA C22.2, with RoHS exemption 6.c. It is designed to meet safety and performance requirements for industrial automation and control devices, ensuring consistent installation practices across compliant panels and machines.
With 250 mating cycles and gold-plated contacts, the UTS68E3SX delivers durable, low-resistance connections over time, reducing maintenance intervals and replacement costs. Its robust sealing, small form factor, and quick-mate design minimize field labor and downtime, contributing to lower total cost of ownership in automation and machinery applications.
