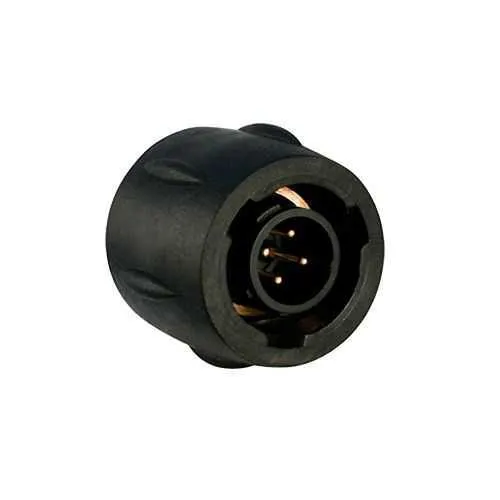

Eaton UTS68E4PW Plastic Waterproof IP68/69K Connector - IP68/69K
Part Number: UTS68E4PW
Quick Summary
The Eaton UTS68E4PW plastic waterproof IP68/69K connector is a rugged plug-and-socket solution for harsh industrial environments and mobile equipment. Field engineers often struggle with reliable sealing and vibration resistance, leading to downtime and failed connections in washdown or oil‑rich settings. This UTS plug delivers a compact 4‑position layout with gold-plated solder cups and a 1/3 bayonet coupling, ensuring fast, repeatable connections even in wet or dusty environments. It meets UL 1977, CSA-C22.2 No.182.3, and IEC 61984 standards, while RoHS exemption 6.c simplifies procurement. With an operating range from -40 to 105 °C and a 7 A rating, it supports durable automation and machinery applications with lower lifecycle costs and easier maintenance.
Product Information
Extended Description
UTS68E4PW Eaton: Plastic plug, without backshell, with 4 male solder contacts, IP68/69K in unmated conditions, keying W; UTS68E4PW
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS68E4PW
Product Length/Depth
21.3 mm
Product Height
22.4 mm
Product Width
22.4 mm
Product Weight
6.9 g
Compliances
UL 1977 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details) IEC 61984 (please contact us for more details) ROHS exemption 6.c
Current rating
7 A UL 7 A IEC
Environmental conditions
Flammability rating UL94 HB RoHS REACH
Environmental resistance
Resistant against mineral oil Resistant against basic bath Resistant against acid bath Resistant against oil Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against gasoline UV resistant, no degradation after 5 years of exposure in natural environment
Test current
7 A CSA 7 A IEC 7 A UL
Test voltage
250 V CSA 250 V UL 32 V IEC
Connector accessory option
Not delivered, to be ordered separately
Connector orientation
W
Connector type
Plug
Contact delivery
Loaded
Contact gender
Pin (Male)
Contact plating
Gold
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Neoprene
Layout
4
Plug type
Straight Plug
Shell material
Plastic
Shell size
8
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
4
Number of cavity #20
4
Salt spray
500 hour
The UTS68E4PW is designed for demanding environments where reliability matters. Feature → robust IP68 protection minimizes ingress from water and dust, delivering fewer field faults and reduced maintenance costs; Application → washdown areas, outdoor automation, and mobile machinery. Feature → 1/3 bayonet coupling provides quick, tool-free mating with secure retention; Business Impact → faster harnessing on the line and less downtime during maintenance. Feature → four gold-plated solder cup contacts with a 7 A current rating; Application → high-reliability signal and power connections with long-term corrosion resistance. Feature → UV resistant plastics and neoprene insert support long‑term exposure and chemical resilience; Business Impact → extended service life in outdoor and industrial outdoor environments. Feature → operating temperature range -40 to 105 °C and 250 V test voltage; Application → equipment operating in extreme climates and hazardous areas. Feature → 250 mating cycles and 4-position layout; Business Impact → predictable lifecycle planning and lower replacement costs with repeatable performance. Industry context → compatibility with Souriau UTS series ecosystems enables scalable warehousing, maintenance efficiency, and streamlined supplier management.
Get a Quick Quote for a Eaton UTS68E4PW
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS68E4PW?
Enquire Now
FAQs
Installers should align the straight plug in the W orientation, engage the 1/3 bayonet coupling until secure, and ensure the Neoprene insert seats properly. The 4‑cavity layout accepts gold-plated solder cups for a durable electrical connection, while maintaining IP68 protection in unmated conditions. Use appropriate mating accessories if required.
The connector is IP68 rated and designed for unmated IP69K exposure, with a plastic shell and Neoprene insert that resist mineral oil, basic baths, and acids. UV resistance ensures no degradation after 5 years of outdoor exposure, while gold-plated solder cups maintain reliable conductivity in challenging conditions.
Yes. The product adheres to UL 1977, IEC 61984, and CSA-C22.2 No.182.3 standards, with additional RoHS exemption 6.c. This alignment supports regulatory compliance in North America and international deployments, helping engineers meet certification requirements without redesign.
The UTS68E4PW supports a 7 A current rating and up to 250 V test voltage (CSA/UL). It uses four contacts with gold plating for reliable signal and power transfer, and the mating current capability aligns with industrial load profiles while maintaining safety margins across -40 °C to 105 °C.
With 250 mating cycles and robust environmental resistance, the UTS68E4PW reduces connector replacements and maintenance downtime. The field-ready 1/3 bayonet coupling speeds service, while UV resistance and oil/acid bath durability minimize replacement frequency, delivering a favorable total cost of ownership in automation and mobile equipment contexts.
