Eaton UTS68E4SW Plug for Harsh Environments - IP68/69K
Part Number: UTS68E4SW
Quick Summary
Eaton UTS68E4SW is a plastic waterproof IP68/69K connector plug for harsh-environment automation. Engineers often struggle with water ingress, vibration, and downtime that disrupt production. This Souriau UTS series solution complies with IEC 61984, UL 1977, and CSA C22.2 standards, with RoHS exemption 6.c, delivering reliable performance in challenging conditions. Designed to integrate with existing Souriau UTS components, it offers durable gold-plated contacts and a compact 4‑cavity layout that reduces maintenance costs while improving system uptime and overall equipment efficiency.
Product Information
Extended Description

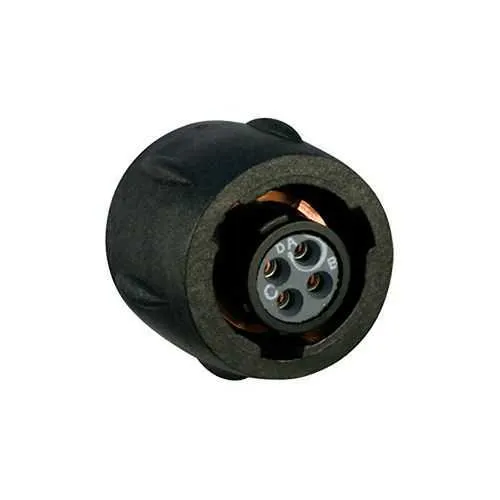

UTS68E4SW Eaton: Plastic plug, without backshell, with 4 female solder contacts, IP68/69K in unmated conditions, keying W; UTS68E4SW
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS68E4SW
Product Length/Depth
21.3 mm
Product Height
22.4 mm
Product Width
22.4 mm
Product Weight
7.4 g
Compliances
IEC 61984 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details) UL 1977 (please contact us for more details) ROHS exemption 6.c
Current rating
7 A IEC 7 A UL
Environmental conditions
REACH RoHS Flammability rating UL94 HB
Environmental resistance
UV resistant, no degradation after 5 years of exposure in natural environment Resistant against basic bath Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against mineral oil Resistant against gasoline Resistant against acid bath Resistant against oil
Test current
7 A IEC 7 A CSA 7 A UL
Test voltage
32 V IEC 250 V CSA 250 V UL
Connector accessory option
Not delivered, to be ordered separately
Connector orientation
W
Connector type
Plug
Contact delivery
Loaded
Contact gender
Socket (Female)
Contact plating
Gold
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Neoprene
Layout
4
Plug type
Straight Plug
Shell material
Plastic
Shell size
8
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
4
Number of cavity #20
4
Salt spray
500 hour
Feature: Four gold-plated solder cup contacts deliver low contact resistance and corrosion resistance, improving signal integrity and long-term reliability. Business Impact: Fewer field failures, reduced maintenance, and lower replacement costs for critical sensors and controllers. Application: Ideal for 4‑wire control and sensing circuits in outdoor equipment and harsh environments. Feature: IP68/69K protection with neoprene insert and UV resistance ensures sealing under extended exposure to dust, water, and sunlight. Business Impact: Lower ingress risk, extended service life, and predictable performance in outdoor installations. Application: Outdoor automation, marine, and rugged industrial settings. Feature: 1/3 bayonet coupling with W-keying enables fast, secure mating and reliable alignment. Business Impact: Shorter assembly time, fewer mis-mates, and improved installation efficiency. Application: Assembly lines and field servicing in tight spaces. Feature: Operating temperature range from -40 °C to 105 °C and vibration tolerance per IEC 60512-4 (10–2000 Hz). Business Impact: Consistent performance across diverse climates, reducing downtime. Application: Heavy machinery, process automation, and mobile equipment. Feature: Straight plug design, 4-position layout, and compact shell size 8 support easy cabling and compatibility. Business Impact: Simplified routing, reduced accessory requirements, and faster deployment. Application: Sensor networks and control modules with tight space constraints. Feature: Mating cycles up to 250 and gold-plated solder cup contacts provide durable, repeatable connections. Business Impact: Longer service life in high-vibration environments, lowering maintenance frequency. Application: Industrial automation and instrumentation in demanding environments. Feature: Backshell not included; accessory backshells or mounting hardware can be ordered separately. Business Impact: Flexible integration with existing cable assemblies and cost-controlled customization. Application: OEM designs and field retrofits where enclosure or cable diameter varies.
Get a Quick Quote for a Eaton UTS68E4SW
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS68E4SW?
Enquire Now
FAQs
To mate the UTS68E4SW, pair the straight plug with a corresponding UTS68 socket using the 1/3 bayonet coupling and align the W-keying. Rotate until engaged while ensuring the contacts are fully seated to maintain IP68 sealing. Note that the plug is delivered without a backshell; order the appropriate backshell separately for your cable diameter and enclosure.
The UTS68E4SW is rated for 7 A current (IEC and UL), with a test current of 7 A and test voltages of 32 V (IEC) and 250 V (CSA/UL). It uses four gold-plated solder cup contacts in a 4‑position layout, suitable for low-to-mid power control and sensing lines in rugged environments.
Yes. The connector features IP68 sealing, UV resistance, and resistance to mineral oil, gasoline, and various chemical baths. Operating temperature spans -40 °C to 105 °C, and the unit remains reliable under vibration (10–2000 Hz) and long-term outdoor exposure, making it ideal for outdoor automation and mobile equipment.
The UTS68E4SW is supplied without a backshell. For full environmental protection and cable strain relief, order a compatible backshell or mounting accessory separately. This approach lets you tailor the cable diameter, enclosure interface, and sealing to your specific installation, reducing integration risk and overall cost.
Industries with harsh environments, such as outdoor automation, industrial machinery, and sensing/control networks, benefit most. The four-socket, gold-plated contacts with IP68/69K sealing provide reliable operation under dust, water, and vibration. The robust temperature range, long mating life, and compact 8‑shell design support durable, maintenance-friendly deployments.
