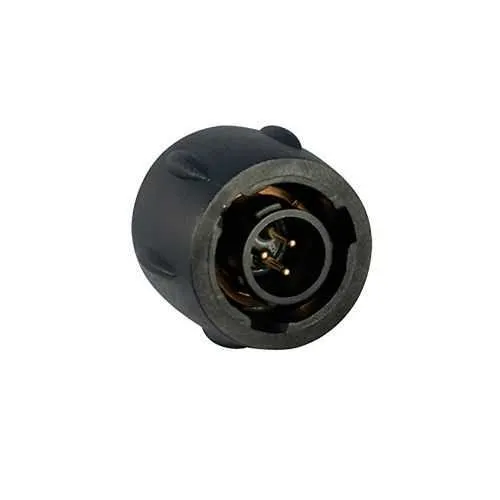

Eaton UTS68E98PW Plastic Waterproof Connector - IP68/69K
Part Number: UTS68E98PW
Quick Summary
The Eaton Souriau UTS68E98PW is a plastic waterproof IP68/69K connector engineered for rugged industrial equipment and outdoor applications. When seals fail or ingress occurs, costly downtime and maintenance follow. This design aligns with IEC 61984, UL 1977, and CSA-C22.2 No.182.3, with RoHS exemption 6.c, delivering regulatory assurance and durable performance. Its compact straight plug with W orientation and gold-plated solder contacts simplifies field installation, reducing complexity during panel wiring and harness assembly. For procurement teams, the reliability and long service life translate into lower maintenance costs and fewer spare parts in demanding environments.
Product Information
Extended Description
UTS68E98PW Eaton: Plastic plug, without backshell, with 3 male solder contacts, IP68/69K in unmated conditions, keying W; UTS68E98PW
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS68E98PW
Product Length/Depth
21.3 mm
Product Height
22.4 mm
Product Width
22.4 mm
Product Weight
6.8 g
Compliances
ROHS exemption 6.c IEC 61984 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details) UL 1977 (please contact us for more details)
Current rating
7 A UL 7 A IEC
Environmental conditions
Flammability rating UL94 HB REACH RoHS
Environmental resistance
Resistant against basic bath Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against acid bath Resistant against gasoline Resistant against oil UV resistant, no degradation after 5 years of exposure in natural environment Resistant against mineral oil
Test current
7 A CSA 7 A UL 7 A IEC
Test voltage
250 V UL 50 V IEC 250 V CSA
Connector accessory option
Not delivered, to be ordered separately
Connector orientation
W
Connector type
Plug
Contact delivery
Loaded
Contact gender
Pin (Male)
Contact plating
Gold
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Neoprene
Layout
98
Plug type
Straight Plug
Shell material
Plastic
Shell size
8
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
3
Number of cavity #20
3
Salt spray
500 hour
Feature: IP68/69K rated plastic plug with 3 solder contacts and 1/3 bayonet coupling. Business Impact: Delivers superior ingress protection and secure mating under vibration, lowering failure rates in harsh environments. Application: Robotic arms, outdoor machinery, and mobile equipment benefit from dependable seals. Feature: 7 A current rating and 250 V test voltage with gold-plated solder cup contacts. Business Impact: Supports reliable power delivery to sensors and actuators while maintaining signal integrity, enabling precise control and reduced overheating. Application: Industrial automation, CNC machinery, and process equipment. Feature: Compact dimensions (21.3 mm L × 22.4 mm W × 22.4 mm H) and a lightweight 6.8 g housing. Business Impact: Enables space-saving harness design and easier retrofit on compact installations, cutting enclosure footprint and material costs. Application: Space-constrained panels and compact robotics. Feature: 250 mating cycles and a neoprene insert with UV and chemical resistance. Business Impact: Extends lifecycle, reduces maintenance downtime, and lowers total cost of ownership in demanding environments. Application: Marine, automotive testing rigs, and outdoor control cabinets. Feature: RoHS exemption 6.c, IEC 61984, UL 1977, and CSA-C22.2 No.182.3 certifications. Business Impact: Ensures regulatory compliance and procurement confidence across global supply chains. Application: Any regulated industrial application requiring formal certification and traceability.
Get a Quick Quote for a Eaton UTS68E98PW
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS68E98PW?
Enquire Now
FAQs
When installing the UTS68E98PW, note that the connector is a straight plug with W orientation and 1/3 bayonet coupling, and the catalog indicates no backshell is included. The connector accessory option is not delivered and must be ordered separately, so plan for a matching receptacle, mounting hardware, and any required sealing gaskets to ensure IP68/69K integrity in the final assembly.
Yes. The device is specified as a 3-contact solder cup plug with a 1/3 bayonet coupling. The contact arrangement uses gold-plated male pins and a neoprene insert, designed to maintain a reliable seal and electrical contact under vibration. This configuration supports straightforward harness integration and repeatable mating in standard industrial layouts.
The UTS68E98PW carries IEC 61984, UL 1977, and CSA-C22.2 No.182.3 compliance, along with RoHS exemption 6.c. These certifications support regulatory acceptance for industrial equipment across many regions, simplify supplier qualification, and help ensure traceability during audits and compliance reviews.
Absolutely. The connector supports an operating temperature range from -40 °C to 105 °C, with UV resistance and chemical/radiation exposure resistance. It is rated IP68 and IP69K in unmated conditions, making it suitable for outdoor installations, automotive testing, and equipment exposed to dust, water jets, and mineral oils.
The UTS68E98PW offers a mating cycle life of up to 250 cycles and a robust neoprene insert for environmental sealing. For maintenance, inspect seals and contacts during routine preventive maintenance, replacebackshell components if needed, and ensure mating surfaces stay clean to preserve IP ratings and electrical performance over time.
