Eaton UTS68E98PX Plastic Waterproof Connector - IP68/69K
Part Number: UTS68E98PX
Quick Summary
Eaton UTS68E98PX is a plastic waterproof IP68/69K connector for rugged field electrical connections. This rugged interface helps keep critical signals and power secure in harsh environments. Engineers often confront moisture ingress, corrosion, and unreliable mating in outdoor or mobile equipment. It aligns with IEC 61984, UL 1977, and CSA-C22.2 No.182.3 with ROHS exemption 6.c, providing regulatory assurance. By offering a compact, sealed solution with 3 conductors, it supports fast installations, reduced maintenance, and longer service life for automation panels, robotics, and field devices. The result is lower downtime, predictable performance, and simpler supplier management in demanding industrial settings.
Product Information
Extended Description

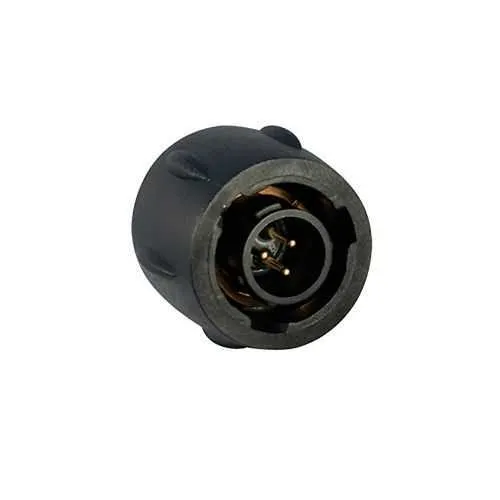

UTS68E98PX Eaton: Plastic plug, without backshell, with 3 male solder contacts, IP68/69K in unmated conditions, keying X; UTS68E98PX
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS68E98PX
Product Length/Depth
21.3 mm
Product Height
22.4 mm
Product Width
22.4 mm
Product Weight
6.8 g
Compliances
IEC 61984 (please contact us for more details) ROHS exemption 6.c CSA-C22.2 No.182.3 (please contact us for more details) UL 1977 (please contact us for more details)
Current rating
7 A IEC 7 A UL
Environmental conditions
REACH Flammability rating UL94 HB RoHS
Environmental resistance
Resistant against acid bath UV resistant, no degradation after 5 years of exposure in natural environment Resistant against gasoline Resistant against basic bath Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against oil Resistant against mineral oil
Test current
7 A CSA 7 A IEC 7 A UL
Test voltage
50 V IEC 250 V CSA 250 V UL
Connector accessory option
Not delivered, to be ordered separately
Connector orientation
X
Connector type
Plug
Contact delivery
Loaded
Contact gender
Pin (Male)
Contact plating
Gold
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Neoprene
Layout
98
Plug type
Straight Plug
Shell material
Plastic
Shell size
8
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
3
Number of cavity #20
3
Salt spray
500 hour
IP68/IP69K sealing and rugged plastic shell protect 3-socket connections from dust, water, and chemicals, reducing failure risk in outdoor or wash-down environments. Business impact: enhanced reliability and uptime; Application: outdoor machinery, forklifts, and mobile automation. The 7 A current rating and 50–250 V range cover common sensors and actuators, enabling safe, standards-compliant power and signal distribution with minimal adapters. Business impact: fewer parts and faster designs; Application: control panels and automation equipment. The 1/3 bayonet coupling enables quick mating/demating, improving maintenance speed and reducing tool requirements. Business impact: lower service labor costs; Application: line upgrades and field service. Insert material is neoprene with gold-plated solder cups and a 3-pin layout (Layout 98), supporting reliable solder connections and corrosion resistance. Business impact: improved contact integrity and longevity; Application: servo drives, PLCs, and I/O blocks. With 250 mating cycles and operation from -40 to 105 °C, it delivers consistent performance in extreme temperatures. Business impact: predictable long-term operation; Application: automotive, industrial automation, and harsh environments. While backshell is not included by default, the option to order accessories separately allows tailored mounting and protection aligned with panel layouts. Orientation isX for consistent alignment and quick integration into existing harnesses. Business impact: smoother installation and reduced design risk; Application: wiring harnesses and modular assemblies.
Get a Quick Quote for a Eaton UTS68E98PX
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS68E98PX?
Enquire Now
FAQs
To install, locate the 3-pin plug in the designated orientation (X). Ensure mating with the corresponding receptacle, and if a backshell is required, order separately. Confirm IP68 environmental protection is maintained after installation by properly seating the plug and using appropriate strain relief. The 1/3 bayonet coupling allows quick, tool-light mating, reducing downtime during panel assembly or service.
The connector supports 7 A current rating and a test voltage up to 50 V IEC and 250 V CSA/UL. It has 3 conductors with gold-plated solder cups for robust, corrosion-resistant connections. This makes it suitable for sensors, actuators, and low- to mid-power devices in automation systems while maintaining regulatory compliance.
Yes. The unit is designed for harsh environments with IP68 sealing and UV resistance, plus resistance to oils, acids, basic baths, and gasoline. Its Neoprene insert and plastic shell provide robust protection against ingress, while maintaining performance across the operating temperature range from -40 °C to 105 °C.
The connector aligns with IEC 61984, UL 1977, and CSA-C22.2 No.182.3, with ROHS exemption 6.c. These certifications support regulatory compliance for electrical safety and environmental standards in many industrial markets, making it suitable for certified automation equipment and compliant field deployments.
Backshells and certain mounting accessories are not delivered with the UTS68E98PX and must be ordered separately. It uses a 1/3 bayonet coupling and an X orientation, enabling flexible integration into existing harnesses and ensuring proper protection with the desired accessory kit for panel or enclosure mounting.
