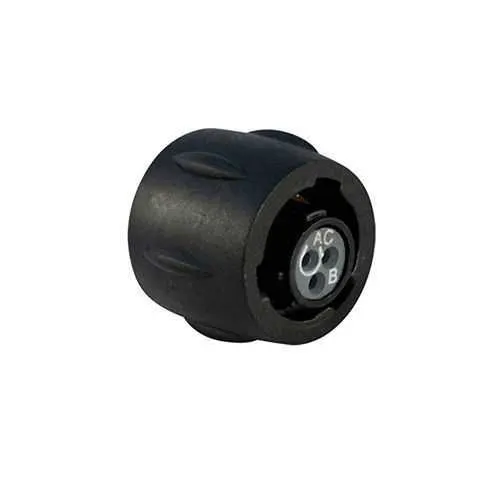

Eaton UTS68E98S Plastic Waterproof Connector - IP68/69K
Part Number: UTS68E98S
Quick Summary
The Eaton Souriau UTS68E98S plastic waterproof IP68/69K plug connects sensors and actuators in harsh industrial environments. Moisture ingress and cable wear routinely cause downtime in outdoor or washdown settings; this connector is designed to mitigate that risk. It complies with IEC 61984, UL 1977, and CSA-C22.2 No.182.3, while delivering IP68/IP69K sealing for unmated conditions. As part of the Souriau UTS series, it combines compact form with robust performance, enabling reliable automation panel wiring and field installations. Use this rugged plug to simplify maintenance, improve uptime, and reduce lifecycle costs in demanding environments.
Product Information
Extended Description
UTS68E98S Eaton: Plastic plug, without backshell, with 3 female solder contacts, IP68/69K in unmated conditions; UTS68E98S
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS68E98S
Product Length/Depth
21.3 mm
Product Height
22.4 mm
Product Width
22.4 mm
Product Weight
7.8 g
Compliances
ROHS exemption 6.c IEC 61984 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details) UL 1977 (please contact us for more details)
Current rating
7 A IEC 7 A UL
Environmental conditions
REACH RoHS Flammability rating UL94 HB
Environmental resistance
Resistant against oil UV resistant, no degradation after 5 years of exposure in natural environment Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against acid bath Resistant against mineral oil Resistant against gasoline Resistant against basic bath
Test current
7 A CSA 7 A UL 7 A IEC
Test voltage
250 V UL 250 V CSA 50 V IEC
Connector accessory option
Not delivered, to be ordered separately
Connector orientation
N
Connector type
Plug
Contact delivery
Loaded
Contact gender
Socket (Female)
Contact plating
Gold
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Neoprene
Layout
98
Plug type
Straight Plug
Shell material
Plastic
Shell size
8
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
3
Number of cavity #20
3
Salt spray
500 hour
IP68/69K sealing in unmated conditions keeps moisture and particulates out of signal and power lines, reducing ingress-related failures and maintenance downtime in outdoor and washdown environments. This translates to longer service intervals and lower total cost of ownership for equipment like conveyors and robotic cells. The 3 gold-plated solder cup contacts deliver low contact resistance and high reliability for sensor and IO wiring, supporting stable control signals in challenging conditions and enabling faster repairs with standard solder methods. The 1/3 Bayonet coupling provides quick, secure mating with excellent vibration resistance, minimizing rework during commissioning and field servicing in automotive and heavy industries. Rated for 7 A at up to 250 V, it supports common automation circuits without oversizing harnesses, improving panel density and reducing harness complexity. Its operating temperature range of -40 °C to 105 °C, oil and UV resistance, plus neoprene insert, ensure consistent performance across climate extremes and oily environments. With 250 mating cycles, the connector supports frequent disconnect/reconnect cycles typical in serviceable machinery, delivering long-term reliability for maintenance-intensive applications. The compact shell (plastic, size 8) and 98-layout align with existing UTS system installations, ensuring compatibility with current harnesses and minimizing integration risk for upgrades and expansion projects.
Get a Quick Quote for a Eaton UTS68E98S
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS68E98S?
Enquire Now
FAQs
To install, align the connector orientation to the N mark, mate the plug and socket halves, and rotate the bayonet coupling until it clicks securely. The 1/3 bayonet design provides quick, vibration-resistant engagement suitable for conveyors and robotic cells. Ensure the mating faces are clean and free of debris to maintain IP68 integrity.
The UTS68E98S is rated for 7 A per IEC and UL standards, with a test current of 7 A and a test voltage of up to 250 V (UL/CSA) and 50 V (IEC). It uses gold-plated solder cup contacts for reliable connections and supports straight plug mating for straightforward harness integration in automation systems.
Yes. The connector is IP68 rated and designed for unmated IP68/69K sealing, UV resistance, and oil resistance, making it well-suited for outdoor equipment, washdown zones, and heavy-duty industrial applications where moisture and contaminants are concerns.
The UTS68E98S complies with IEC 61984, UL 1977, and CSA-C22.2 No.182.3, with ROHS exemptions noted. These certifications support safe, reliable use in industrial automation, panel assemblies, and equipment subject to regulatory compliance requirements.
The connector supports up to 250 mating cycles, which pairs well with maintenance schedules in equipment that requires periodic connector unplugging for service. Gold-plated contacts reduce wear and corrosion, while the IP68/69K sealing helps maintain performance over time, reducing replacement frequency and supporting a favorable return on investment.
