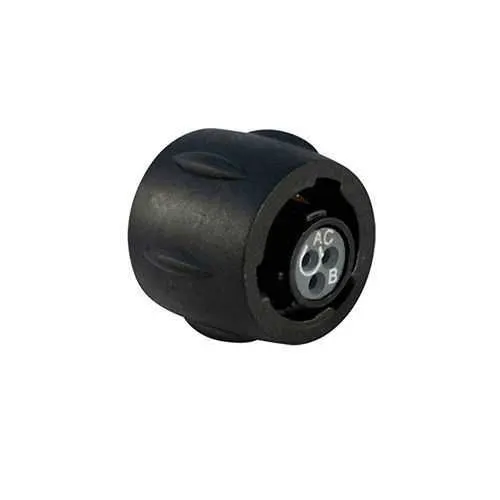

Eaton UTS68E98SW Connector - IP68/69K
Part Number: UTS68E98SW
Quick Summary
The Eaton UTS68E98SW Connector provides a rugged, waterproof plug solution for harsh industrial equipment and control panels. Ingress, corrosion, and downtime in washdown and outdoor environments are costly pain points that demand dependable sealing and easy field maintenance. It meets CSA-C22.2 No.182.3, IEC 61984, and UL 1977 certifications (with ROHS exemption 6.c), strengthening compliance for global projects. With 3 gold-plated solder contacts and a 1/3 bayonet, this IP68/69K unit offers reliable performance and installation efficiency for automation systems.
Product Information
Extended Description
UTS68E98SW Eaton: Plastic plug, without backshell, with 3 female solder contacts, IP68/69K in unmated conditions, keying W; UTS68E98SW
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS68E98SW
Product Length/Depth
21.3 mm
Product Height
22.4 mm
Product Width
22.4 mm
Product Weight
7.8 g
Compliances
CSA-C22.2 No.182.3 (please contact us for more details) IEC 61984 (please contact us for more details) UL 1977 (please contact us for more details) ROHS exemption 6.c
Current rating
7 A IEC 7 A UL
Environmental conditions
RoHS Flammability rating UL94 HB REACH
Environmental resistance
Resistant against basic bath Resistant against oil Resistant against mineral oil Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against acid bath Resistant against gasoline UV resistant, no degradation after 5 years of exposure in natural environment
Test current
7 A CSA 7 A UL 7 A IEC
Test voltage
250 V CSA 250 V UL 50 V IEC
Connector accessory option
Not delivered, to be ordered separately
Connector orientation
W
Connector type
Plug
Contact delivery
Loaded
Contact gender
Socket (Female)
Contact plating
Gold
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Neoprene
Layout
98
Plug type
Straight Plug
Shell material
Plastic
Shell size
8
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
3
Number of cavity #20
3
Salt spray
500 hour
IP68/69K sealing provides dependable ingress protection in washdown zones, reducing unplanned downtime and maintenance costs while enabling longer service intervals in harsh environments. The 3 solder cup contacts with gold plating deliver low contact resistance and corrosion resistance, supporting stable signal integrity and power delivery in critical equipment. The 1/3 bayonet coupling and W orientation simplify field assembly and retrofit, improving installation speed and reducing training requirements. Operating from -40 °C to 105 °C, the component resists thermal stress and environmental exposure, enabling reliable operation in outdoor or high-temperature settings. The neoprene insert and plastic shell balance durability with a lightweight footprint, supporting compact panel design and feed-through efficiency. With a rated 7 A and 250 mating cycles, life-cycle costs drop through fewer replacements and predictable performance in automation networks.
Get a Quick Quote for a Eaton UTS68E98SW
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS68E98SW?
Enquire Now
FAQs
The UTS68E98SW is a straight 3-pin plastic plug (socket female) from the Eaton Souriau UTS series. It uses a 1/3 bayonet coupling and a W keying orientation to ensure correct mating with a compatible receptacle. It ships with loaded contacts; backshell is not included and must be ordered separately for added protection.
It provides a 7 A current rating (CSA/UL/IEC) with a test current of 7 A and a test voltage up to 250 V for CSA/UL and 50 V for IEC. The contact material is gold plated and solder cup, designed for up to 250 mating cycles. Operating temperature ranges from -40 °C to 105 °C.
Yes. The connector carries IP68 protection in unmated conditions, and the design includes a neoprene insert and plastic shell with UV resistance. It withstands oils and mineral oil exposure, gasoline, and vibration. The unit maintains performance with UV exposure showing no degradation after five years in natural environments.
The UTS68E98SW complies with CSA-C22.2 No.182.3, IEC 61984, UL 1977, and ROHS exemption 6.c. These certifications support safety, interoperability, and environmental compliance for global automation projects. For the exact scope of each standard and regional applicability, contact us for detailed documentation.
The 7 A rating and IP68/69K sealing reduce failure modes in harsh environments, delivering longer service life and lower maintenance costs. Gold-plated contacts ensure consistent conductivity, while 250 mating cycles support durable field reliability. The compact 3-pin design simplifies cabling and panel integration, driving faster installations and predictable ROI in automation upgrades.
