Eaton UTS6GJC104SW Connector - IP68/69K Waterproof
Part Number: UTS6GJC104SW
Quick Summary
The Eaton UTS6GJC104SW connector delivers reliable waterproof electrical connections for harsh industrial environments. Engineers often wrestle with ingress, corrosion, and costly maintenance when selecting outdoor or wash-down capable connectors. This design complies with UL 1977, CSA-C22.2 No.182.3, and IEC 61984 while delivering IP68 protection for extended service life. By combining rugged materials with proven sealing, it reduces downtime and simplifies sourcing for OEMs and maintenance teams, supporting faster time-to-value in automation projects.
Product Information
Extended Description

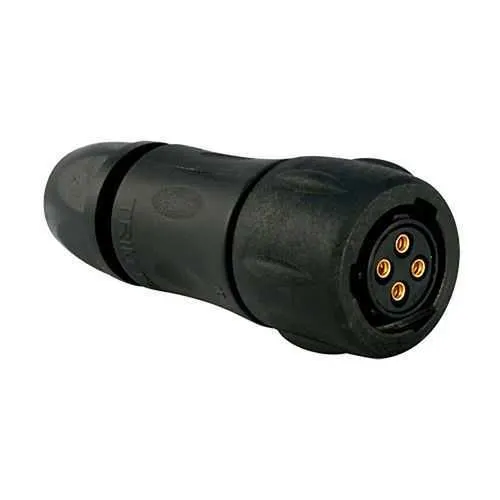

UTS6GJC104SW Eaton: Plastic plug, with cable gland and grommet backshell, for 4 female contacts, IP68/69K, keying W; UTS6GJC104SW
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6GJC104SW
Product Length/Depth
62 mm
Product Height
26.7 mm
Product Width
26.7 mm
Product Weight
22 g
Compliances
UL 1977 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details) IEC 61984 (please contact us for more details)
Current rating
13 A IEC 10 A UL
Fitted with:
First mate last break capability(optional) Last mate first break capability(optional)
Environmental conditions
REACH RoHS Fire & Smoke Fire and smoke rating I2F3 according to NFF 16101 and NFF 16102 Flammability rating UL94 V0
Environmental resistance
Resistant against mineral oil Resistant against acid bath Resistant against gasoline Resistant against basic bath Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against oil UV resistant, no degradation after 5 years of exposure in natural environment
Test current
10 A UL 7 A CSA 13 A IEC
Test voltage
500 V UL 150 V IEC 500 V CSA
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
W
Connector type
Plug
Contact delivery
Not delivered
Contact gender
Socket (Female)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Layout
4
Plug type
Straight Plug
Shell material
Plastic
Shell size
10
Cable diameter - max
8 mm
Cable diameter - min
1.5 mm
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
4
Number of cavity #16
4
Salt spray
500 hour
IP68/69K sealing and a 4-position straight plug provide robust ingress protection, minimizing field failures in wash-down and dusty environments. The sealing gland backshell and first mate/last break options simplify installation and maintenance, delivering reliable connections across tough operating cycles in mobile machinery and automated lines. With polyamide inserts, 4 crimp contacts, and a 1/3 bayonet coupling, assembly is streamlined, allowing faster field assembly and consistent mating reliability in confined enclosures. The 62 mm length and compact 26.7 x 26.7 mm shell enable tight panel routing, while a 13 A IEC / 10 A UL rating and 250 mating cycles support steady performance and predictable lifecycle costs. Rugged UV resistance and resistance to mineral oil, acids, and fuels address real-world exposure scenarios across manufacturing, agriculture, and outdoor equipment.
Get a Quick Quote for a Eaton UTS6GJC104SW
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS6GJC104SW?
Enquire Now
FAQs
The UTS6GJC104SW uses a backshell with sealing gland and a straight plug configuration. It supports 1.5 to 8 mm cable diameters and uses crimp contacts within a 4-position layout. When installing, ensure proper crimp termination, verify the 1/3 bayonet coupling engages fully, and use the supplied connector with the mating socket to achieve IP68 sealing in wash-down environments.
This connector is rated for 13 A IEC and 10 A UL currents, with a test current of 10 A UL / 7 A CSA / 13 A IEC and a test voltage of 500 V UL / 150 V IEC / 500 V CSA. These specs support safe operation in demanding automation applications, ensuring reliable power transfer while maintaining compliance across standards.
Ideal for harsh-industrial environments, wash-down areas, and outdoor equipment, including automation machinery, mobile off-road systems, agricultural machinery, and equipment requiring reliable IP68 sealing. The 4‑position connector supports compact cabling while withstanding UV exposure, oil, and basic chemical contact, extending service life in demanding settings.
The UTS6GJC104SW complies with UL 1977, CSA-C22.2 No.182.3, and IEC 61984, providing qualified performance for safety and interoperability in North American and international markets. Its IP68 rating, UV resistance, and fire-safety rating (UL94 V0) further support compliance for equipment used in harsh environments and in safety-critical applications.
With a mating lifecycle of 250 cycles, robust sealing, and resistance to oils and UV exposure, the UTS6GJC104SW reduces downtime and replacement frequency. Its compact footprint and gland-backed sealing simplify installation, lowering labor costs during maintenance and enabling more reliable, long-term connectivity in automated systems.
