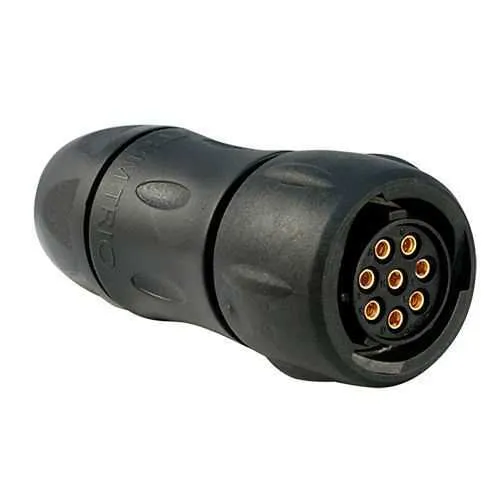

Eaton UTS6GJC128SW Plug for Harsh Environments - IP68/69K
Part Number: UTS6GJC128SW
Quick Summary
Eaton UTS6GJC128SW is a plastic waterproof IP68/69K plug designed for rugged industrial environments. When connectors fail in wet, oily, or vibrating conditions, production downtime and maintenance costs rise steeply. This design carries UL 1977, CSA-C22.2 No.182.3, and IEC 61984 certifications, with RoHS and REACH conformance to support compliance-driven projects. With 8 female contacts, a sealing backshell, and a 1/3 bayonet coupling, it delivers reliable, space-efficient connectivity for automation panels, mobile equipment, and field installations. The Souriau UTS series footprint offers compatibility alongside robust performance for harsh environments, making it a strong choice for engineers and procurement teams seeking durable electrical interfaces.
Product Information
Extended Description
UTS6GJC128SW Eaton: Plastic plug, with cable gland and grommet backshell, for 8 female contacts, IP68/69K, keying W; UTS6GJC128SW
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6GJC128SW
Product Length/Depth
65.5 mm
Product Height
29.7 mm
Product Width
29.7 mm
Product Weight
37.4 g
Compliances
UL 1977 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details) IEC 61984 (please contact us for more details)
Current rating
10 A IEC 10 A UL
Fitted with:
First mate last break capability(optional) Last mate first break capability(optional)
Environmental conditions
Flammability rating UL94 V0 Fire and smoke rating I2F3 according to NFF 16101 and NFF 16102 RoHS REACH Fire & Smoke
Environmental resistance
UV resistant, no degradation after 5 years of exposure in natural environment Resistant against oil Resistant against acid bath Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against gasoline Resistant against basic bath Resistant against mineral oil
Test current
10 A UL 7 A CSA 10 A IEC
Test voltage
80 V IEC 500 V UL 500 V CSA
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
W
Connector type
Plug
Contact delivery
Not delivered
Contact gender
Socket (Female)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Plug type
Straight Plug
Shell material
Plastic
Shell size
12
Cable diameter - max
12 mm
Cable diameter - min
3 mm
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
8
Number of cavity #16
8
Salt spray
500 hour
IP68/69K protection and sealing gland provide ingress protection against water, dust, and oil, reducing unplanned downtime and extending equipment life in outdoor, washdown, and oily environments. This level of protection translates to lower maintenance costs and greater system uptime in waste-water treatment, food & beverage processing, and outdoor robotics applications. 8-contact socket with crimp contacts delivers a high-density connection for compact equipment housings, enabling smaller panel layouts and faster assembly while maintaining reliable signal and power transfer. The 1/3 bayonet coupling simplifies mating and disconnection, improving field service speed and reducing training time for technicians working on conveyor systems and mobile machinery. 250 mating cycles and a durable polyamide insert ensure long-term reliability in vibration-intensive applications common to material handling and automation lines. Operating from -40 °C to 105 °C, UV resistant and oil/acid resistant materials provide resilience in sunlit outdoor installations and harsh manufacturing floors, while RoHS REACH compliance supports sustainability and regulatory requirements. Cable diameter range of 3 to 12 mm offers installation flexibility for various harnesses, enabling faster start-ups and standardized procurement across projects. The plug’s straight backshell and sealing gland design simplify maintenance and replacement, while compatibility with the Souriau UTS series ecosystem ensures easy integration with existing equipment. The 8-contact configuration supports scalable I/O and motor/control circuits, helping maintain efficiency as automation needs grow and system architectures evolve. Overall, the UTS6GJC128SW delivers dependable, certified connectivity with clear value in uptime, ease of installation, and regulatory compliance for industrial automation projects.
Get a Quick Quote for a Eaton UTS6GJC128SW
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS6GJC128SW?
Enquire Now
FAQs
The UTS6GJC128SW is a straight plug in the Souriau UTS series with an 8-contact female socket and crimp contacts. It uses a 1/3 bayonet coupling and seals via a gland-backed backshell, offering compatibility with standard Souriau connectors and similar IP68/69K assemblies. Cable diameters from 3 to 12 mm fit a wide range of harnesses, simplifying panel integration and field retrofit campaigns.
The connector provides a 10 A current rating (test current 10 A IEC; 10 A UL; 7 A CSA) and supports voltage up to 80 V IEC and 500 V UL/CSA. It matches demanding automation and control circuits, with mating cycles rated at 250. Expect robust signal and power transmission across typical industrial I/O and motor control applications.
Yes. The IP68 rating, UV resistance, and oil/acid resistance make this plug suitable for outdoor automation, conveyor lines, and mobile equipment. Its operating temperature range of -40 °C to 105 °C supports environmental variability, while RoHS and REACH compliance aligns with regulatory and sustainability requirements for modern plants.
The unit is UL 1977 and CSA-C22.2 No.182.3 listed, with IEC 61984 compliance. These certifications ensure electrical safety, reliability, and interoperability in North American and international markets, reducing risk in regulated projects and helping with supplier qualification, audits, and documentation for industrial procurement.
With 250 mating cycles and a sealing backshell, the UTS6GJC128SW supports long-term reliability in vibration and washdown environments, reducing maintenance intervals and replacement costs. Its compact, robust design minimizes panel space and installation time, contributing to faster line changeovers and a lower total cost of ownership for automation upgrades.
