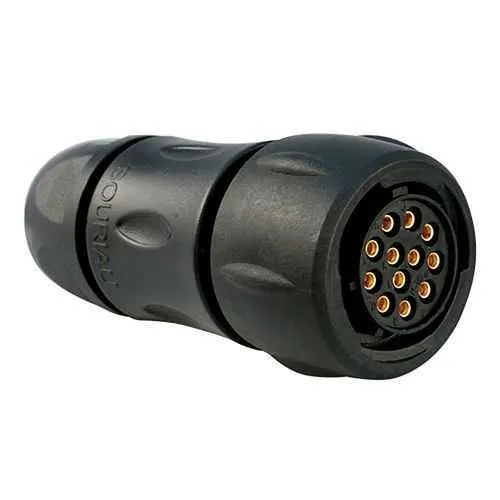

Eaton UTS6GJC1412S Connector - IP68/69K Waterproof
Part Number: UTS6GJC1412S
Quick Summary
Eaton UTS6GJC1412S is a plastic waterproof IP68/69K connector designed for rugged industrial and outdoor applications. It helps solve field install challenges where moisture, dust, and vibration threaten reliability. Certified IP68/IP69K protection with IEC 61984 compliance and UL 1977 / CSA recognition, the unit ensures safe operation in corrosive or high-vibration settings. RoHS and REACH compliance add downstream value for regulated industries, while the 12-position layout supports easy signal and power integration in control panels and mobile equipment. For procurement teams, the compact form factor and quick-connect capability reduce installation time and total cost of ownership.
Product Information
Extended Description
UTS6GJC1412S Eaton: Plastic plug, with cable gland and grommet backshell, for 12 female contacts, IP68/69K; UTS6GJC1412S
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6GJC1412S
Product Length/Depth
70 mm
Product Height
34.4 mm
Product Width
34.6 mm
Product Weight
42.6 g
Compliances
IEC 61984 (please contact us for more details) UL 1977 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details)
Current rating
10 A UL 10 A IEC
Fitted with:
Last mate first break capability(optional) First mate last break capability(optional)
Environmental conditions
Fire & Smoke RoHS Flammability rating UL94 V0 Fire and smoke rating I2F3 according to NFF 16101 and NFF 16102 REACH
Environmental resistance
Resistant against gasoline Resistant against oil Resistant against basic bath Resistant against acid bath Resistant against mineral oil Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz UV resistant, no degradation after 5 years of exposure in natural environment
Test current
10 A IEC 10 A UL 7 A CSA
Test voltage
600 V CSA 63 V IEC 600 V UL
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
N
Connector type
Plug
Contact delivery
Not delivered
Contact gender
Socket (Female)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Layout
12
Plug type
Straight Plug
Shell material
Plastic
Shell size
14
Cable diameter - max
14 mm
Cable diameter - min
5 mm
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
12
Number of cavity #16
12
Salt spray
500 hour
IP68/69K rated protection combined with a 12-position female connector delivers immediate reliability in wet, dusty, or high-vibration environments. The 10 A current rating and 600 V test voltage enable robust power and signal distribution across automation panels and mobile equipment, reducing the need for multiple discrete interfaces. Construction uses a polyamide insert with a durable plastic shell and a sealing gland backshell, enabling quick, secure field assembly with crimp contacts. The 1/3 bayonet coupling provides fast mating and strong retention, minimizing downtime during maintenance or cable reconfiguration. Designed for harsh environments, it operates from -40 to 105 °C and supports up to 250 mating cycles, aligning with typical maintenance schedules. Cable diameter range from 5 to 14 mm accommodates a variety of harnesses while preserving seal integrity. The connector ships with the accessory option delivered with connector, accelerating installation and ensuring compatibility with Souriau UTS series harnesses.
Get a Quick Quote for a Eaton UTS6GJC1412S
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS6GJC1412S?
Enquire Now
FAQs
The UTS6GJC1412S uses a 12-position layout within the Souriau UTS series, featuring a straight plug, N orientation, and a sealing gland backshell. It is designed to pair with standard crimp contacts and compatible harness assemblies, ensuring straightforward field installation and reliable sealing when paired with the appropriate Souriau backshell and gland components.
This connector provides a 10 A current rating under UL and IEC, a test voltage of up to 600 V, and 12 contact positions in a single housing. It supports up to 250 mating cycles and uses crimp contact delivery. With a 12-position layout, it can handle combined power and signal wiring in automation panels.
Yes. The connector offers IP68/IP69K protection, operates from -40 °C to 105 °C, and is UV resistant with long-term exposure stability. It is RoHS and REACH compliant and provides resistance to basic and mineral oil, gasoline, and other common industrial contaminants, making it suitable for outdoor equipment and harsh industrial settings.
The UTS6GJC1412S complies with IEC 61984, UL 1977, and CSA-C22.2 No.182.3. It also adheres to RoHS and REACH environmental requirements, supporting regulatory conformance for global OEMs and approved industrial applications.
The combination of IP68/69K sealing, high mating cycle rating, and quick-connect bayonet coupling reduces field maintenance time and downtime. Its compact 12-pin design minimizes wiring complexity, while robust environmental resistance lowers replacement and warranty costs, improving lifecycle reliability and total cost of ownership for automation projects.
