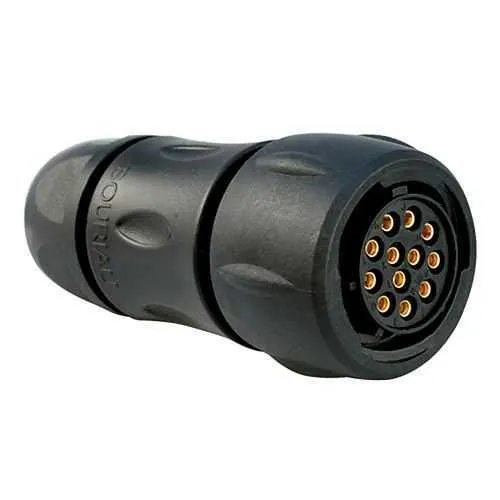

Eaton UTS6GJC1492S UTS plastic waterproof IP68/69k connector
Part Number: UTS6GJC1492S
Quick Summary
The Eaton Souriau UTS series plastic waterproof IP68/69k connector provides rugged power and signal coupling for harsh industrial environments. Operators and maintenance teams need dependable seals and quick field installation to minimize downtime in vibration, oil exposure, and temperature swings. This design complies with UL 1977, CSA-C22.2 No.182.3, and IEC 61984, supporting safety and interoperability across global panels. With 12 contact positions and a compact 70 mm length, it offers a clean, cost-effective solution for control cabinets and mobile equipment.
Product Information
Extended Description
UTS6GJC1492S Eaton: Plastic plug, with cable gland and grommet backshell, for 12 female contacts, IP68/69K; UTS6GJC1492S
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6GJC1492S
Product Length/Depth
70 mm
Product Height
34.4 mm
Product Width
34.6 mm
Product Weight
42.8 g
Compliances
UL 1977 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details) IEC 61984 (please contact us for more details)
Current rating
10 A IEC 10 A UL
Environmental conditions
REACH RoHS Fire and smoke rating I2F3 according to NFF 16101 and NFF 16102 Fire & Smoke Flammability rating UL94 V0
Environmental resistance
Resistant against gasoline Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz UV resistant, no degradation after 5 years of exposure in natural environment Resistant against oil Resistant against mineral oil Resistant against basic bath Resistant against acid bath
Test current
7 A CSA 10 A UL 10 A IEC
Test voltage
600 V CSA 63 V IEC 600 V UL
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
N
Connector type
Plug
Contact delivery
Not delivered
Contact gender
Socket (Female)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Layout
92
Plug type
Straight Plug
Shell material
Plastic
Shell size
14
Cable diameter - max
14 mm
Cable diameter - min
5 mm
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
12
Number of cavity #16
12
Salt spray
500 hour
Feature: IP68/IP69k protection and sealing gland backshell provide robust ingress resistance in wet, dusty, and washdown environments. Benefit: Reduces contamination-related failures and extends service intervals, lowering maintenance costs. Application: Outdoor machinery, mobile equipment, and heavy-industrial automation where washdowns are frequent. Feature: 12 female contacts arranged in a 12-cavity layout supports direct sensor/actuator mating without adapters. Benefit: Simplifies wiring schemes, improves reliability, and lowers assembly time in control panels. Application: Robotics, packaging lines, and conveyor systems requiring compact, multi-pin connections. Feature: 70 mm length with plastic shell and polyamide insert offers a lightweight yet sturdy interface. Benefit: Easier enclosure routing and faster field replacement, reducing downtime during maintenance windows. Application: Mobile machines and rugged automation enclosures where space is at a premium. Feature: Cable diameter range from 5 to 14 mm and a straight backplug with a 1/3 bayonet coupling. Benefit: Flexible cable options and rapid mating/demating, decreasing labor time and error risk during installation. Application: Machinery panels, splash-prone areas, and field-installed harnesses. Feature: Operating temperature from -40 °C to 105 °C and UV/oil/gas/oil resistance. Benefit: Maintains performance across variable climates and exposure conditions, ensuring long-term reliability. Application: Offshore equipment, mining sites, and automotive assembly lines. Feature: Mating cycles rated at 250 and 10 A / 600 V electrical ratings. Benefit: Predictable lifecycle performance and safe operation for power and signal in demanding applications. Application: Industrial controls, automation cabinets, and heavy-duty sensors.
Get a Quick Quote for a Eaton UTS6GJC1492S
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS6GJC1492S?
Enquire Now
FAQs
Begin by selecting a compatible mating connector and ensuring the cable diameter falls within the 5 to 14 mm range. Install the cable gland and grommet in the backshell, prepare the conductors for crimping into the 12 female contacts, and finalize with the 1/3 bayonet coupling for a secure, IP68/69k-sealed connection. Verify ingress protection after assembly with a tension test and inspection for proper sealing.
The connector provides a 10 A current rating, supports up to 600 V, and is rated for 7 A in test conditions. It uses 12 female crimp contacts, with a mating cycle life of about 250 cycles. These ratings enable reliable power and signal transfer in automation cabinets and field equipment while maintaining safety margins.
Yes. It carries IP68 protection (and IP69K sealing), with backshell sealing gland and UV/oil/oil resistant materials. This makes it well-suited for outdoor installations, washdown zones, and machinery exposed to oil, fuel, and fluctuating temperatures, reducing the risk of water ingress and contact corrosion.
Key certifications include UL 1977, CSA-C22.2 No.182.3, and IEC 61984. These standards support safety, interoperability, and compliance for industrial control panels and equipment used in diverse global markets.
The combination of 250 mating cycles, 12-position 12-contact configuration, and 10 A / 600 V capability reduces wiring complexity, minimizes maintenance downtime, and lowers total cost of ownership. Its compact form, quick mating, and robust seals translate into faster panel assembly and longer service intervals in demanding environments.
