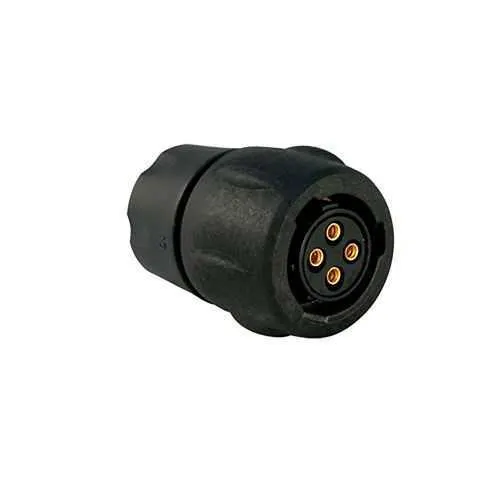

Eaton UTS6GN104SW Plastic Waterproof Connector - IP68/69K
Part Number: UTS6GN104SW
Quick Summary
Eaton UTS6GN104SW plastic waterproof IP68/69K connector provides a rugged plug solution for harsh outdoor equipment. Engineers often struggle with moisture ingress and field reliability in mobile machinery and outdoor deployments. The UTS6GN104SW is IP68/69K protected and compliant with IEC 61984, UL 1977, and CSA-C22.2 No.182.3, delivering robust sealing and safe operation. Its 4-contact, straight plug design and modular backshell simplify installations, while the compact form factor supports lightweight, field-ready assemblies and reduced downtime. Designed for environments from -40 to 105 C and up to 250 mating cycles, it pairs with compatible Souriau UTS backshells and harnesses. This translates to lower installation costs, faster maintenance, and improved uptime for critical automation systems.
Product Information
Extended Description
UTS6GN104SW Eaton: Plastic plug, with nut and grommet backshell, for 4 female contacts, IP68/69K, keying W; UTS6GN104SW
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6GN104SW
Product Length/Depth
32.5 mm
Product Height
26.7 mm
Product Width
26.7 mm
Product Weight
14.4 g
Compliances
IEC 61984 (please contact us for more details) UL 1977 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details)
Current rating
10 A UL 13 A IEC
Fitted with:
First mate last break capability(optional) Last mate first break capability(optional)
Environmental conditions
RoHS Flammability rating UL94 V0 REACH Fire & Smoke Fire and smoke rating I2F3 according to NFF 16101 and NFF 16102
Environmental resistance
Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against gasoline Resistant against basic bath Resistant against oil UV resistant, no degradation after 5 years of exposure in natural environment Resistant against mineral oil Resistant against acid bath
Test current
13 A IEC 10 A UL 7 A CSA
Test voltage
500 V CSA 500 V UL 150 V IEC
Backshell angle
Straight
Backshell type
Single wire Backshell
Connector accessory option
Delivered with connector
Connector orientation
W
Connector type
Plug
Contact delivery
Not delivered
Contact gender
Socket (Female)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Layout
4
Plug type
Straight Plug
Shell material
Plastic
Shell size
10
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
4
Number of cavity #16
4
Salt spray
500 hour
Feature: IP68/IP69K rated plastic waterproof construction. Benefit: Protects signal and power integrity in harsh environments, reducing moisture-related failures and extension of service intervals. Application: Outdoor automation, wind turbines, mobile equipment. The sealed plug delivers reliability in vibration-prone settings and supports long-term field operation. Feature: 4-position straight plug with 1/3 bayonet coupling. Benefit: Fast, secure mating with repeatable connections, minimizing downtime during maintenance and swaps. Application: Field service and assembly lines where quick connectivity matters. Feature: Fitted with a backshell and nut/grommet backshell option. Benefit: Simplified installation and seal integrity at harness interfaces, improving water ingress protection and EMI/EMC performance. Application: Harsh environment harness assemblies in industrial plants. Feature: Rugged electrical ratings and materials. Benefit: 10 A UL and 13 A IEC current capability with up to 500 V test voltage ensures safe power delivery; polyamide insert and plastic shell resist chemical exposure and UV, enabling long life in outdoor use. Application: Industrial machinery, automated conveyors, and remote sensors. Feature: Operating range and durability. Benefit: -40 to 105 C and up to 250 mating cycles provide dependable performance across temperature swings and repeated mating cycles, reducing maintenance costs. Application: Off-road equipment, agricultural machinery, and remote automation nodes.
Get a Quick Quote for a Eaton UTS6GN104SW
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS6GN104SW?
Enquire Now
FAQs
Install by aligning the 4 contact cavities with the mating connector, then engage the 1/3 bayonet coupling until a positive click is felt. Use the nut and grommet backshell if additional sealing is required at the entry point; the straight backshell option is designed for straightforward field assemblies and helps maintain IP68 protection after installation.
The connector supports 10 A per UL and 13 A per IEC, with a test voltage of 500 V. It tolerates -40 to 105 C and offers IP68 sealing with UV and chemical resistance, including RoHS and REACH compliance, making it suitable for outdoor and industrial automation deployments.
Yes. Its IP68/69K rating, 4-contact configuration, and 250 mating cycles are tailored for outdoor automation, wind turbines, and mobile equipment, delivering reliable power and signal connections even under vibration, moisture, and temperature fluctuations.
Compliances include IEC 61984, UL 1977, and CSA-C22.2 No.182.3, with RoHS and REACH declarations. These certifications support regulatory compliance for industrial and electrical installations in North America and Europe.
The combination of durable plastics, corrosion resistance, and a robust mating cycle count reduces maintenance intervals and field failures. Its quick-mating bayonet coupling minimizes downtime during swaps, contributing to lower total cost of ownership in harsh environments.
