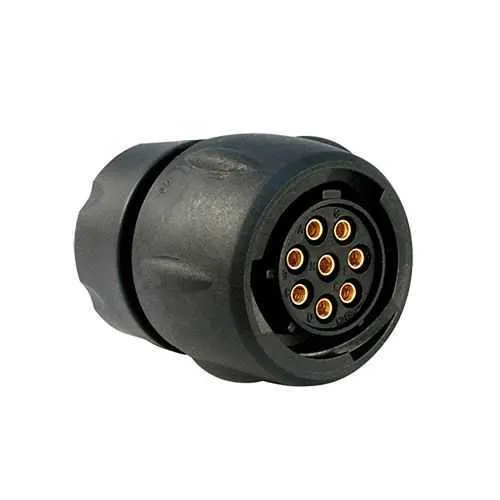

Eaton UTS6GN128S UTS connector - IP68/69K plastic
Part Number: UTS6GN128S
Quick Summary
Eaton Souriau UTS6GN128S is a plastic waterproof IP68/69K connector designed for rugged, sealed electrical connections in harsh environments. Engineers often grapple with moisture ingress, vibration, and maintenance delays when equipment operates in washdowns, outdoors, or oily surroundings. This design carries UL 1977, CSA-C22.2 No. 182.3, and IEC 61984 compliances, plus IP68 sealing and UV-resistant materials to survive years of service. With 8 crimp contacts, a compact 32.3 mm depth, and a straightforward backshell, it reduces installation time and inventory while improving reliability. Designed for industry use, it supports a 10 A current rating and operates from -40 to 105 °C, making it suitable for automation, robotics, and outdoor equipment. Its straight plug and bayonet coupling enable quick assembly in tight spaces.
Product Information
Extended Description
UTS6GN128S Eaton: Plastic plug, with nut and grommet backshell, for 8 female contacts, IP68/69K; UTS6GN128S
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6GN128S
Product Length/Depth
32.3 mm
Product Height
29.7 mm
Product Width
29.7 mm
Product Weight
24.6 g
Compliances
CSA-C22.2 No.182.3 (please contact us for more details) UL 1977 (please contact us for more details) IEC 61984 (please contact us for more details)
Current rating
10 A IEC 10 A UL
Fitted with:
First mate last break capability(optional) Last mate first break capability(optional)
Environmental conditions
Fire & Smoke REACH Flammability rating UL94 V0 RoHS Fire and smoke rating I2F3 according to NFF 16101 and NFF 16102
Environmental resistance
UV resistant, no degradation after 5 years of exposure in natural environment Resistant against oil Resistant against basic bath Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against gasoline Resistant against mineral oil Resistant against acid bath
Test current
7 A CSA 10 A IEC 10 A UL
Test voltage
500 V CSA 500 V UL 80 V IEC
Backshell angle
Straight
Backshell type
Single wire Backshell
Connector accessory option
Delivered with connector
Connector orientation
N
Connector type
Plug
Contact delivery
Not delivered
Contact gender
Socket (Female)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Plug type
Straight Plug
Shell material
Plastic
Shell size
12
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
8
Number of cavity #16
8
Salt spray
500 hour
Feature IP68/69K sealing provides robust protection against water, dust, and oil, reducing field failures and service calls. Business Impact This translates to lower downtime and longer equipment life in washdown environments and outdoor installations. Application Ideal for automation cabinets, packaging lines, and outdoor machinery where reliability under moisture exposure is critical. Feature Eight female crimp contacts in a compact 32.3 mm depth enable a high-density, eight-position plug connection with minimal footprint. Business Impact This improves harness density and simplifies assembly, reducing material costs and labor time. Application Use in control panels and sub-assemblies where space is at a premium. Feature 1/3 bayonet coupling with straight plug allows rapid mating and secure retention even in tight spaces. Business Impact Speeds field wiring and maintenance while ensuring consistent electrical performance. Application Typical in robotics, conveyor systems, and mobile equipment that require fast, repeatable connections. Feature -40 °C to 105 °C operating range and 250 mating cycles demonstrate durability in extreme industrial conditions. Business Impact Extends service life in harsh climates and high-vibration environments, lowering replacement frequency and total cost of ownership. Application Suitable for offshore, mining, and automotive-related equipment exposed to temperature swings. Feature 10 A current rating and 500 V test voltage support reliable power delivery for medium-load circuits. Business Impact Enables safe, compliant performance across automation tasks without overdesign. Application Ideal for motor feeders, sensor/actuator circuits, and control wiring. Feature UV resistance, oil resistance, and salt spray durability (500 hours) ensure long-term viability in outdoor or industrial washdown settings. Business Impact Reduces maintenance intervals and improves uptime in harsh facilities. Application Critical for outdoor SCADA, wind/solar attachment equipment, and harsh manufacturing floors. Feature Polyamide insert and plastic shell deliver light weight and corrosion resistance with strong mechanical integrity. Business Impact Supports easier handling and installation while meeting RoHS and flammability requirements. Application Suitable for high-vibration environments and long-term field use in automation gear.
Get a Quick Quote for a Eaton UTS6GN128S
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS6GN128S?
Enquire Now
FAQs
Begin by confirming the connector orientation is N, align the straight plug, and engage via the 1/3 bayonet coupling for a secure seal. Use the included backshell with proper crimp contacts to terminate eight conductors, then tighten the backshell nut to preserve IP68 protection. Verify mating integrity and perform a simple continuity check after installation to ensure reliable performance in harsh environments.
The UTS6GN128S supports up to 10 A and 500 V, with a test current of 7 A and a mating capability of 250 cycles. It operates from -40 °C to 105 °C, providing robust power handling for automation and control circuits. With eight contacts and an IP68 rating, it maintains signal and power integrity in challenging environments.
Yes. The unit is supplied as a plug with a backshell option designed for crimp contacts. It uses a single-wire backshell and offers delivery with the connector, enabling straightforward field installation. The 1/3 bayonet coupling and straight plug simplify mating with compatible UTS series counterparts, reducing integration risk.
The connector complies with UL 1977, CSA-C22.2 No. 182.3, and IEC 61984, and features IP68 sealing for robust protection. It also aligns with RoHS and fire/smoke ratings (UL94 V0, I2F3 per NFF 16101/16102) for safe, compliant use in industrial environments and outdoor installations.
The UTS6GN128S offers long-term value with UV-resistant polyamide insert, oil and chemical resistance, and salt spray durability (500 hours). Its high mating cycle rating (250) and reliable IP68/69K sealing minimize downtime and maintenance costs, delivering lower total cost of ownership in automation, robotics, and outdoor equipment.
